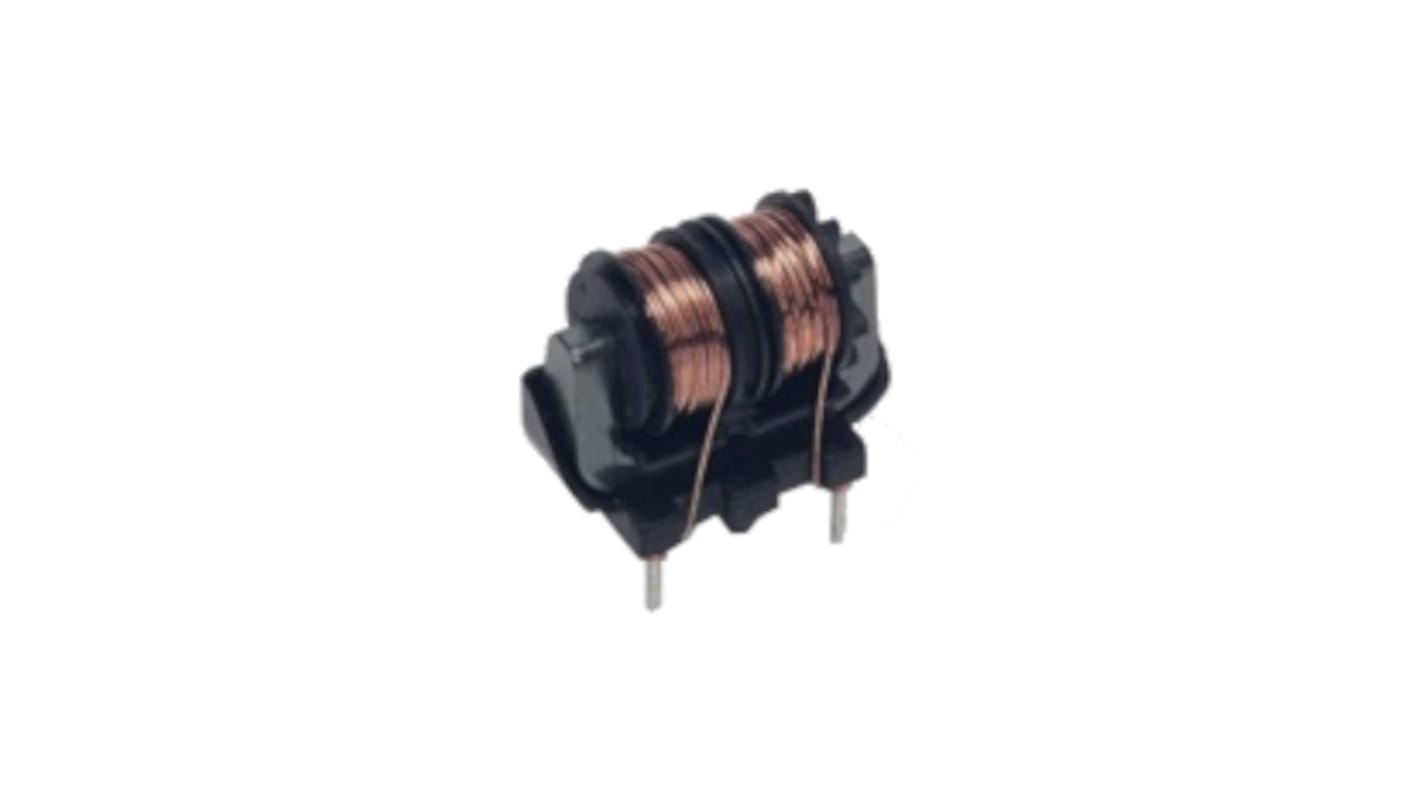

KEMET 91 mH 400 mA Common Mode Choke 2.8 Ω 250V ac
- RS Stock No.:
- 183-6491
- Mfr. Part No.:
- SSR10V-04910
- Brand:
- KEMET
Subtotal (1 tray of 100 units)*
£97.40
(exc. VAT)
£116.90
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tray* |
|---|---|---|
| 100 + | £0.974 | £97.40 |
*price indicative
- RS Stock No.:
- 183-6491
- Mfr. Part No.:
- SSR10V-04910
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 91mH | |
| Product Type | Common Mode Choke | |
| Series | SSR10V | |
| Maximum DC Current | 400mA | |
| Core Material | Manganese Zinc Ferrite | |
| Test Frequency | 10kHz | |
| Packaging | Tray | |
| Maximum Operating Temperature | 120°C | |
| Minimum Operating Temperature | -25°C | |
| Number of Lines | 2 | |
| Automotive Standard | No | |
| Choke Voltage | 250V ac | |
| Mount Type | Through Hole | |
| Maximum DC Resistance | 2.8Ω | |
| Termination Style | Solder Pad | |
| Standards/Approvals | RoHS | |
| Height | 21mm | |
| Depth | 13mm | |
| Length | 23.5mm | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 91mH | ||
Product Type Common Mode Choke | ||
Series SSR10V | ||
Maximum DC Current 400mA | ||
Core Material Manganese Zinc Ferrite | ||
Test Frequency 10kHz | ||
Packaging Tray | ||
Maximum Operating Temperature 120°C | ||
Minimum Operating Temperature -25°C | ||
Number of Lines 2 | ||
Automotive Standard No | ||
Choke Voltage 250V ac | ||
Mount Type Through Hole | ||
Maximum DC Resistance 2.8Ω | ||
Termination Style Solder Pad | ||
Standards/Approvals RoHS | ||
Height 21mm | ||
Depth 13mm | ||
Length 23.5mm | ||
- COO (Country of Origin):
- VN
The KEMET SSR coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S15H cores and are useful in various noise countermeasure fields.
Proprietary S15H ferrite material
High permeability
High impedance in wide frequency range due to divided bobbin
Compact size, low profile, and lightweight
Operating temperature range from −25°C to +120°C
Flame retardant base and bobbin
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
