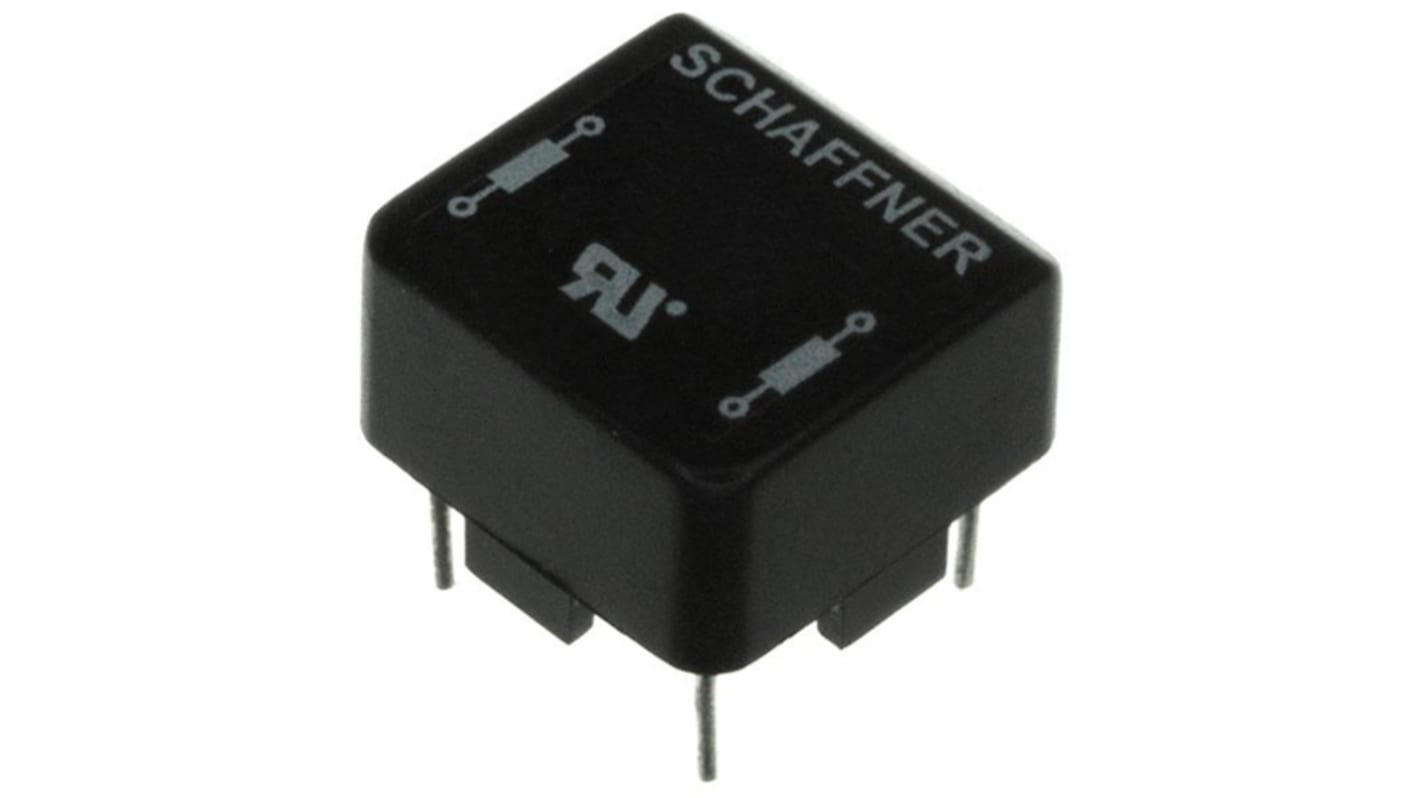

Schaffner 1.5 mH 4 A Common Mode Choke 34mΩ
- RS Stock No.:
- 133-5778
- Mfr. Part No.:
- RN214-4-02-1M5
- Brand:
- Schaffner
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 133-5778
- Mfr. Part No.:
- RN214-4-02-1M5
- Brand:
- Schaffner
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Inductance | 1.5 mH | |
| Series | RN | |
| Test Frequency | 10 KHz | |
| DC Resistance | 34mΩ | |
| Maximum Current | 4 A | |
| Dimensions | 15.5 x 23 x 25mm | |
| Operating Temperature Range | -40°C → +100°C | |
| Mounting Type | Through Hole | |
| Termination Style | Solder Pad | |
| Height | 25mm | |
| Minimum Operating Temperature | -40°C | |
| Depth | 23mm | |
| Length | 15.5mm | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Inductance 1.5 mH | ||
Series RN | ||
Test Frequency 10 KHz | ||
DC Resistance 34mΩ | ||
Maximum Current 4 A | ||
Dimensions 15.5 x 23 x 25mm | ||
Operating Temperature Range -40°C → +100°C | ||
Mounting Type Through Hole | ||
Termination Style Solder Pad | ||
Height 25mm | ||
Minimum Operating Temperature -40°C | ||
Depth 23mm | ||
Length 15.5mm | ||
Maximum Operating Temperature +100°C | ||
