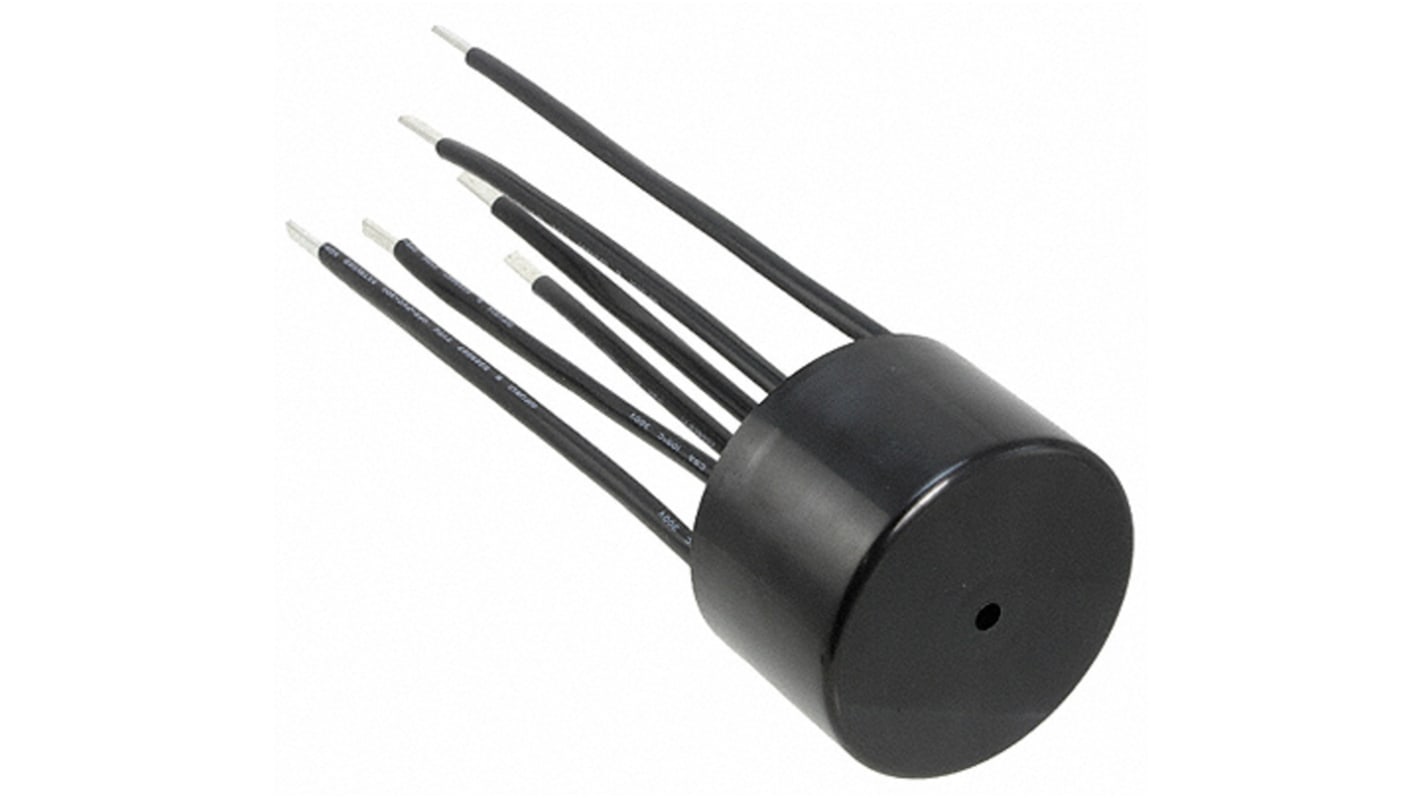

Schaffner 1.5 mH -30 → +50% Common Mode Choke, 36A Idc, 3.65mΩ Rdc 600 V ac, RD
- RS Stock No.:
- 170-5019
- Mfr. Part No.:
- RD8137-36-1M5
- Brand:
- Schaffner
Subtotal (1 box of 24 units)*
£930.72
(exc. VAT)
£1,116.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 72 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 24 + | £38.78 | £930.72 |
*price indicative
- RS Stock No.:
- 170-5019
- Mfr. Part No.:
- RD8137-36-1M5
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schaffner | |
| Inductance | 1.5 mH | |
| Maximum DC Current | 36A | |
| Mounting Type | Lead Wire | |
| Maximum DC Resistance | 3.65mΩ | |
| Tolerance | -30 → +50% | |
| Diameter | 80mm | |
| Height | 50mm | |
| Dimensions | 80 (Dia.) x 50mm | |
| Series | RD | |
| Maximum Operating Temperature | +110°C | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Wire | |
Select all | ||
|---|---|---|
Brand Schaffner | ||
Inductance 1.5 mH | ||
Maximum DC Current 36A | ||
Mounting Type Lead Wire | ||
Maximum DC Resistance 3.65mΩ | ||
Tolerance -30 → +50% | ||
Diameter 80mm | ||
Height 50mm | ||
Dimensions 80 (Dia.) x 50mm | ||
Series RD | ||
Maximum Operating Temperature +110°C | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Wire | ||
Schaffner RD Series Common Mode Chokes
The RD series of chokes from Schaffner are attenuating common-mode or asymmetric (P/N ->E) interference signals, by being
connected in series with the phase and neutral lines of an AC powerline input. The Symmetrical of the noise are also attenuated due to the leakage inductance of the windings.
connected in series with the phase and neutral lines of an AC powerline input. The Symmetrical of the noise are also attenuated due to the leakage inductance of the windings.
6A to 64A current ratings
Dual, Triple and Quad choke configurations
Dual, Triple and Quad choke configurations
Applications
Filter networks
Decoupling tasks
Low power switch mode regulators
Decoupling tasks
Low power switch mode regulators
Schaffner Leaded Inductors (Chokes)
