TE Connectivity BNC Series, Jack Panel Mount BNC Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 821-2488
- Mfr. Part No.:
- 5225398-1
- Brand:
- TE Connectivity
Save 17% when you buy 50 units
Subtotal (1 unit)*
£22.38
(exc. VAT)
£26.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £22.38 |
10 - 24 | £20.15 |
25 - 49 | £19.02 |
50 + | £18.43 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£14.70
(exc. VAT)
£17.64
(inc. VAT)
- RS Stock No.:
- 821-2488
- Mfr. Part No.:
- 5225398-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Gender | Female | |
Coaxial Connector Type | BNC Connector | |
Mounting Type | Panel Mount | |
Impedance | 50Ω | |
Termination Method | Crimp | |
Body Orientation | Straight | |
Cable Type | RG58 A/U, RG58 B/U, RG58 C/U, RG58/U | |
Bulkhead | Yes | |
Body Plating | Nickel | |
Series | BNC | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
Coaxial Connector Type BNC Connector | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type RG58 A/U, RG58 B/U, RG58 C/U, RG58/U | ||
Bulkhead Yes | ||
Body Plating Nickel | ||
Series BNC | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||

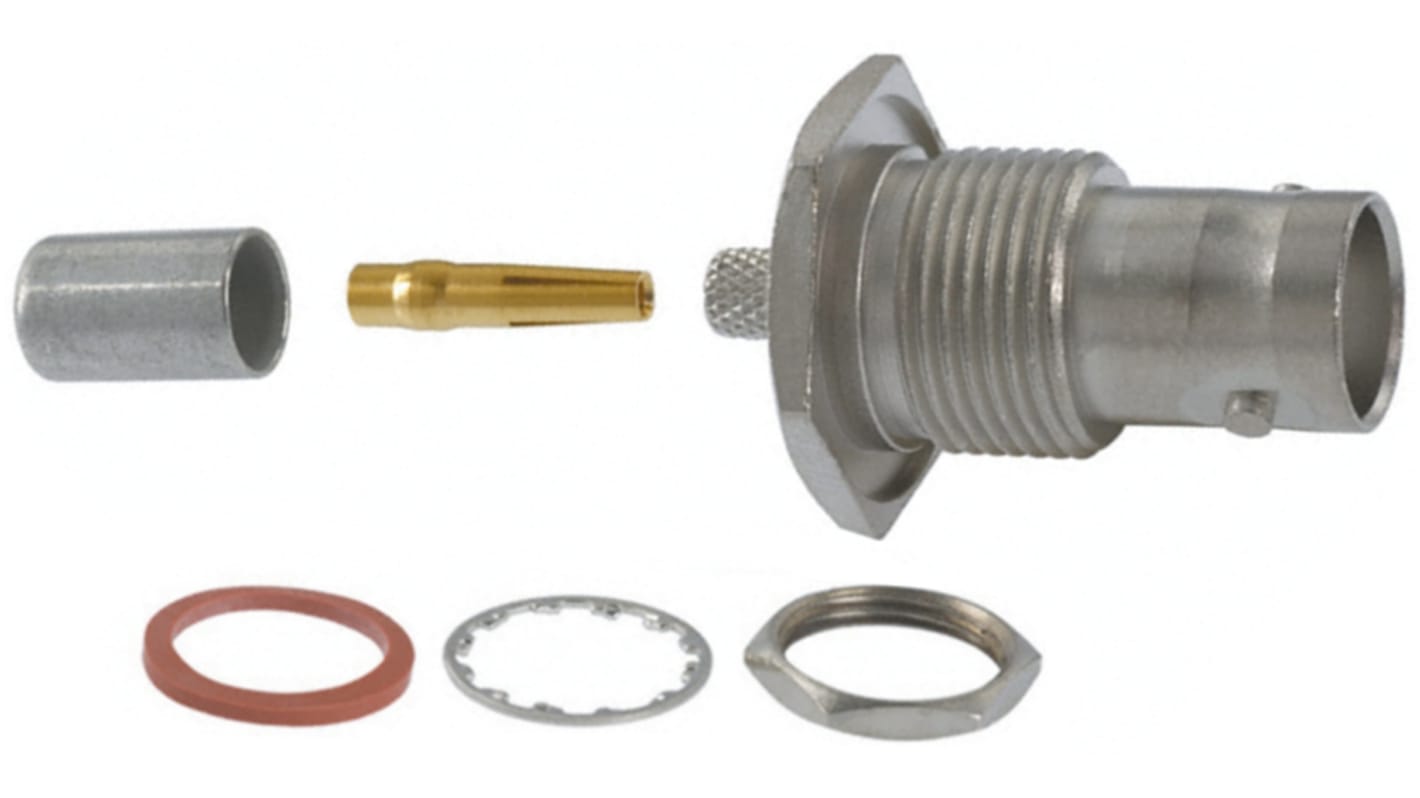

TE Connectivity 50 Ohm MIL Spec RF coaxial BNC Bulkhead Jacks
50 Ohm MIL Spec RF coaxial BNC bulkhead jacks with bayonet locking and O crimp terminations to provide insulation grip and eliminate the need for soldering. These 50 Ohm MIL Spec RF coax BNC bulkhead jacks have a nickel plated body with a TEFLON dielectric , gold plated centre contact and are suitable for use with a variety of RF coaxial cables. Supplied with a jam nut, lock washer and gasket.
TE Connectivity BNC RF Coaxial Connectors
