TE Connectivity BNC Series, jack Cable Mount, 50Ω, Crimp Termination, Straight Body

RS Stock No.:: 821-2614
Mfr. Part No.:: 5413771-1
Brand:: TE Connectivity

TE Connectivity BNC Series, jack Cable Mount, 50Ω, Crimp Termination, Straight Body

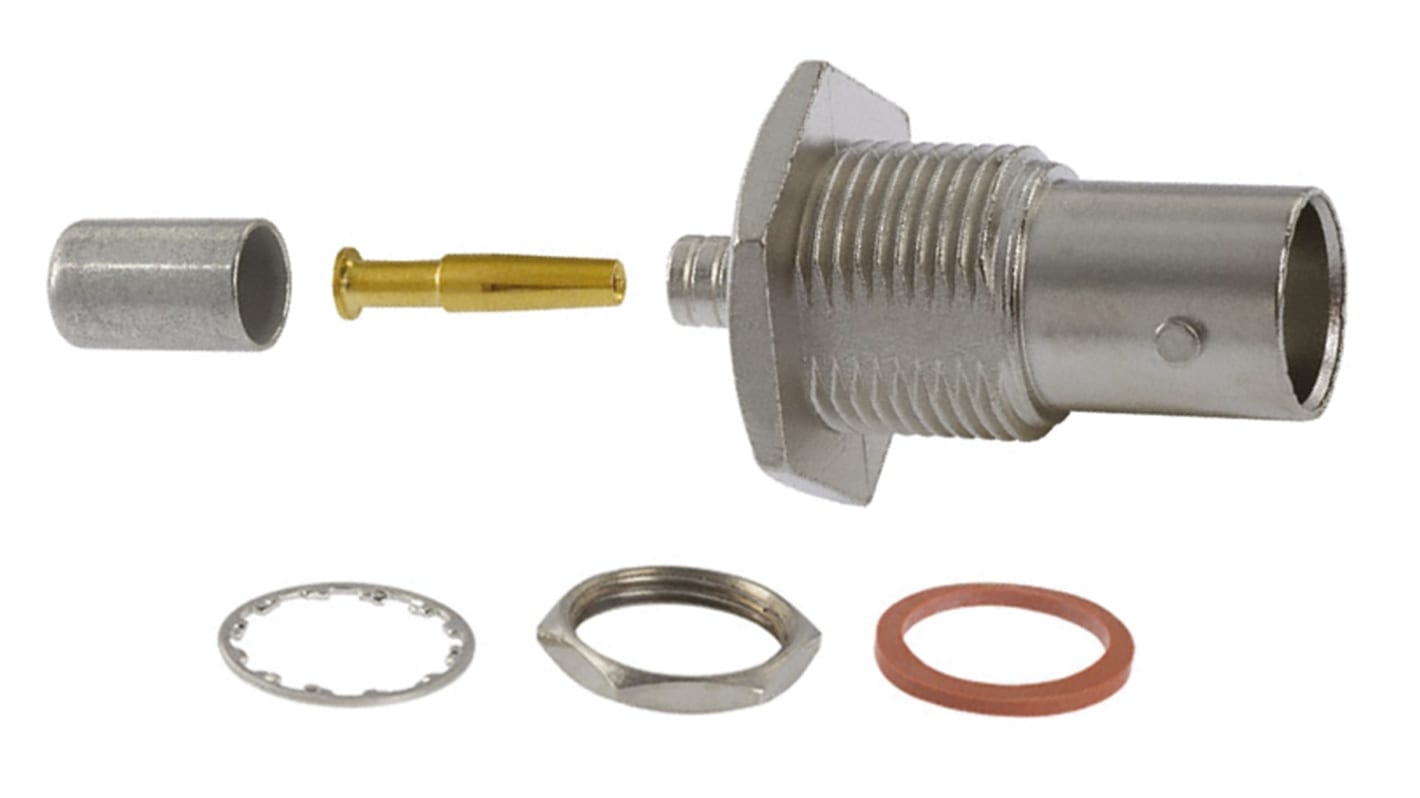

Image representative of range

View this category

Discontinued product

RS Stock No.:: 821-2614
Mfr. Part No.:: 5413771-1
Brand:: TE Connectivity

Technical Reference

50 Ohm RF Coaxial BNC Bulkhead Crimp Jack

Legislation and Compliance

COO (Country of Origin):: MX

Product Details

TE Connectivity 50 Ohm RF Coaxial BNC Connectors - Bulkhead Crimp Jack

50 ohm RF coaxial BNC bulkhead rear panel mount crimp jack connectors with a nickel plated brass body and gold plated brass contact. These 50 ohm RF coaxial BNC bulkhead jack connectors have dual crimp terminations apart from stock numbers 680-7462 , 821-2484 and 821-2614 which have a hex crimp, and are suitable for use with a variety of RF coaxial cables. All BNC connectors are supplied with jam nut, lockwasher and gasket.

TE Connectivity BNC RF Coaxial Connectors

Specifications

Attribute	Value
Gender	Female
Mounting Type	Cable Mount
Impedance	50Ω
Termination Method	Crimp
Body Orientation	Straight
Cable Type	BELDEN 88240, RG58 A/U, RG58 B/U, RG58 C/U, RG58/U
Bulkhead	Yes
Body Plating	Nickel
Series	BNC
Contact Material	Beryllium Copper
Contact Plating	Gold
