TE Connectivity 227726 Series, jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body

RS Stock No.:: 820-7644
Mfr. Part No.:: 227726-1
Brand:: TE Connectivity

TE Connectivity 227726 Series, jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body

View this category

Discontinued product

RS Stock No.:: 820-7644
Mfr. Part No.:: 227726-1
Brand:: TE Connectivity

Technical Reference

Legislation and Compliance

Product Details

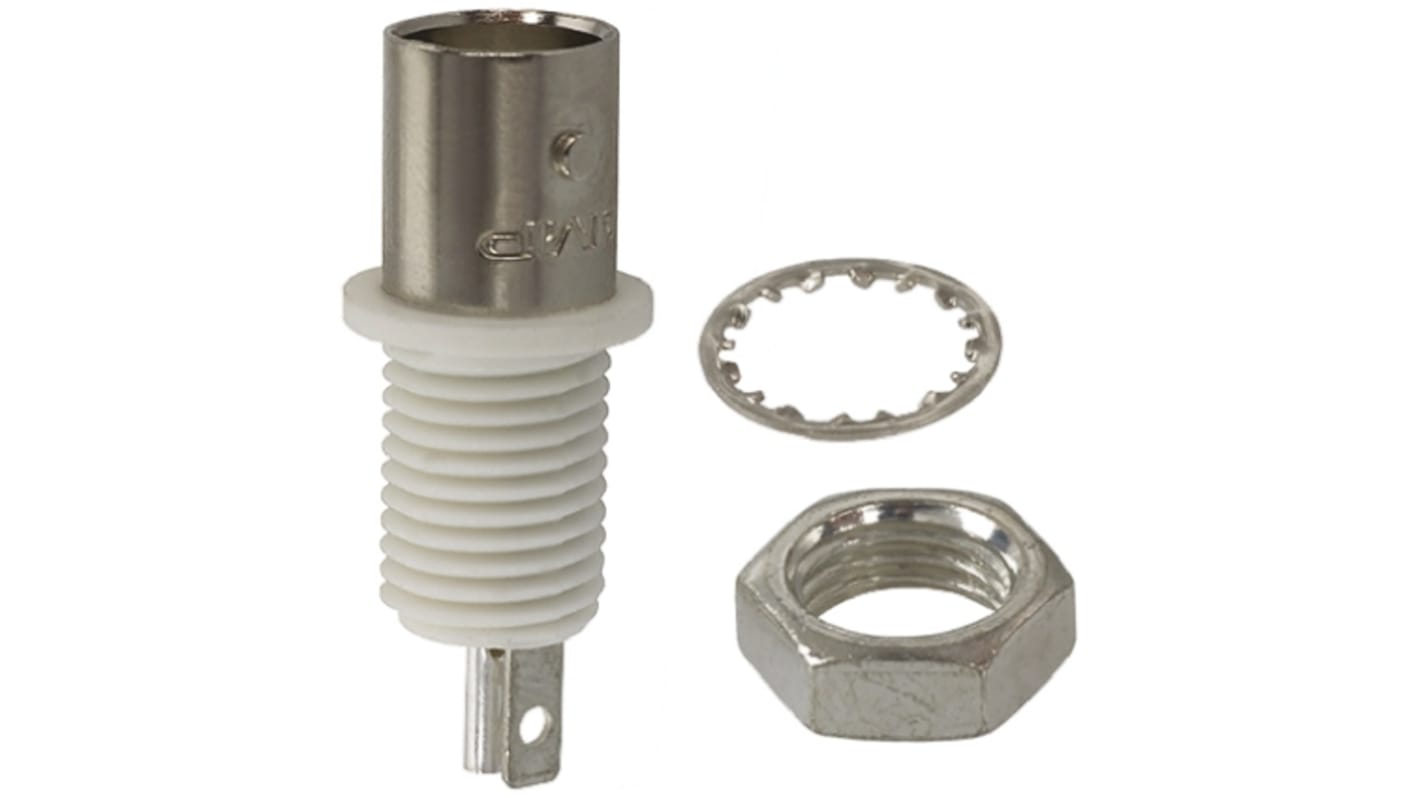

TE Connectivity 50 Ohm RF Coaxial BNC Connectors - Bulkhead Solder Jacks

50 Ohm RF coaxial BNC bulkhead solder jack connectors with bayonet locking. These 50 Ohm RF coax BNC panel mount bulkhead jacks have a nickel plated body, gold contacts, a choice of dielectric material and are supplied with or without solder terminals. For details please see Additional Data Table
Stock number 745-5069 is a sealed bulkhead solder jack
Stock number 820-7644 is an isolated bulkhead solder jack with a tin plated centre contact
A bushing is available separately, see stock number 782-7596

TE Connectivity BNC RF Coaxial Connectors

Specifications

Attribute	Value
Gender	Female
Coaxial Connector Type	BNC Connector
Mounting Type	Panel Mount
Impedance	50Ω
Termination Method	Solder
Body Orientation	Straight
Bulkhead	Yes
Body Plating	Nickel
Polarity	Normal
Series	227726
Contact Material	Phosphor Bronze
Contact Plating	Tin
