    Molex 50 Ohm SMA RF Coaxial PCB Jack Connectors


    50 Ohm SMA RF coaxial PCB mount Jack Receptacles with a teflon dielectric, gold plated centre contact and brass body with Gold plating except 800-6918 and 800-6936 which have Nickel plated bodies.
    These SMA RF coaxial PCB mount Jack Receptacles features are:
    759-5293 PCB and Panel mount, supplied with a jam nut and lock washer.
    759-5299 Edge mount, 1.6 mm thick PCB, length from PCB edge is 9.53 mm.
    759-5252 Right Angle, Through Hole
    800-6918 Right Angle, Through Hole Nickel plated
    800-6961 Edge Mount, 1.6 mm thick PCB, length from PCB edge is 12.7 mm.
    759-5303 Vertical, Through Hole
    800-6933 Vertical, SMT
    800-6949 Edge and Bulkhead mount (no hardware)
    800-6936 Right Angle, PCB and Bulkhead mount, Nickel plated
    841-1827 Right Angle, PCB mount, Through Hole
    800-6986 Jack to Jack Bulkhead Adapter

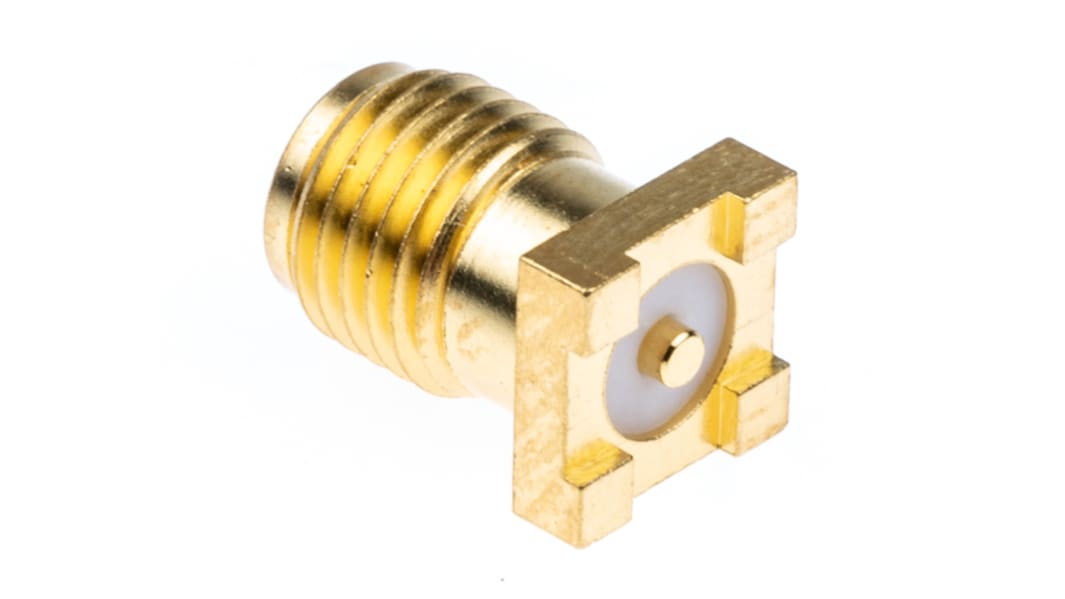

    Molex Straight Female SMA Connector Jack, 50Ω Impedance, Solder Termination - 73251 Series - 73251-1352


    Easily plug in SMA (SubMiniature version A) coaxial cables to your printed circuit boards (PCBs) with this hardwearing connector jack from Molex. It has a brass body that's durable and impact-resistant, so you can use it in harsh environments. To make reliable connections, it has a gold-plated beryllium copper contact that's highly conductive and resistant to rust and corrosion. This component's Teflon insulator protects you against electric shocks, making it a safe choice for use in heavy-duty environments.

    • Low impedance of 50Ω to allow for fast signal transmission
    • Low-profile design with a total length of 9.53mm for use in tight spaces
    • Surface mounting technology (SMT) for mechanical stability and vibration resistance
    • Solder termination method for a secure, air-tight connection that won't deteriorate easily

    Applications


    • Radio broadcasting stations
    • Telecommunications antennae
    • Local area networks (LAN)

    What's meant by 'SMT'?


    SMT (surface-mount technology) is a mounting method that's used to install components directly on the surface of a PCB. Unlike the older through-hole mounting technology (THT), it doesn't call for drilling of the circuit board, so it's simpler to carry out.


    Molex SMA RF Coaxial Connectors


    The Molex range of high- performance SMA RF Coaxial subminiature Connectors are suitable for microwave frequencies. The SMA design of threaded couplings gives uniform contact of the outer conductors to reduce reflections and attenuation at higher frequencies. High mechanical strength and durability are also ensured by the threaded SMA design.

    Specifications

    AttributeValue
    Coaxial Connector TypeSMA Connector
    GenderFemale
    Mounting TypeSurface Mount
    Impedance50Ω
    Termination MethodSolder
    Body OrientationStraight
    SizeSubminiature
    BulkheadNo
    Operating Frequency18GHz
    Body PlatingGold
    SeriesSMA
    Contact MaterialBeryllium Copper
    Contact PlatingGold
    Series Number73251
