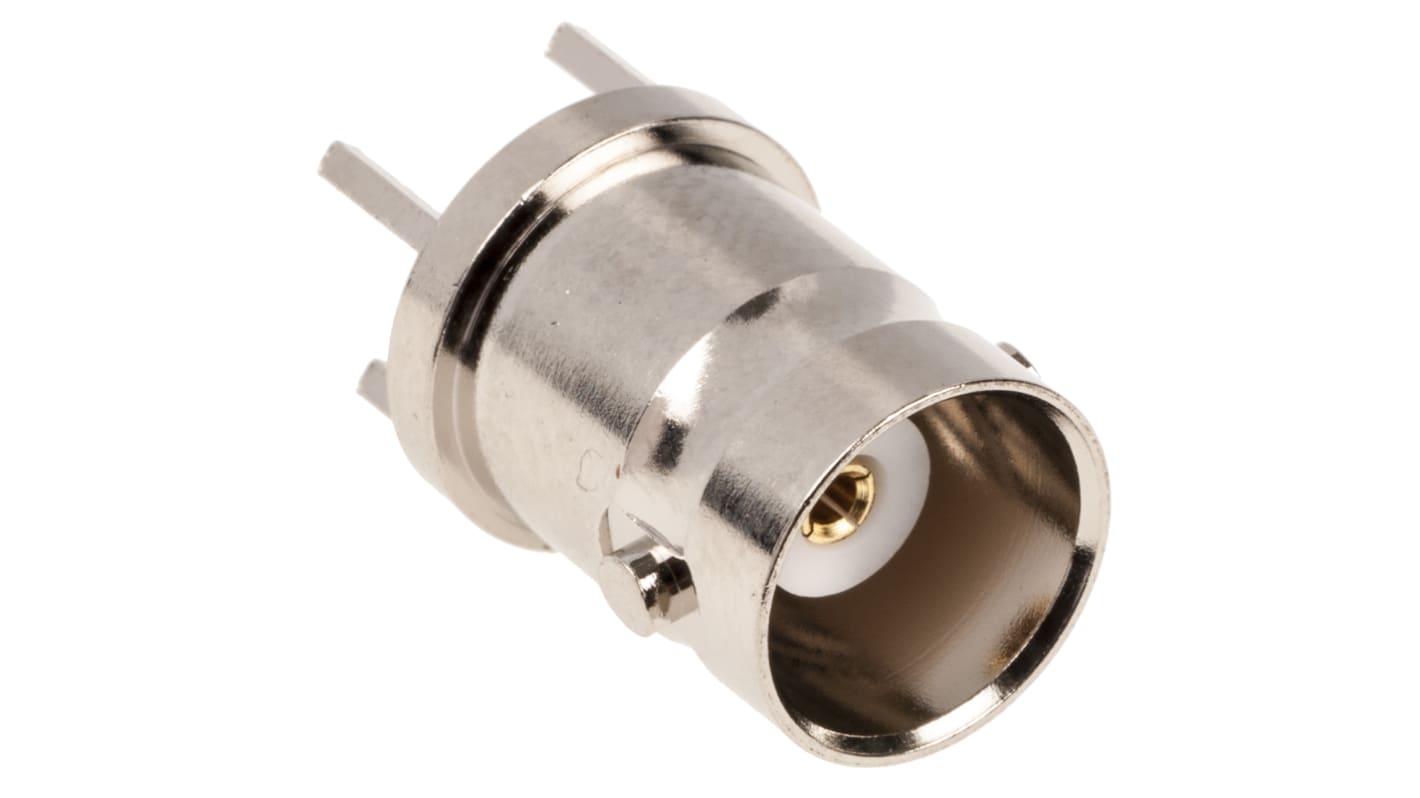

TE Connectivity Greenpar Series, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Straight Body

RS Stock No.:: 680-7456
Mfr. Part No.:: 1-1337535-0
Brand:: TE Connectivity

TE Connectivity Greenpar Series, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Straight Body

View this category

Discontinued product

RS Stock No.:: 680-7456
Mfr. Part No.:: 1-1337535-0
Brand:: TE Connectivity

Technical Reference

BNC,strt,jack,crimp,50ohm,PCB mount

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

TE Connectivity 50 Ohm BNC Connectors - Professional Grade Vertical PCB Mount Jacks

Vertical PCB mount 50 Ohm Professional Grade BNC jacks with a PTFE dielectric and solder terminals.
Stock number 394-1049 has a silver plated circular body and silver contact
Stock number 394-1055 has a silver plated square body and silver contact
Stock number 680-7456 has a nickel plated circular body and gold contact

TE Connectivity BNC RF Coaxial Connectors

Specifications

Attribute	Value
Gender	Female
Coaxial Connector Type	BNC Connector
Mounting Type	PCB Mount
Impedance	50Ω
Termination Method	Through Hole
Body Orientation	Straight
Bulkhead	No
Operating Frequency	0 to 4GHz
Minimum Operating Temperature	-65°C
Body Plating	Nickel
Maximum Operating Temperature	+165°C
Series	Greenpar
Contact Material	Brass
Contact Plating	Gold
