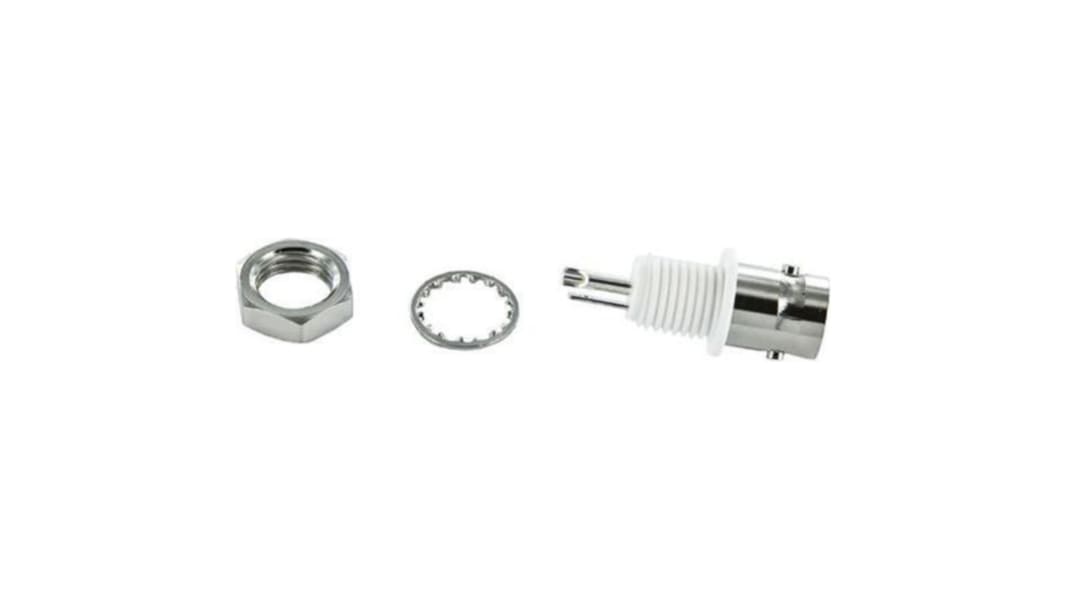

TE Connectivity Greenpar Series Coaxial Connector Panel Mount Female BNC, 75 Ω, Straight Body Solder
- RS Stock No.:
- 394-0670
- Mfr. Part No.:
- 1-1478201-0
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 394-0670
- Mfr. Part No.:
- 1-1478201-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | BNC | |
| Mount Type | Panel Mount | |
| Impedance | 75Ω | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 2GHz | |
| Body Plating | Nickel | |
| Minimum Operating Temperature | -65°C | |
| Polarity | Normal | |
| Maximum Operating Temperature | 85°C | |
| Termination Type | Solder | |
| Series | Greenpar | |
| Contact Gender | Female | |
| Contact Material | Brass | |
| Standards/Approvals | No | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type BNC | ||
Mount Type Panel Mount | ||
Impedance 75Ω | ||
Orientation Straight | ||
Connector Gender Female | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 2GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -65°C | ||
Polarity Normal | ||
Maximum Operating Temperature 85°C | ||
Termination Type Solder | ||
Series Greenpar | ||
Contact Gender Female | ||
Contact Material Brass | ||
Standards/Approvals No | ||
Contact Plating Silver | ||
TE Connectivity 75 Ohm BNC Connectors - Professional Grade Bulkhead Solder Jack
75 Ohm Professional Grade BNC front mount bulkhead solder jack with ABS dielectric, solder terminal, nickel plated body and silver center contact. This 75 Ohm Professional Grade BNC bulkhead solder jack uses a panel cut out of 8.9 x 9.6mm and is for use with a panel thickness of 1.52mm.
TE Connectivity BNC RF Coaxial Connectors
