Radiall BNC Series, Jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 295-7920
- Mfr. Part No.:
- R141572000W
- Brand:
- Radiall
Bulk discount available
Subtotal (1 unit)*
£19.66
(exc. VAT)
£23.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 599 unit(s) ready to ship
- Plus 140 unit(s) ready to ship from another location
- Plus 500 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £19.66 |
10 - 49 | £17.76 |
50 - 99 | £15.94 |
100 - 249 | £15.41 |
250 + | £14.53 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.46
(exc. VAT)
£5.35
(inc. VAT)
- RS Stock No.:
- 295-7920
- Mfr. Part No.:
- R141572000W
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Radiall | |
Coaxial Connector Type | BNC Connector | |
Gender | Female | |
Mounting Type | Panel Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Bulkhead | Yes | |
Operating Frequency | 0 to 4GHz | |
Body Plating | Nickel | |
Minimum Operating Temperature | -65°C | |
Maximum Operating Temperature | +165°C | |
Series | BNC | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand Radiall | ||
Coaxial Connector Type BNC Connector | ||
Gender Female | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Bulkhead Yes | ||
Operating Frequency 0 to 4GHz | ||
Body Plating Nickel | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +165°C | ||
Series BNC | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||

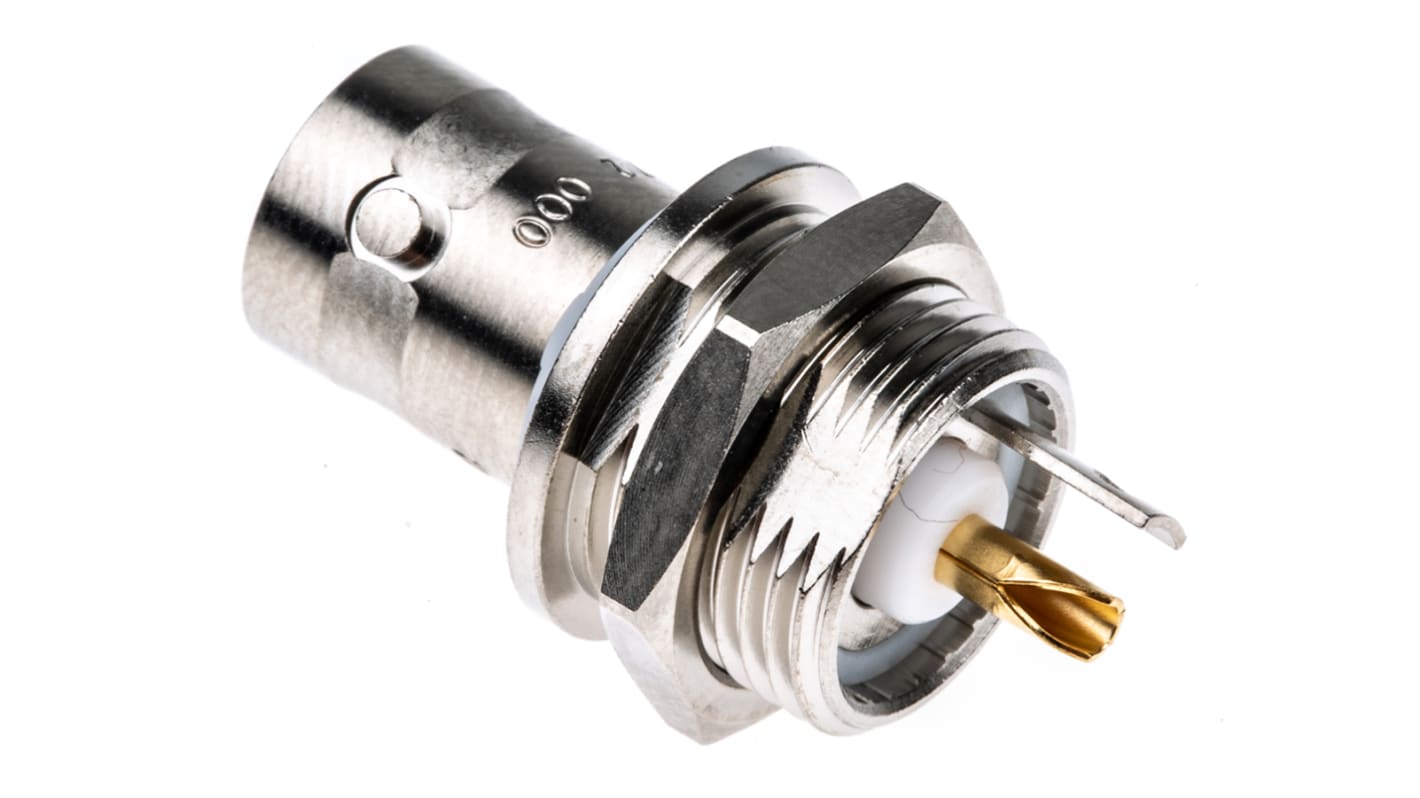

Radiall 50 Ohm BNC RF Coaxial Bulkhead Jack Receptacle Connector
50 Ohm BNC bulkhead mount RF coaxial jack receptacle connector with a bayonet fitting, solder pot contact termination and solder tag. This 50 Ohm RF coax bulkhead / panel mount jack receptacle connector is front panel mounting and has a nickel plated body and gold plated centre contact.



Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
