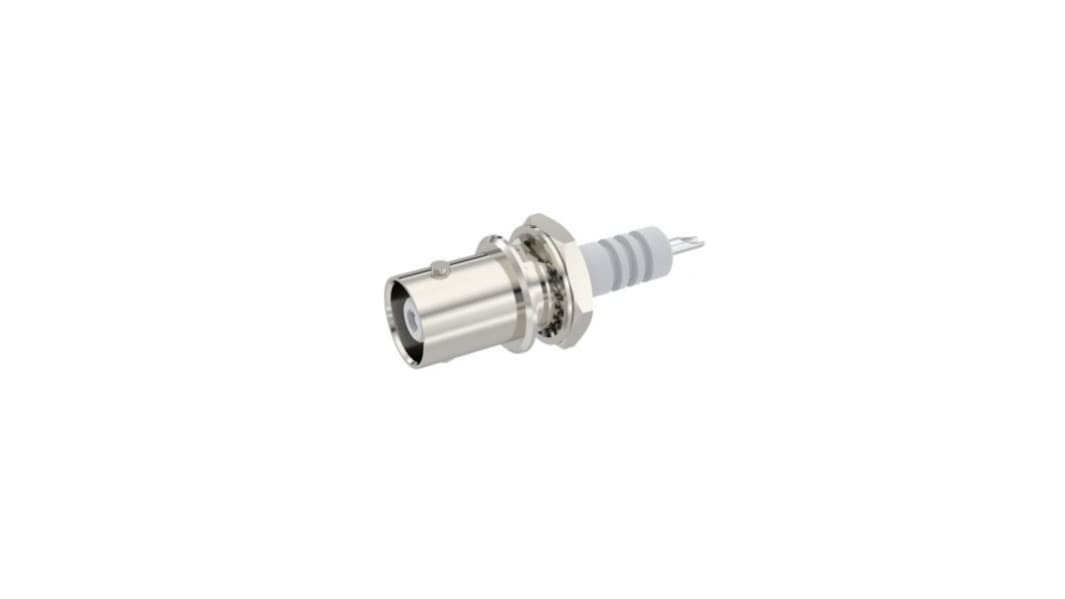

Radiall BNC Series, Jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 190-3336
- Mfr. Part No.:
- R316553000
- Brand:
- Radiall
Subtotal (1 box of 100 units)*
£1,549.00
(exc. VAT)
£1,859.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,700 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
100 + | £15.49 | £1,549.00 |
*price indicative
- RS Stock No.:
- 190-3336
- Mfr. Part No.:
- R316553000
- Brand:
- Radiall
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Radiall | |
Coaxial Connector Type | BNC Connector | |
Gender | Female | |
Mounting Type | Panel Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Bulkhead | Yes | |
Operating Frequency | 0 to 2GHz | |
Minimum Operating Temperature | -55°C | |
Body Plating | Nickel | |
Polarity | Normal | |
Maximum Operating Temperature | +155°C | |
Series | BNC | |
Contact Material | Brass | |
Contact Plating | Silver | |
Select all | ||
---|---|---|
Brand Radiall | ||
Coaxial Connector Type BNC Connector | ||
Gender Female | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Bulkhead Yes | ||
Operating Frequency 0 to 2GHz | ||
Minimum Operating Temperature -55°C | ||
Body Plating Nickel | ||
Polarity Normal | ||
Maximum Operating Temperature +155°C | ||
Series BNC | ||
Contact Material Brass | ||
Contact Plating Silver | ||
Bulkhead jack (H.V)
From Radiall, this high voltage co-axial connector is panel mounted and very durable.
Nickel plated brass bodied 50Ω connectors with PTFE insulators and beryllium copper contacts. Designed for RF and high voltage application.
