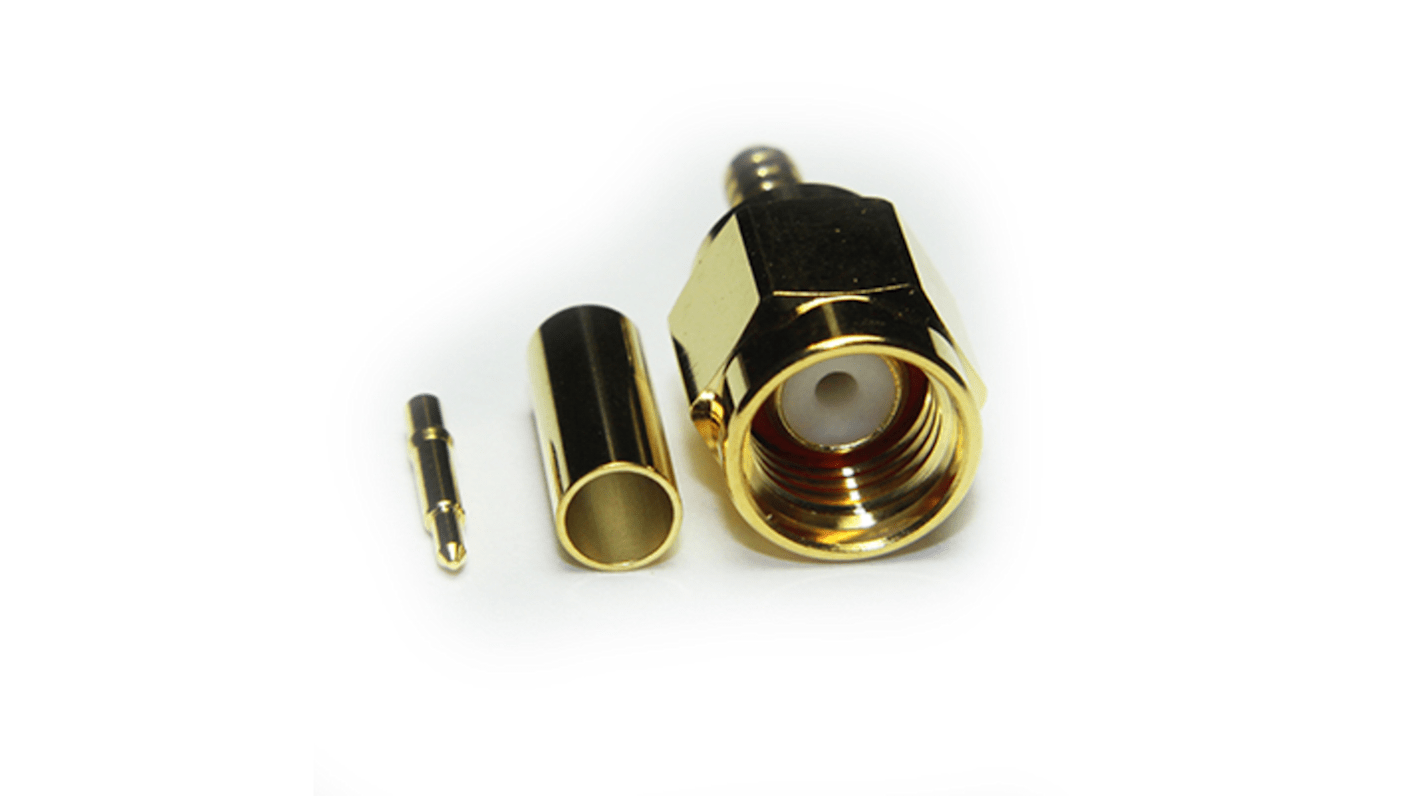

RS PRO, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 283-7144
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£25.90
(exc. VAT)
£31.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 100 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 19 | £25.90 |
20 - 49 | £25.38 |
50 + | £24.85 |
*price indicative
- RS Stock No.:
- 283-7144
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coaxial Connector Type | SMA Connector | |
Gender | Male | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Crimp | |
Body Orientation | Straight | |
Cable Type | RG142, RG223 | |
Size | Sub-Miniature | |
Bulkhead | No | |
Operating Frequency | 12.5GHz | |
Body Plating | Gold | |
Minimum Operating Temperature | -55°C | |
Polarity | Normal | |
Maximum Operating Temperature | +155°C | |
Contact Material | Brass | |
Contact Plating | Gold | |
Mating Type | Screw Coupling | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coaxial Connector Type SMA Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Straight | ||
Cable Type RG142, RG223 | ||
Size Sub-Miniature | ||
Bulkhead No | ||
Operating Frequency 12.5GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Polarity Normal | ||
Maximum Operating Temperature +155°C | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Mating Type Screw Coupling | ||
- COO (Country of Origin):
- TW
RS PRO 12.5GHz SMA Coaxial Connector Plug for RG142/ RG223 Cable (50 Ω)
An SMA (Sub-miniature A) plug for connection to RG142 and RG223 cable for the creation of coax assemblies and suitable for applications requiring a frequency of up to 12.5GHz.
Featuring a screw coupling for a secure connection with a SMA socket and full crimp termination the coax plug is easy to install and suitable for up to 500 mating cycles.
Constructed from hardwearing Brass with a Gold plated body and contacts the SMA coax plug is wear resistance and protected against repeated insertions and disconnections. The IP67 rating protecting against water and dust ingress combined with the wide operating temperature of -55 to +155°C makes the SMA plug ideal for use in harsh environments.
The SMA coax plug is suitable for use in telecommunications, instrumentation and security applications along with use in the military and aerospace industries.
Features and Benefits
12.5GHz SMA coax plug
Suitable for RG142 and RG223 cable
Full crimp termination
50 Ω impedance
Gold plated Brass
Gold plated contacts
PTFE insulation
IP67 protected
500 mating cycles
Full detent
Dimensions 20 x 8mm
Standards and Approvals: MIL-STD-107, MIL-STD-202
