RS PRO, Plug Cable Mount SMA Connector, 50Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 246-9416
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£13.01
(exc. VAT)
£15.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 195 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.01 |
| 5 - 9 | £12.63 |
| 10 - 24 | £12.11 |
| 25 + | £11.50 |
*price indicative
- RS Stock No.:
- 246-9416
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | SMA Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Crimp | |
| Body Orientation | Right Angle | |
| Cable Type | RG174, RG316/U | |
| Operating Frequency | 6GHz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | +165°C | |
| Series | SMA | |
| Contact Material | Copper | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Right Angle | ||
Cable Type RG174, RG316/U | ||
Operating Frequency 6GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature +165°C | ||
Series SMA | ||
Contact Material Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN

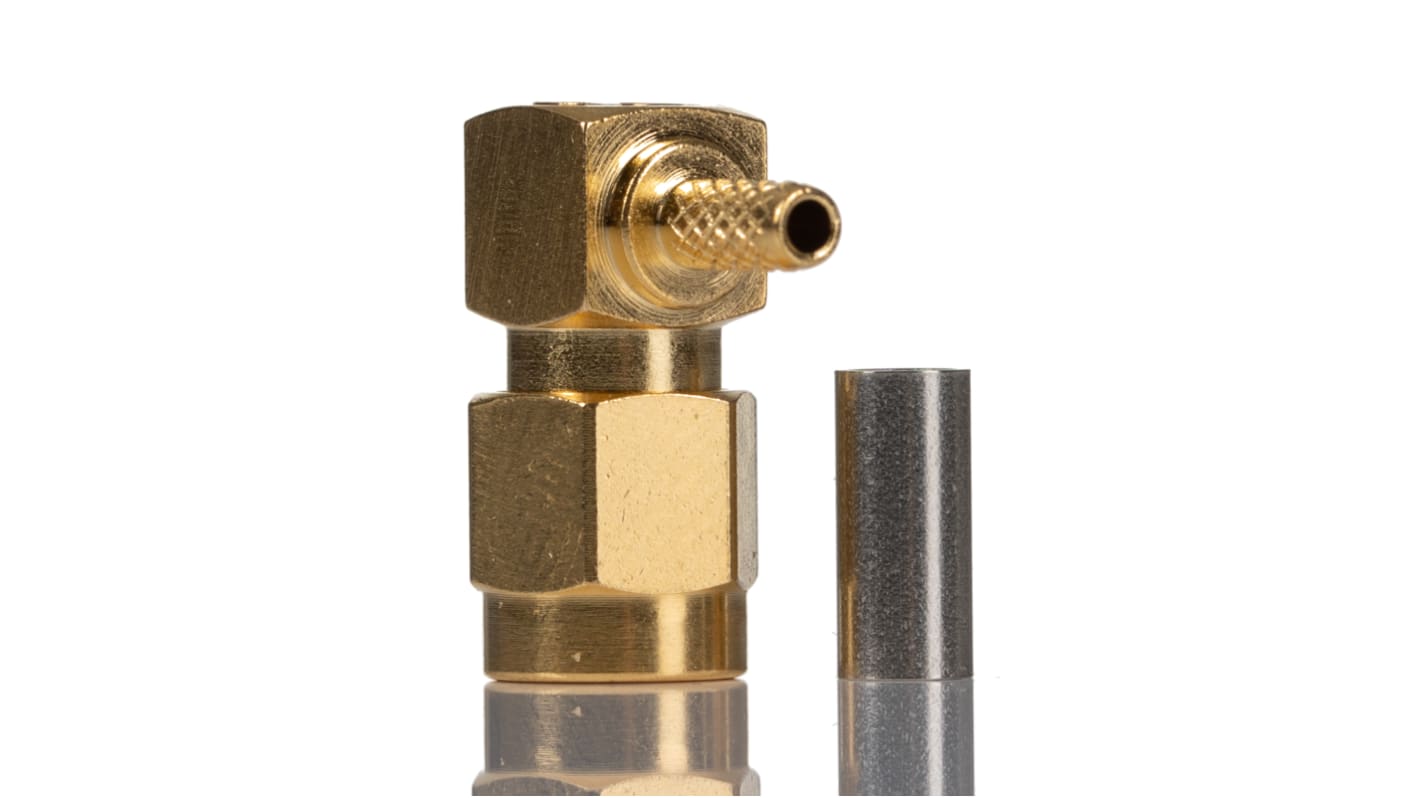

RS PRO Right Angle Cable Mount SMA Connector Plug, RG174, RG316/U
A right angle cable mount SMA (subminiature version A) connector designed for use with RG174 and RG316/U coaxial cable. The RS PRO SMA connector features a 6 GHz frequency range and with its right angle design is ideally suited for installation in tight spaces.
The RS PRO SMA coax connector includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance and is ideal for use in WiFi equipment and systems.
The RS PRO SMA coax connector includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance and is ideal for use in WiFi equipment and systems.
Features and Benefits
- Sub-miniature size
- For use with RG174 & RG316/U coaxial cable
- Cable mount
- Crimp termination
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +165°C
Approvals and Standards: CE, ROHS
