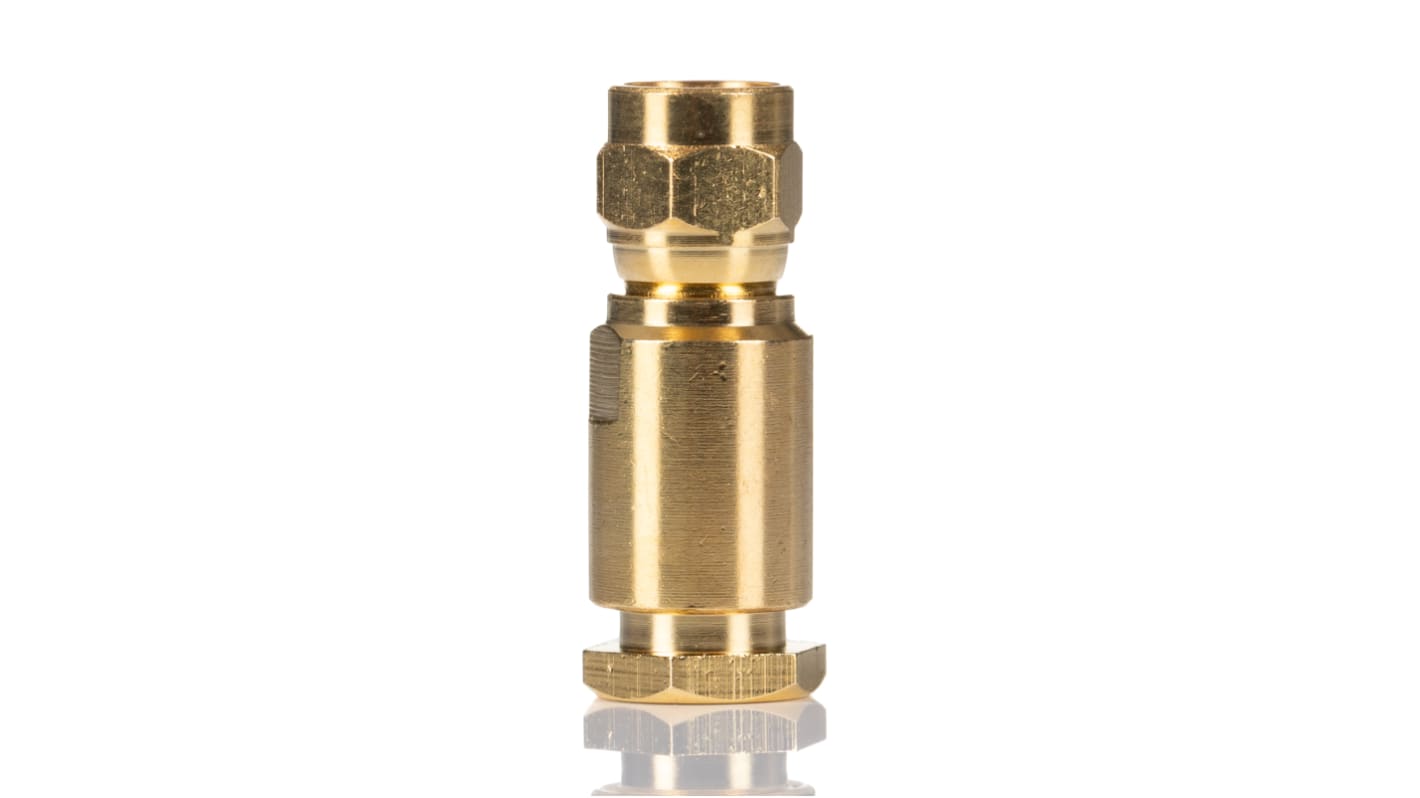

RS PRO, Plug Cable Mount SMC Connector, 50Ω, Clamp Termination, Straight Body
- RS Stock No.:
- 246-9499
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.01
(exc. VAT)
£6.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 876 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.01 |
| 5 - 9 | £4.86 |
| 10 - 24 | £4.67 |
| 25 + | £4.44 |
*price indicative
- RS Stock No.:
- 246-9499
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coaxial Connector Type | SMC Connector | |
| Gender | Male | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Clamp | |
| Body Orientation | Straight | |
| Cable Type | RG174 A/U | |
| Operating Frequency | 6GHz | |
| Minimum Operating Temperature | -45°C | |
| Body Plating | Gold | |
| Maximum Operating Temperature | +125°C | |
| Series | SMC | |
| Contact Material | Copper | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coaxial Connector Type SMC Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Clamp | ||
Body Orientation Straight | ||
Cable Type RG174 A/U | ||
Operating Frequency 6GHz | ||
Minimum Operating Temperature -45°C | ||
Body Plating Gold | ||
Maximum Operating Temperature +125°C | ||
Series SMC | ||
Contact Material Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN
RS PRO Straight Angle Cable Mount SMC Connector Jack, RG174 A/U
A straight angle cable mount SMC (sub-miniature version C) connector designed for use with RG174 A/U coaxial cable to enable the smooth transmission of radio-frequency signals (RF).
As an SMC connector the RS PRO SMC coaxial connector features a threaded coupling design for vibration resistant preventing any accidental disconnection and reducing electromagnetic interference.
The RS PRO SMC coax connector features a 6 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
As an SMC connector the RS PRO SMC coaxial connector features a threaded coupling design for vibration resistant preventing any accidental disconnection and reducing electromagnetic interference.
The RS PRO SMC coax connector features a 6 GHz frequency range and includes PTFE insulation and gold-plated Copper contacts for maximum repeated efficiency and excellent wear resistance.
Features and Benefits
- For use with RG174 A/U coax cable
- Straight angle orientation
- Cable mount
- Clamp termination
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +125°C
Approvals and Standards: CE, ROHS
