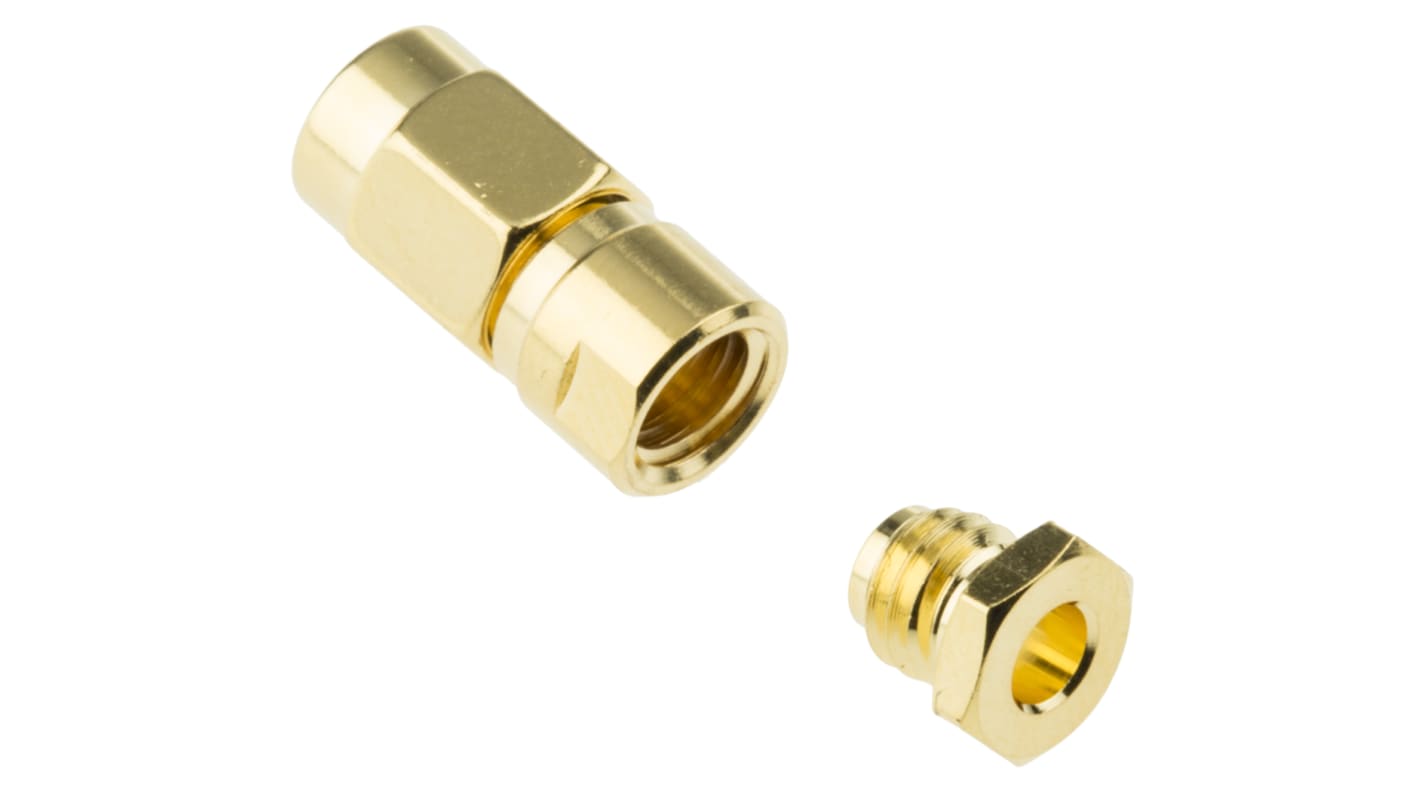

TE Connectivity, Plug Cable Mount SMC Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 420-5439
- Mfr. Part No.:
- 1-1337607-0
- Brand:
- TE Connectivity
Save 30% when you buy 250 units
Subtotal (1 unit)*
£6.29
(exc. VAT)
£7.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 375 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 14 | £6.29 |
15 - 49 | £6.04 |
50 - 99 | £5.30 |
100 - 249 | £5.03 |
250 + | £4.40 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.69
(exc. VAT)
£14.03
(inc. VAT)
- RS Stock No.:
- 420-5439
- Mfr. Part No.:
- 1-1337607-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Gender | Male | |
Coaxial Connector Type | SMC Connector | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Cable Type | RG174 A/U, RG188 A/U, RG316/U | |
Operating Frequency | 0 to 10GHz | |
Body Plating | Gold | |
Minimum Operating Temperature | -65°C | |
Maximum Operating Temperature | +165°C | |
Contact Material | Beryllium Copper | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Gender Male | ||
Coaxial Connector Type SMC Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type RG174 A/U, RG188 A/U, RG316/U | ||
Operating Frequency 0 to 10GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
TE Connectivity SMC RF Coaxial Plug Connectors
SMC RF coaxial cable plug connectors with a miniature and lightweight design ideal for use in applications where space is limited. These SMC RF coaxial cable connectors offer an excellent electrical performance from DC to 10 GHz with a constant impedance of 50 Ω and a low noise level. The miniature threaded coupling on these SMC RF coaxial cable plug connectors makes them suitable for use in applications where resistance to vibration is important.
Features and Benefits
Miniature lightweight design
Excellent electrical performance from DC to 10 GHz
Low noise level
Miniature threaded coupling for vibration resistance
Excellent electrical performance from DC to 10 GHz
Low noise level
Miniature threaded coupling for vibration resistance
Applications
These SMC RF coaxial cable connectors are used for providing interconnections for small form factor coaxial cables in telecommunications, antenna, instrumentation and PC/LAN applications
Approvals
-
SMC Series RF Coaxial Connectors - TE Connectivity
Suitable for use with RG174 cable
