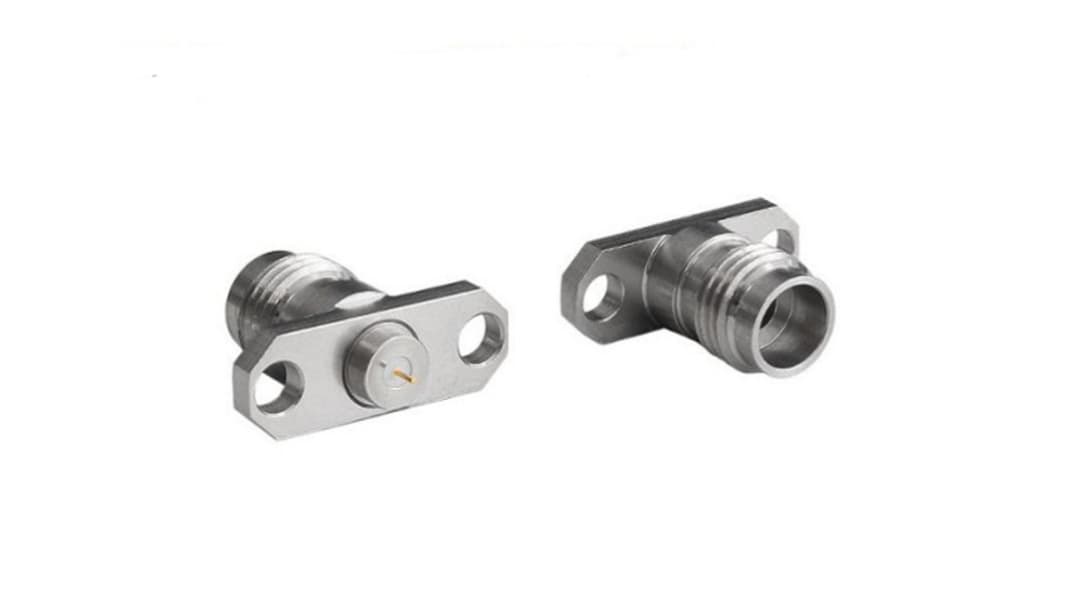

Bulgin SSMA Series Flange Female Circular Coaxial, 50 Ω, Straight Body Jack Screw
- RS Stock No.:
- 241-0239
- Mfr. Part No.:
- RFSSMAA2JCCAFEC
- Brand:
- Bulgin
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£64.82
(exc. VAT)
£77.78
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £64.82 |
| 10 - 24 | £59.44 |
| 25 - 49 | £54.84 |
| 50 - 99 | £50.95 |
| 100 + | £47.52 |
*price indicative
- RS Stock No.:
- 241-0239
- Mfr. Part No.:
- RFSSMAA2JCCAFEC
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Coaxial Connector Type | Circular Coaxial | |
| Product Type | Coaxial Connector | |
| Mount Type | Flange | |
| Impedance | 50Ω | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Cable Type | Flexible Coaxial, Semi-Rigid | |
| Bulkhead | No | |
| Body Plating | Stainless Steel | |
| Minimum Operating Temperature | -65°C | |
| Termination Type | Jack Screw | |
| Maximum Operating Temperature | 165°C | |
| Polarity | Reverse | |
| Contact Gender | Female | |
| Series | SSMA | |
| Standards/Approvals | ASTM D 1710 Compliant, RoHS | |
| Contact Material | Beryllium Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Coaxial Connector Type Circular Coaxial | ||
Product Type Coaxial Connector | ||
Mount Type Flange | ||
Impedance 50Ω | ||
Orientation Straight | ||
Connector Gender Female | ||
Cable Type Flexible Coaxial, Semi-Rigid | ||
Bulkhead No | ||
Body Plating Stainless Steel | ||
Minimum Operating Temperature -65°C | ||
Termination Type Jack Screw | ||
Maximum Operating Temperature 165°C | ||
Polarity Reverse | ||
Contact Gender Female | ||
Series SSMA | ||
Standards/Approvals ASTM D 1710 Compliant, RoHS | ||
Contact Material Beryllium Copper Alloy | ||
- COO (Country of Origin):
- CN
The Bulgin Radio Frequency Connectors in SSMA connector series are micro miniature, precision connectors with excellent electrical performance.
Available for both semi rigid and flexible coaxial cables, they are ideal for high frequency applications. The SSMA connector range offers a smaller version of the SMA connector and is widely used in microwave communications. It has stainless steel construction that provides mechanical ruggedness for high reliability in a compact size. These connectors are widely used in Radar, Military, Aerospace, Instrumentation, Test and Measurement and Satellite Communication Equipment such as SATCOM.
Available in Male and Female Threads
Available in Plug or Jack
Beryllium Copper Contact Pin
Body Material available in Stainless Steel Passivation
50 ohm Impedance
Insulation resistance 5000MOhm
Durability 500 Cycles
The Bulgin SMA connector range are semi precision and offer a 50 ohms impedance and a 0.25 to 36 threaded coupling. Offering high performance all within a compact SMA connector design, frequently used as standard for antennas, devices and various medical
