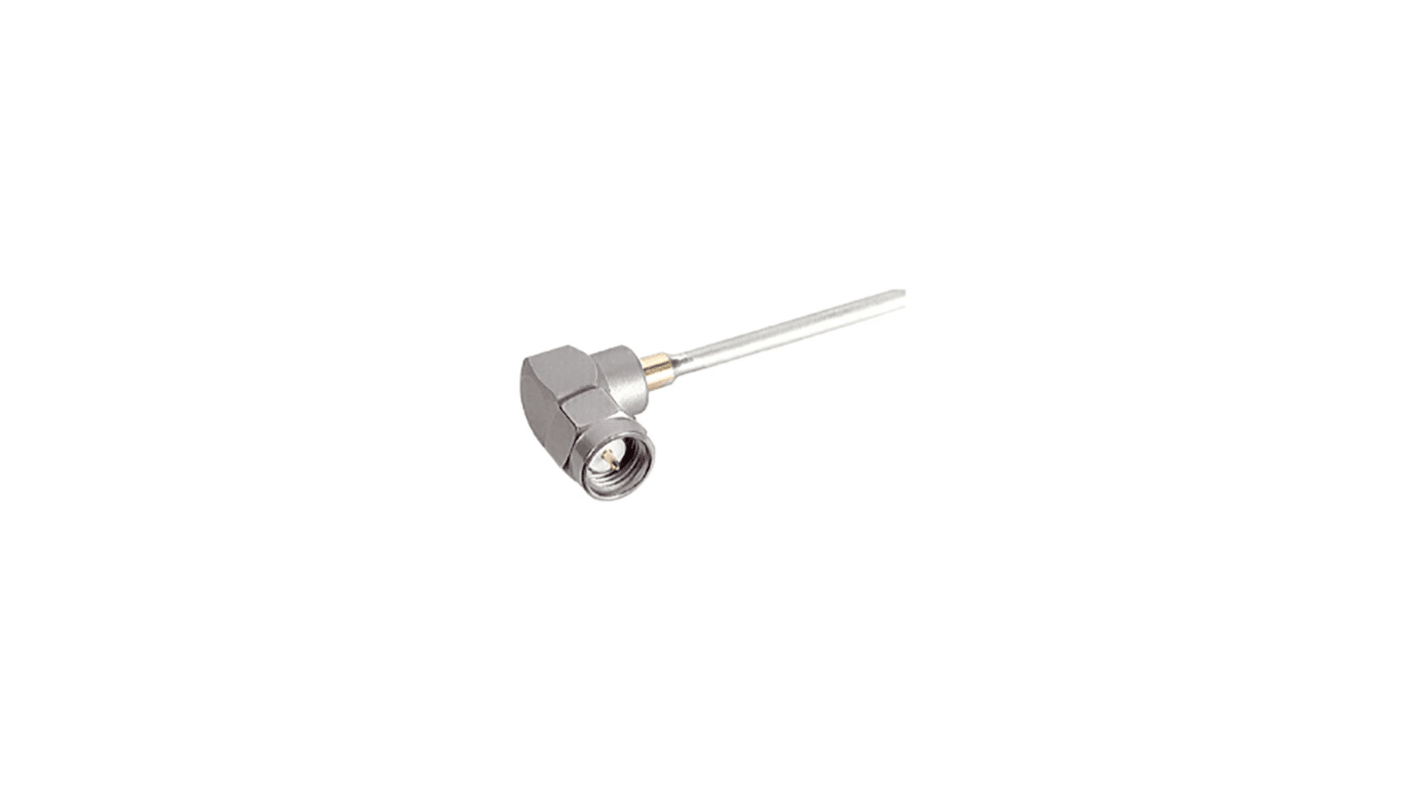

Huber+Suhner 16_SMA-50-2-100/199_NH Series Coaxial Connector Cable Male SMA, 50 Ω, Right Angle Body Solder
- RS Stock No.:
- 205-9198
- Distrelec Article No.:
- 302-42-986
- Mfr. Part No.:
- 16_SMA-50-2-100/199_NH
- Brand:
- Huber+Suhner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£26.32
(exc. VAT)
£31.58
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 46 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £26.32 |
| 10 - 24 | £24.03 |
| 25 - 49 | £22.11 |
| 50 + | £20.48 |
*price indicative
- RS Stock No.:
- 205-9198
- Distrelec Article No.:
- 302-42-986
- Mfr. Part No.:
- 16_SMA-50-2-100/199_NH
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | SMA | |
| Mount Type | Cable | |
| Impedance | 50Ω | |
| Connector Gender | Male | |
| Orientation | Right Angle | |
| Cable Type | Coaxial | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 26.5GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Passivated | |
| Maximum Operating Temperature | 165°C | |
| Termination Type | Solder | |
| Polarity | Normal | |
| Contact Gender | Male | |
| Series | 16_SMA-50-2-100/199_NH | |
| Contact Material | Beryllium Copper Alloy | |
| Standards/Approvals | No | |
| Contact Plating | Gold Plating | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type SMA | ||
Mount Type Cable | ||
Impedance 50Ω | ||
Connector Gender Male | ||
Orientation Right Angle | ||
Cable Type Coaxial | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 26.5GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Passivated | ||
Maximum Operating Temperature 165°C | ||
Termination Type Solder | ||
Polarity Normal | ||
Contact Gender Male | ||
Series 16_SMA-50-2-100/199_NH | ||
Contact Material Beryllium Copper Alloy | ||
Standards/Approvals No | ||
Contact Plating Gold Plating | ||
- COO (Country of Origin):
- CN
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 26.5 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 26.5 GHz
Centre contact plugged
Outer contact soldered
Weight 0.0056 kg
Operating temperature -65 °C to 165 °C
