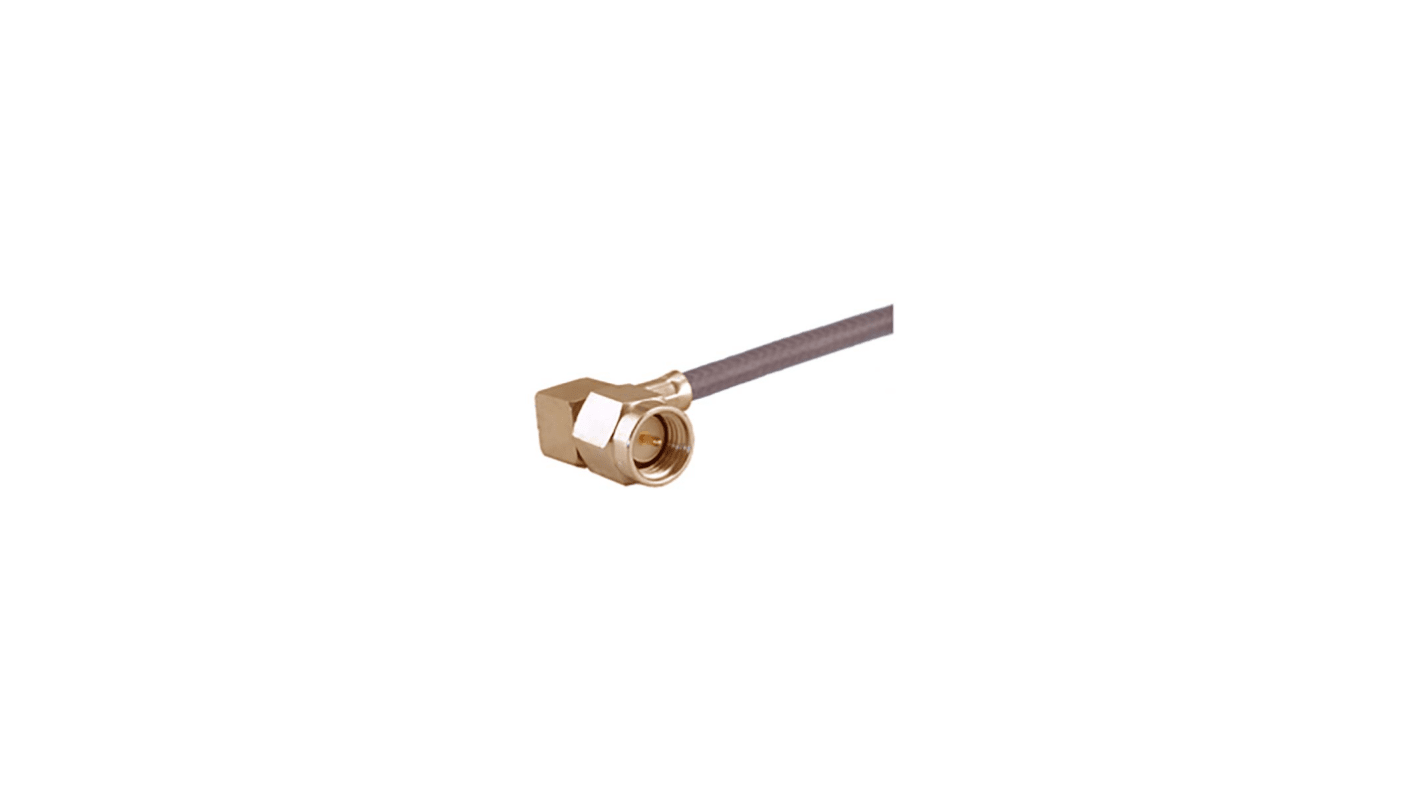

Huber+Suhner 16_SMA-50-2-105/111_NH Series Cable, Cable Male SMA, 50 Ω, Right Angle, Right Angle Body Crimp
- RS Stock No.:
- 205-9128
- Distrelec Article No.:
- 301-97-265
- Mfr. Part No.:
- 16_SMA-50-2-105/111_NH
- Brand:
- Huber+Suhner
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 205-9128
- Distrelec Article No.:
- 301-97-265
- Mfr. Part No.:
- 16_SMA-50-2-105/111_NH
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | SMA | |
| Mount Type | Cable, Cable | |
| Impedance | 50Ω | |
| Orientation | Right Angle, Right Angle | |
| Connector Gender | Male | |
| Cable Type | Coaxial, Coaxial | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 18GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Brass, Brass | |
| Termination Type | Crimp | |
| Polarity | Normal | |
| Maximum Operating Temperature | 165°C | |
| Contact Gender | Male | |
| Series | 16_SMA-50-2-105/111_NH | |
| Contact Material | Beryllium Copper Alloy, Brass | |
| Standards/Approvals | No | |
| Contact Plating | Gold Plating | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type SMA | ||
Mount Type Cable, Cable | ||
Impedance 50Ω | ||
Orientation Right Angle, Right Angle | ||
Connector Gender Male | ||
Cable Type Coaxial, Coaxial | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 18GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Brass, Brass | ||
Termination Type Crimp | ||
Polarity Normal | ||
Maximum Operating Temperature 165°C | ||
Contact Gender Male | ||
Series 16_SMA-50-2-105/111_NH | ||
Contact Material Beryllium Copper Alloy, Brass | ||
Standards/Approvals No | ||
Contact Plating Gold Plating | ||
- COO (Country of Origin):
- CH
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz Interface frequency and the body MADE from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 18 GHz
Centre contact soldered
Outer contact crimped
Weight 0.0047 kg
Operating temperature -65 °C to 165 °C
