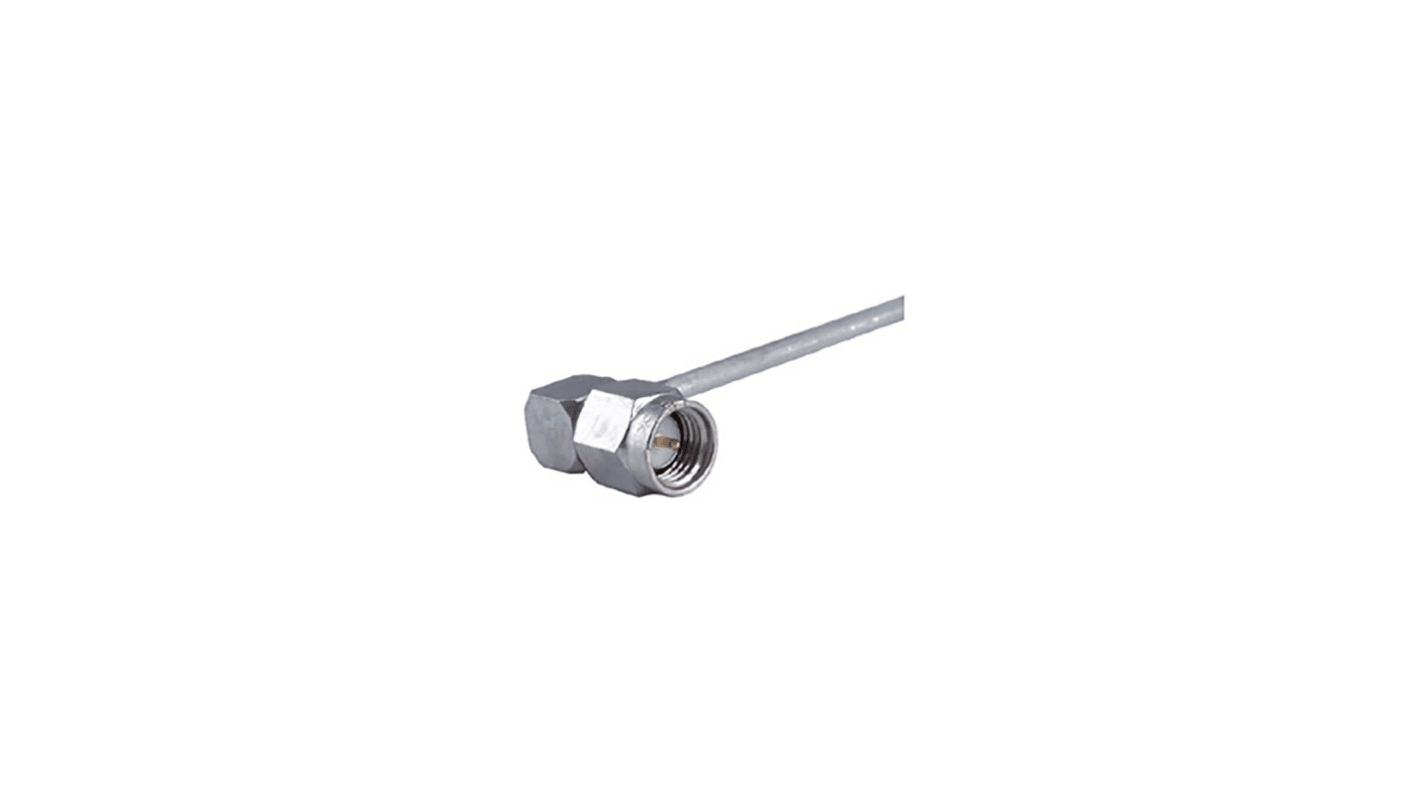

Huber+Suhner 16_SMA-50-2-53/119_NH Series, Plug Cable Mount SMA Connector, Solder Termination, Right Angle Body
- RS Stock No.:
- 205-8924
- Mfr. Part No.:
- 16_SMA-50-2-53/119_NH
- Brand:
- Huber+Suhner
Subtotal (1 box of 100 units)*
£748.70
(exc. VAT)
£898.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
100 + | £7.487 | £748.70 |
*price indicative
- RS Stock No.:
- 205-8924
- Mfr. Part No.:
- 16_SMA-50-2-53/119_NH
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Gender | Male | |
Coaxial Connector Type | SMA Connector | |
Mounting Type | Cable Mount | |
Termination Method | Solder | |
Body Orientation | Right Angle | |
Cable Type | Coaxial | |
Bulkhead | No | |
Polarity | Normal | |
Series | 16_SMA-50-2-53/119_NH | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Gender Male | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Cable Mount | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Cable Type Coaxial | ||
Bulkhead No | ||
Polarity Normal | ||
Series 16_SMA-50-2-53/119_NH | ||
- COO (Country of Origin):
- CH
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 18 GHz
Centre contact soldered
Outer contact soldered
Weight 0.0047 kg
Operating temperature -65 °C to 165 °C
Interface frequency max. 18 GHz
Centre contact soldered
Outer contact soldered
Weight 0.0047 kg
Operating temperature -65 °C to 165 °C
