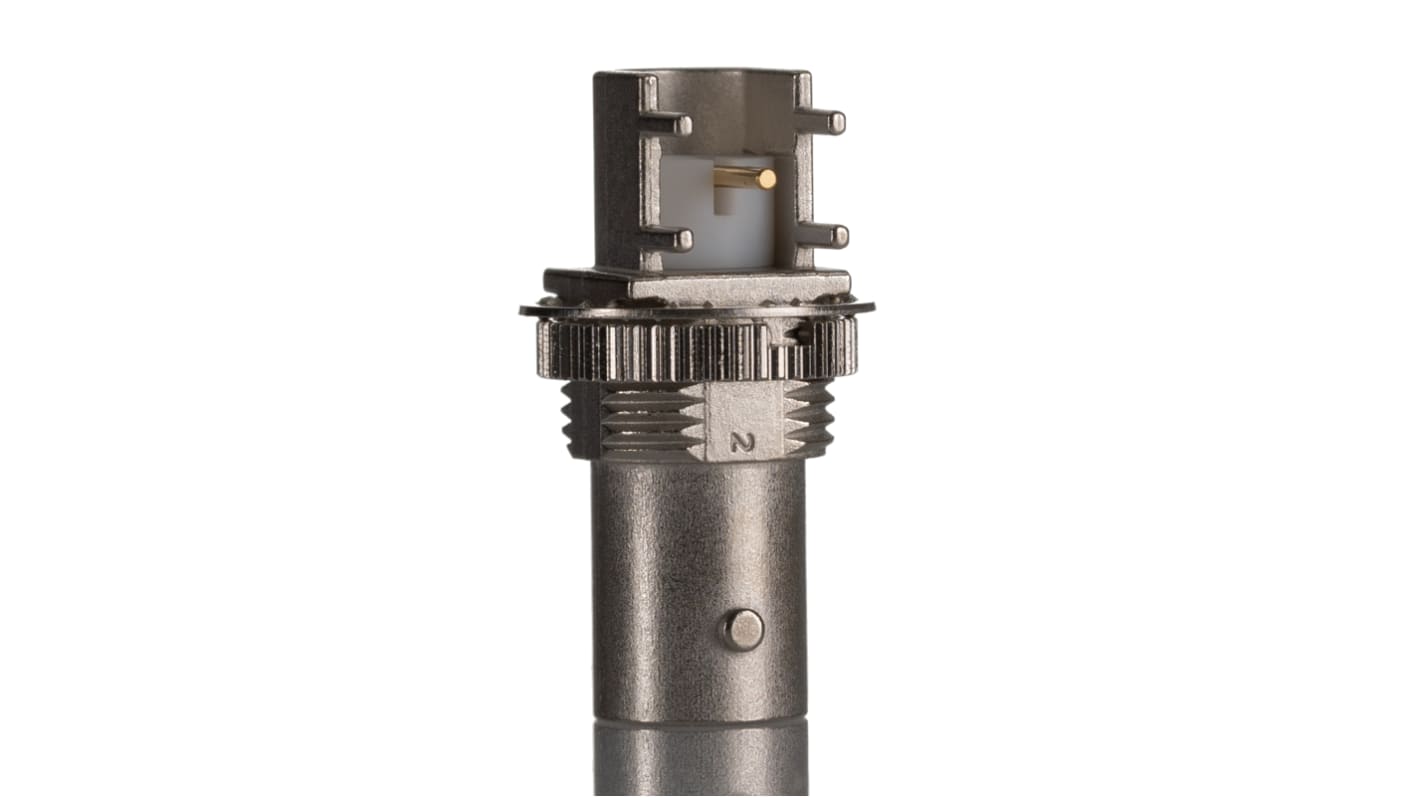

Samtec BNC Series, Jack Through Hole BNC Connector, 50Ω, Through Hole Termination, Right Angle Body

RS Stock No.:: 196-6634
Mfr. Part No.:: BNC5-J-P-GN-RA-BH2D
Brand:: Samtec

Samtec BNC Series, Jack Through Hole BNC Connector, 50Ω, Through Hole Termination, Right Angle Body

Bulk discount available

Subtotal (1 unit)*

£8.60

(exc. VAT)

£10.32

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

17 unit(s) ready to ship
Plus 28 unit(s) shipping from 09 September 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 24	£8.60
25 +	£8.24

*price indicative

RS Stock No.:: 196-6634
Mfr. Part No.:: BNC5-J-P-GN-RA-BH2D
Brand:: Samtec

Samtec BNC Series Coaxial Connector, 50 Ω Impedance, Through Hole Termination - BNC5-J-P-GN-RA-BH2D

This coaxial connector by Samtec is a high-quality female connector ideal for various electrical and mechanical applications. With a right-angle body orientation and gold plating over nickel, this connector offers reliable performance and durability. The 50 Ω impedance and through-hole mounting style make it suitable for high-traffic scenarios, ensuring seamless connectivity in any setup.

Features & Benefits

• Right-angle body orientation for convenient installation and space-saving design
• Gold plating over nickel provides superior conductivity and corrosion resistance
• Female gender ensures compatibility with a wide range of devices and cables
• 50 Ω impedance for optimal signal transmission in high-frequency applications
• Through-hole mounting style for secure and robust connections

Applications

• Suitable for use in telecommunication systems
• Ideal for connecting coaxial cables in data centres
• Can be used for test and measurement equipment in electronics labs
• Used for networking and CCTV installations
• Compatible with various RF applications

Can it be used with different types of coaxial cables?

Yes, this female connector is compatible with a variety of coaxial cables, ensuring versatility in your connections.

Is it easy to install in different setups?

Yes, the through-hole mounting style allows for secure and straightforward installation in various electrical and mechanical systems.

Will it provide reliable signal transmission in high-traffic scenarios?

Yes, the 50 Ω impedance and gold-plated design ensure unparalleled performance even in high-traffic environments.

Can it be used for both indoor and outdoor applications?

Yes, this female connector is suitable for both indoor and outdoor setups, providing flexibility in your connectivity options.

Is it compatible with Samtec BNC connectors?

Yes, this coaxial connector is fully compatible with other Samtec BNC connectors, ensuring seamless integration into your existing systems.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Coaxial Connector Type	BNC Connector
	Gender	Female
	Mounting Type	Through Hole
	Impedance	50Ω
	Termination Method	Through Hole
	Body Orientation	Right Angle
	Bulkhead	Yes
	Body Plating	Gold over Nickel
	Polarity	Normal
	Series	BNC

	Select all
	Brand Samtec
	Coaxial Connector Type BNC Connector
	Gender Female
	Mounting Type Through Hole
	Impedance 50Ω
	Termination Method Through Hole
	Body Orientation Right Angle
	Bulkhead Yes
	Body Plating Gold over Nickel
	Polarity Normal
	Series BNC
