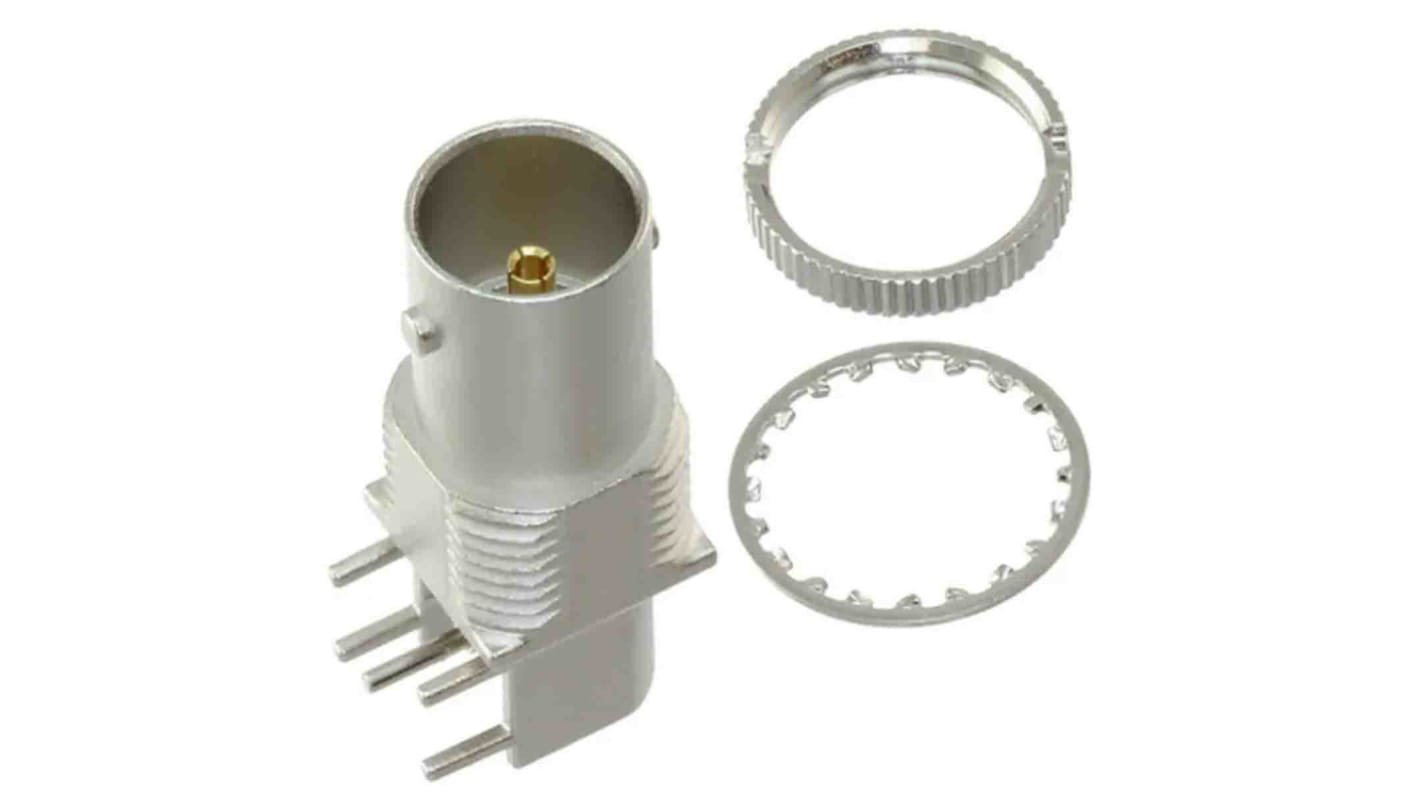

Samtec BNC Series PCB Female BNC, 75 Ω, Right Angle Body Solder
- RS Stock No.:
- 196-6845
- Mfr. Part No.:
- BNC7T-J-P-GN-RA-BH1
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£18.99
(exc. VAT)
£22.79
(inc. VAT)
Add 3 units to get free delivery
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £18.99 |
| 10 - 24 | £17.51 |
| 25 - 49 | £17.11 |
| 50 - 99 | £15.76 |
| 100 + | £14.91 |
*price indicative
- RS Stock No.:
- 196-6845
- Mfr. Part No.:
- BNC7T-J-P-GN-RA-BH1
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | BNC | |
| Mount Type | PCB | |
| Impedance | 75Ω | |
| Connector Gender | Female | |
| Orientation | Right Angle | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 12 GHz | |
| Body Plating | Gold over Nickel | |
| Minimum Operating Temperature | -65°C | |
| Termination Type | Solder | |
| Polarity | Normal | |
| Maximum Operating Temperature | 125°C | |
| Series | BNC | |
| Contact Gender | Female | |
| Contact Material | Copper Alloy | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type BNC | ||
Mount Type PCB | ||
Impedance 75Ω | ||
Connector Gender Female | ||
Orientation Right Angle | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 12 GHz | ||
Body Plating Gold over Nickel | ||
Minimum Operating Temperature -65°C | ||
Termination Type Solder | ||
Polarity Normal | ||
Maximum Operating Temperature 125°C | ||
Series BNC | ||
Contact Gender Female | ||
Contact Material Copper Alloy | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
The Samtec BNC7T series is a 75 Ohm BNC bulkhead jack.
Shell material is Ni plated brass
Contact material made up of copper alloy
Operating temperature is -65°C to +125°C
