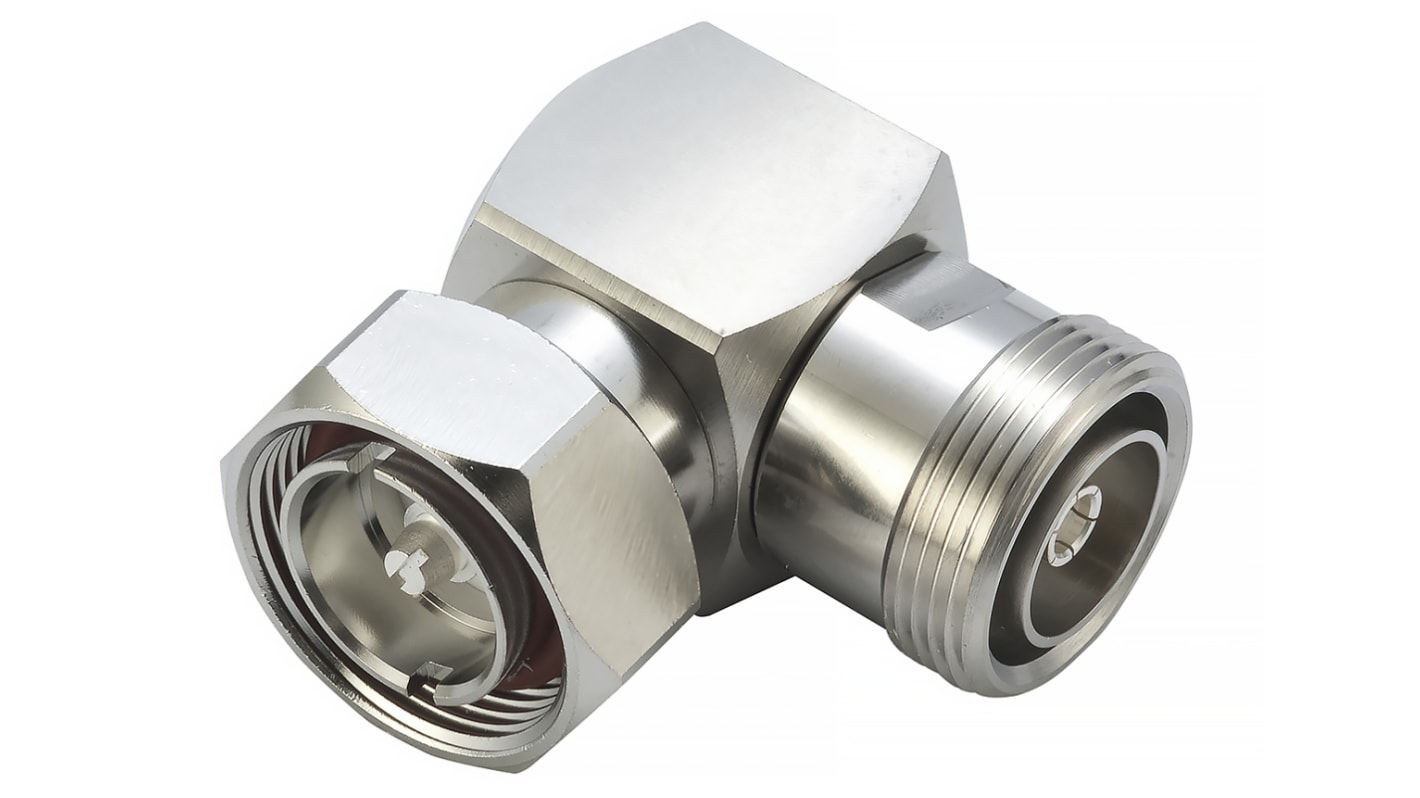

RS PRO, Plug Cable Mount 7/16 Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 170-7000
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 170-7000
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | 7/16 Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Right Angle | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 7.5GHz | |
| Minimum Operating Temperature | -55°C | |
| Body Plating | Bronze | |
| Maximum Operating Temperature | +155°C | |
| Contact Material | Beryllium Copper, Brass | |
| Contact Plating | Silver | |
| Mating Type | Threaded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type 7/16 Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 7.5GHz | ||
Minimum Operating Temperature -55°C | ||
Body Plating Bronze | ||
Maximum Operating Temperature +155°C | ||
Contact Material Beryllium Copper, Brass | ||
Contact Plating Silver | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- TW
This is a low PIM straight N jack receptacle connector. This connector also has the bulkhead function. There is a .783" flat for tool. Low PIM connector series is ideal where PIM (Passive Inter-modulation Distortion) is a concern to the design work. The connectors are designed with low-loss construction and waterproof protection.
Impedance: 50 OHM
Frequency Range: DC-7.5 GHz
V.S.W.R: 1.1 MAX@3 GHz
Wireless/ Wi-Fi/ GSM base station
Finish: silver plated center contact & white bronze plated body
Refer to recommended assembly instructionCM-43-1
Frequency Range: DC-7.5 GHz
V.S.W.R: 1.1 MAX@3 GHz
Wireless/ Wi-Fi/ GSM base station
Finish: silver plated center contact & white bronze plated body
Refer to recommended assembly instructionCM-43-1
