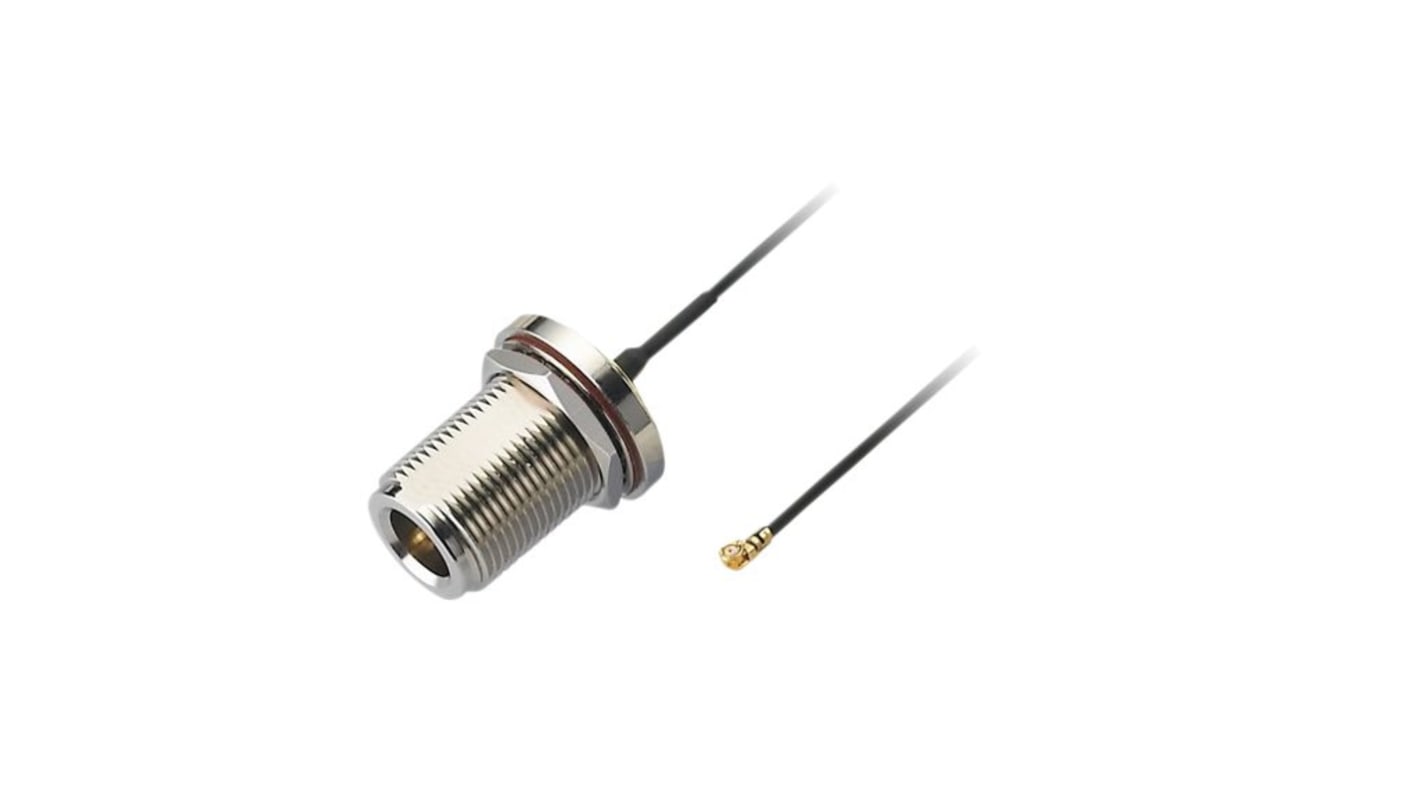

Taoglas CAB Series Female N Type to Female U.FL, 300mm
- RS Stock No.:
- 288-7372
- Distrelec Article No.:
- 302-85-109
- Mfr. Part No.:
- CAB.954
- Brand:
- Taoglas
Subtotal (1 unit)*
£12.70
(exc. VAT)
£15.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 72 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £12.70 |
*price indicative
- RS Stock No.:
- 288-7372
- Distrelec Article No.:
- 302-85-109
- Mfr. Part No.:
- CAB.954
- Brand:
- Taoglas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Taoglas | |
Connector 1 | N Type | |
Connector 2 | U.FL | |
Connector 1 Gender | Female | |
Connector 2 Gender | Female | |
Connector 1 Orientation | Straight | |
Length | 300mm | |
Series | CAB | |
Select all | ||
---|---|---|
Brand Taoglas | ||
Connector 1 N Type | ||
Connector 2 U.FL | ||
Connector 1 Gender Female | ||
Connector 2 Gender Female | ||
Connector 1 Orientation Straight | ||
Length 300mm | ||
Series CAB | ||
- COO (Country of Origin):
- TW
The Taoglas Cable Assembly is a high-quality product designed for optimum performance. With N Type Jack with O-Ring to 300mm(11.81") 1.37 to IPEX MHFI(U.FL comp) compatibility, this cable assembly ensures reliable connectivity for various applications.
Silver Coated material for durability
FEP insulation for protection
Tinned-Coated Copper material for conductivity
30AWG(7/0.102mm) structure for flexibility
Coverage of 95% for optimal signal transmission
Insulation Resistance of 3000 MEGA OHM-KM Min.
Conductor Resistance of 335 OHM/KM/20℃ Max.
Nominal Impedance of 50 ± 3 Ohms for consistent performance
Flame Test VW-1 approved for safety
Low attenuation levels at various frequencies for clear signal transmission
FEP insulation for protection
Tinned-Coated Copper material for conductivity
30AWG(7/0.102mm) structure for flexibility
Coverage of 95% for optimal signal transmission
Insulation Resistance of 3000 MEGA OHM-KM Min.
Conductor Resistance of 335 OHM/KM/20℃ Max.
Nominal Impedance of 50 ± 3 Ohms for consistent performance
Flame Test VW-1 approved for safety
Low attenuation levels at various frequencies for clear signal transmission
