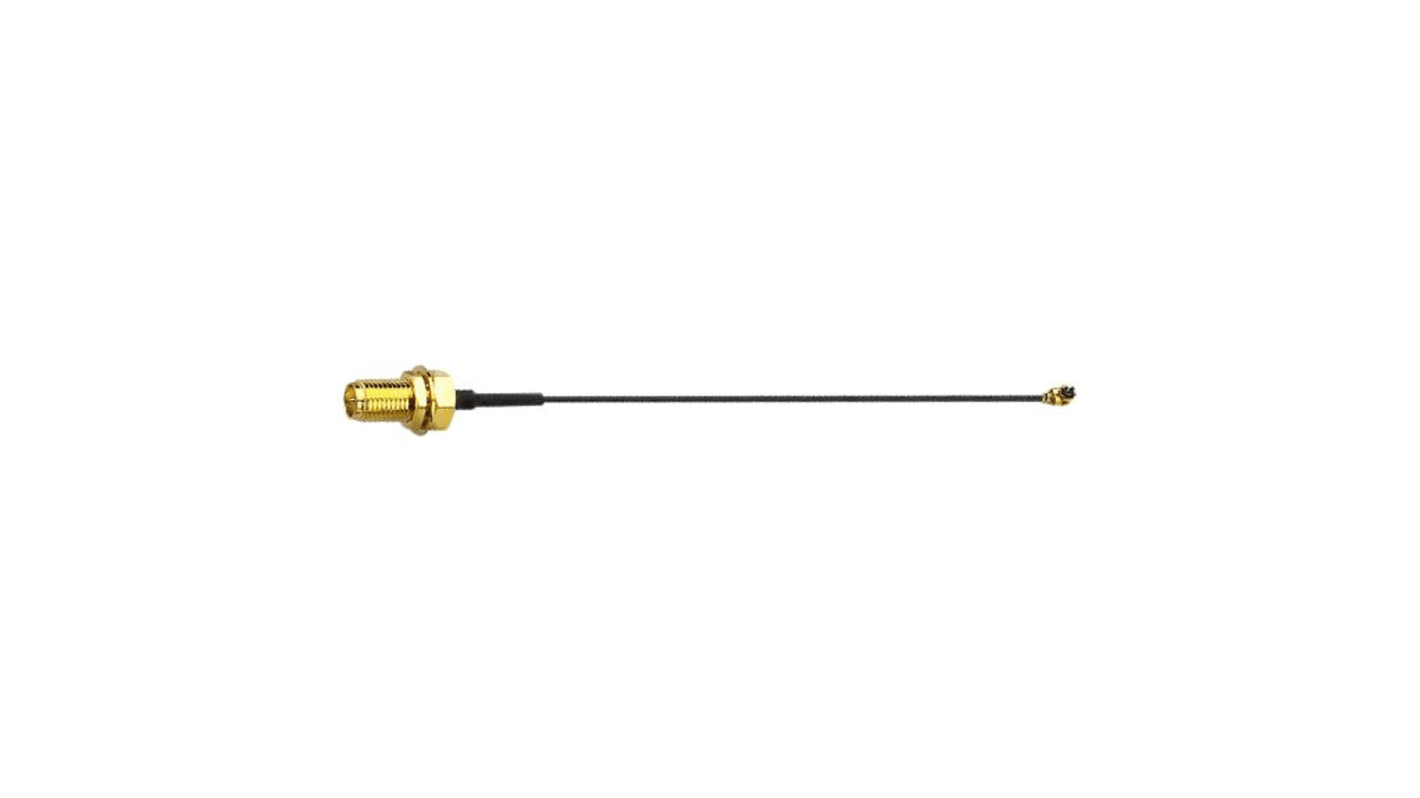

Taoglas CAB Series Female U.FL to Female SMA, 100mm
- RS Stock No.:
- 288-7367
- Distrelec Article No.:
- 302-85-100
- Mfr. Part No.:
- CAB.616
- Brand:
- Taoglas
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.03
(exc. VAT)
£12.04
(inc. VAT)
- RS Stock No.:
- 288-7367
- Distrelec Article No.:
- 302-85-100
- Mfr. Part No.:
- CAB.616
- Brand:
- Taoglas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taoglas | |
| Connector 1 | U.FL | |
| Connector 2 | SMA | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 1 Orientation | Straight | |
| Length | 100mm | |
| Series | CAB | |
Select all | ||
|---|---|---|
Brand Taoglas | ||
Connector 1 U.FL | ||
Connector 2 SMA | ||
Connector 1 Gender Female | ||
Connector 2 Gender Female | ||
Connector 1 Orientation Straight | ||
Length 100mm | ||
Series CAB | ||
- COO (Country of Origin):
- TW
The Taoglas Cable Assembly, with Part No. CAB.616, is a high-quality product designed for optimal performance. With IPEX MHFI to SMA(F) Bulkhead Straight with O-Ring Connector and 100mm 1.37 diameter cable, this cable assembly ensures reliable connectivity and durability.
Designed with materials like Silver Coated Copper, FEP, and Tinned-Coated Copper for enhanced conductivity and longevity
Meets electrical and physical specifications with insulation resistance of 3000 MEGA OHM-KM Min and conductor resistance of 335 OHM/KM/20°C Max
Nominal impedance of 50 ± 3 Ohms and nominal capacitance of 96 ± 3 pF/m for efficient signal transmission
VSWR (0-6GHz) Max 1.3 and Flame Test VW-1 OK for high performance and safety
Attenuation values ranging from 2.20 dB/1M at 2.0GHz to 4.30 dB/1M at 6.0GHz for minimal signal loss
Meets electrical and physical specifications with insulation resistance of 3000 MEGA OHM-KM Min and conductor resistance of 335 OHM/KM/20°C Max
Nominal impedance of 50 ± 3 Ohms and nominal capacitance of 96 ± 3 pF/m for efficient signal transmission
VSWR (0-6GHz) Max 1.3 and Flame Test VW-1 OK for high performance and safety
Attenuation values ranging from 2.20 dB/1M at 2.0GHz to 4.30 dB/1M at 6.0GHz for minimal signal loss
