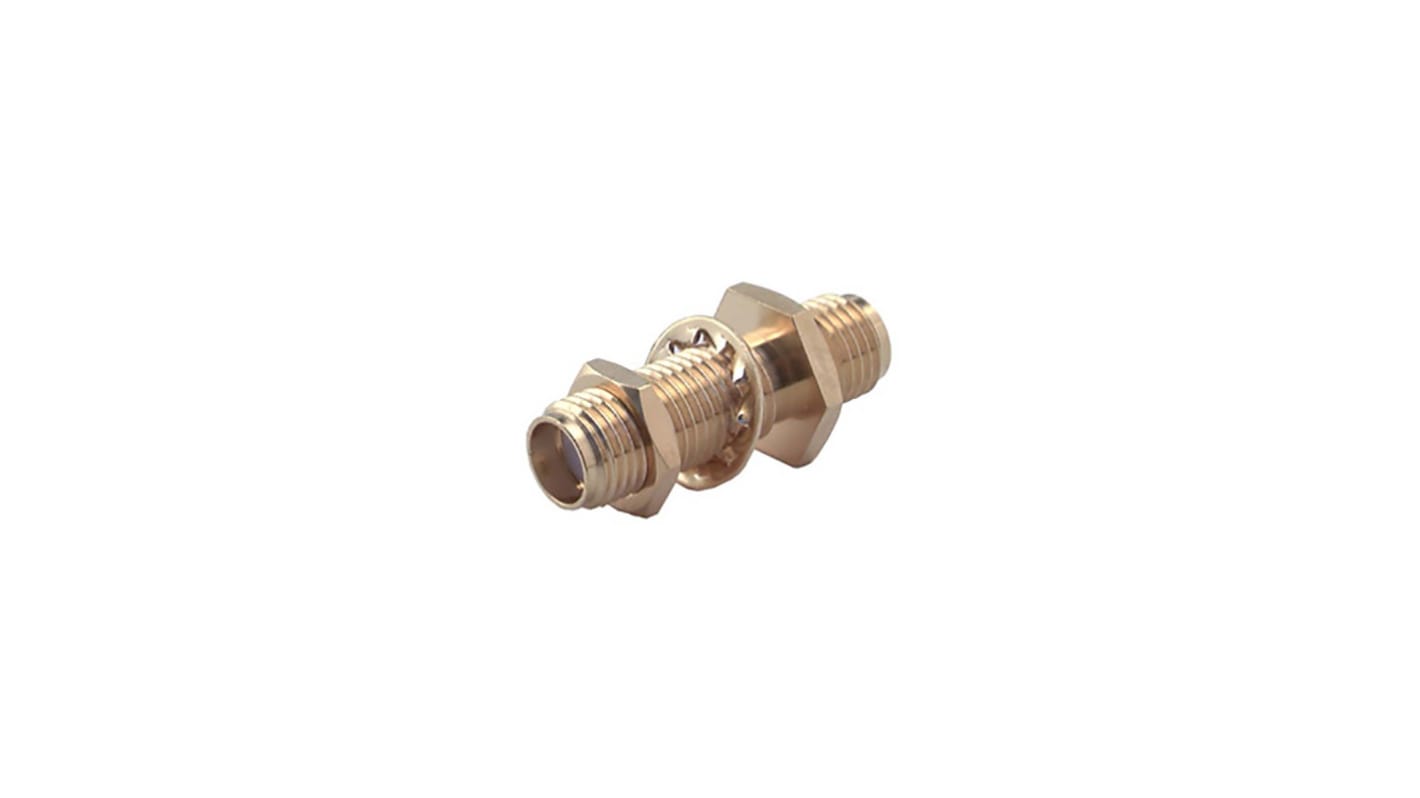

Huber+Suhner Straight 50 Ω Coaxial Adapter 18GHz Female Female
- RS Stock No.:
- 205-9106
- Mfr. Part No.:
- 34_SMA-50-0-1/111_NH
- Brand:
- Huber+Suhner
Subtotal (1 box of 100 units)*
£2,333.10
(exc. VAT)
£2,799.70
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 100 + | £23.331 | £2,333.10 |
*price indicative
- RS Stock No.:
- 205-9106
- Mfr. Part No.:
- 34_SMA-50-0-1/111_NH
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Adapter Type | SMA Jack to SMA Jack | |
| Product Type | Coaxial Adapter | |
| Converts From Type | SMA | |
| Converts to Type | SMA | |
| Impedance | 50Ω | |
| Mount Type | Cable | |
| Orientation | Straight | |
| Polarity | Normal | |
| Operating Frequency | 18GHz | |
| Contact Plating | Gold Plating | |
| Converts From Gender - Connector | Female | |
| Converts to Gender - Contact | Female | |
| Body Plating | Gold Plated | |
| Coupling Style | Threaded | |
| Converts From Gender - Contact | Female | |
| Converts to Gender - Connector | Female | |
| Cable Type | Coaxial | |
| Series | SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110 | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Adapter Type SMA Jack to SMA Jack | ||
Product Type Coaxial Adapter | ||
Converts From Type SMA | ||
Converts to Type SMA | ||
Impedance 50Ω | ||
Mount Type Cable | ||
Orientation Straight | ||
Polarity Normal | ||
Operating Frequency 18GHz | ||
Contact Plating Gold Plating | ||
Converts From Gender - Connector Female | ||
Converts to Gender - Contact Female | ||
Body Plating Gold Plated | ||
Coupling Style Threaded | ||
Converts From Gender - Contact Female | ||
Converts to Gender - Connector Female | ||
Cable Type Coaxial | ||
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110 | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Alloy | ||
The Huber & Suhner coaxial adapters has 50 Ohm impedance. It has 18 GHz impedance frequency. The RF Coaxial adapter is a single piece component allowing the connection of two different pieces of equipment that cannot be joined directly.
Impedance 50 O
Interface frequency max. 18 GHz
Frequency range DC to 6 GHz 6 to 10 GHz 10 to 18 GHz
Return loss = 30 dB = 25 dB = 22 dB
Number of mattings 500
Weight 0.0041 kg
Operating temperature -65 °C to 125 °C
