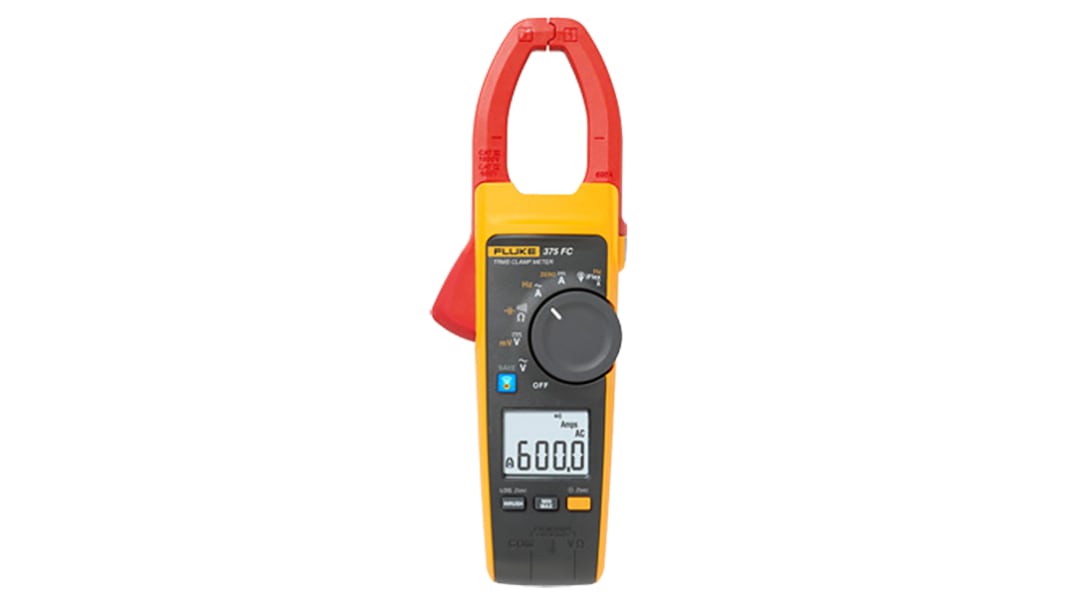

Fluke 375 FC Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V With RS Calibration

View all Clamp Meters

Subtotal (1 unit)*

£627.69

(exc. VAT)

£753.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
  • Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£627.69

*price indicative

RS Stock No.:
905-6967
Mfr. Part No.:
FLUKE-375 FC
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Absolute Maximum AC Current Measurement

600A ac

Absolute Maximum DC Current Measurement

600A dc

Absolute Maximum AC Voltage Measurement

600V ac

Absolute Maximum DC Voltage Measurement

600V dc

Absolute Maximum Resistance Measurement

60kΩ

Connectivity

Bluetooth

Model Number

375 FC

Calibrated

RSCAL

AC Current Measurement Resolution

100mA

DC Current Measurement Resolution

100mA

Best DC Current Accuracy

2% ±5 Digits

Clamp Meter Type

AC/DC Clamp Meter

Best AC Current Accuracy

2% ±5 Digits (Jaw), 3% ±5 (Probe)

Best AC Voltage Accuracy

1.5% ±5 Digits

Functions Measured

AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature

Best DC Voltage Accuracy

1% ±5 Digits

Jaw Capacity Busbars

34mm

True RMS

Yes

Safety Category Level

CAT III, CAT IV

Weight

388g

AC Voltage Measurement Range

1000 V

AC Current Measurement Range

600 A

AC Voltage Measurement Resolution

100mV

Height

43mm

Minimum Operating Temperature

-10°C

DC Voltage Measurement Resolution

100mV

Dimensions

246 x 83 x 43mm

DC Current Measurement Range

600 A

Resistance Measurement Resolution

10Ω

Length

246mm

Width

83mm

Power Source

Battery

Maximum Operating Temperature

+50°C

Display Type

Backlit LCD

Safety Category

CAT III 1000 V, CAT IV 600V

Battery Type

2 AA, IEC LR6, NEDA 15A

Safety Category Voltage

600 V, 1000V

Best Resistance Measurement Accuracy

1% ±5 Digits

RoHS Status: Exempt

COO (Country of Origin):
CN

Fluke 370 FC Series True RMS Wireless AC/DC Clamp Meters


Fluke 370 FC clamp meters are CAT IV 600 V, CAT III 1000 V safety-rated instruments offering advanced troubleshooting performance to capture a wide range of measurements with a single tool. The 370 FC clamp meters log measurements to pinpoint intermittent faults precisely, without the need for the technician to be present. The measurements can then be wirelessly transmitted to the Fluke Connect app on smartphones or tablets and automatically uploaded to the cloud. This improves safety by keeping technicians outside the arc flash zone and away from dangerous moving machinery.

Fluke 370 FC models are:
374 FC ( 905-5911 ) 600 A, 6000 Ω
375 FC ( 905-5917 ) 600 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz
376 FC ( 905-5914 ) 999.9 A, 500 mV, 60.00 kΩ, 5 - 500.0 Hz.

Features & Benefits


• Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• True RMS voltage and current for accurate measurements on non-linear signals
• Expanded measurement range to 2500 A ac with the iFlex flexible current probes, which provide access to large conductors in tight spaces
• Integrated variable frequency drive low pass filter for accurate motor drive measurements (376 FC and 375 FC models only)
• 500 mV dc measurement range to interface with other accessories (376 FC and 375 FC models only)
• Connect your meter to your smartphone with Fluke Connect Measurements
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• Compatible with TPAK magnetic hanging strap

Supplied with

TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)

FLUKE 375 FC True RMS AC/DC Clamp Meter - 370 FC Series


Pinpoint intermittent faults when they happen for efficient troubleshooting with the versatile 375 FC clamp meter from FLUKE. You can use it to measure voltage up to 1000V AC/DC and current up to 600A. Just clamp it in place and leave it to monitor your set up without the need for a technician to be present. Proprietary in-rush measurement technology filters out noise, allowing you to see the motor starting current exactly as the circuit protection sees it. Thanks to Bluetooth connectivity, it's a cinch to upload your results to the cloud using the FLUKE app.

Fluke 375 FC Features & Benefits


• True-RMS response means you can accurately measure voltage and current, even on non-linear signals
• Supplied with a soft carrying case, so it stays protected while in transit
• Powered by 2 x AA batteries for convenient operation
• Light weight of 388g makes it easy to take with you into the field

Applications


• Industrial control systems
• HVAC servicing
• Commercial buildings

Can I use the Fluke375 FC clamp meter to test VFDs?


Yes. Thanks to the meter's integrated low-pass filter, it will attenuate unwanted high-frequency signals to give you accurate motor drive measurements, allowing you to reliably test your VFD equipment.
