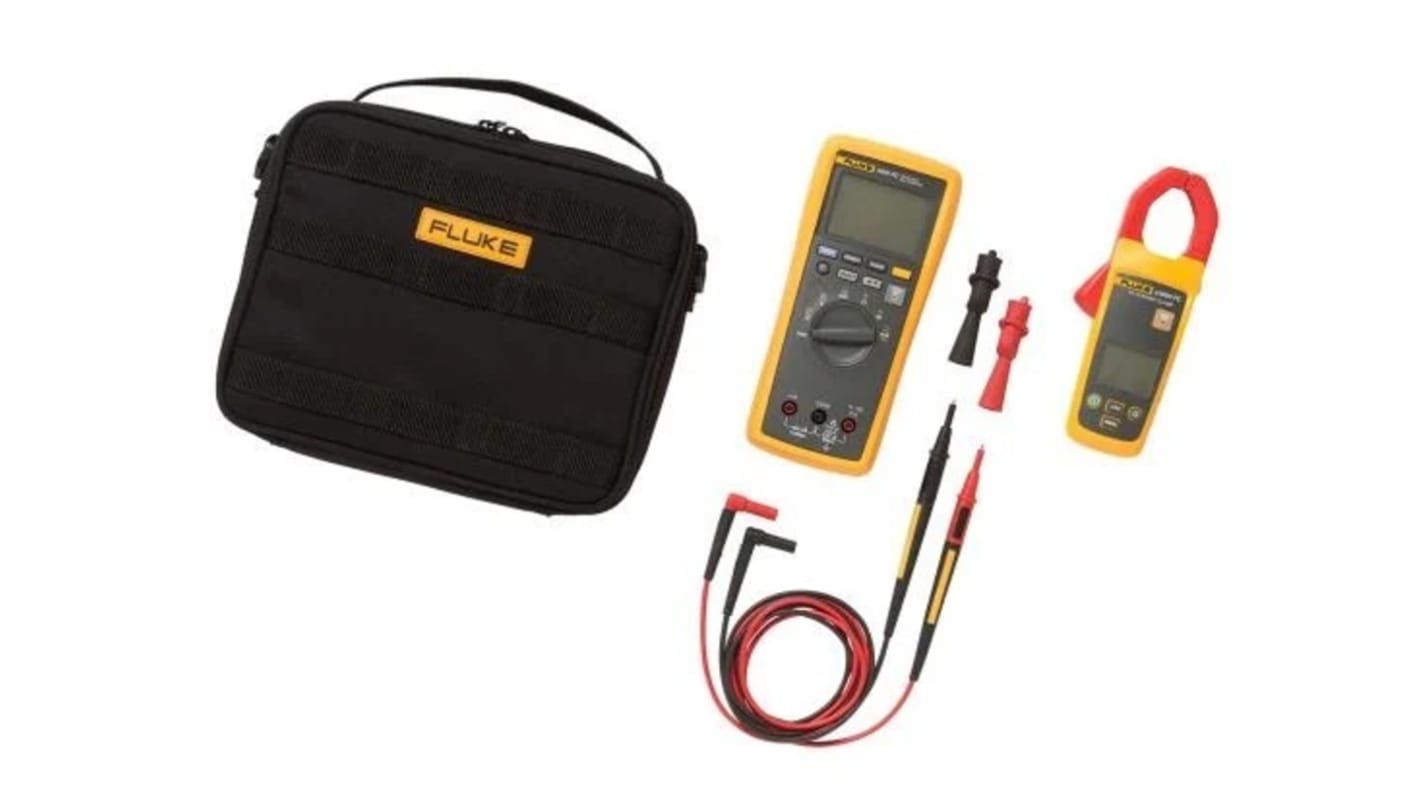

Fluke -A3000FC KIT Clamp Meter, 60 mA 400 A ac 1000 V dc 600 mV ac CAT III

RS Stock No.:: 287-5607
Mfr. Part No.:: FLK-A3000FC KIT
Brand:: Fluke

Fluke -A3000FC KIT Clamp Meter, 60 mA 400 A ac 1000 V dc 600 mV ac CAT III

Subtotal (1 unit)*

£582.00

(exc. VAT)

£698.40

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

2 unit(s) shipping from 29 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£582.00

*price indicative

RS Stock No.:: 287-5607
Mfr. Part No.:: FLK-A3000FC KIT
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Clamp Meter
	Maximum DC Current Measurement	60mA
	Resistance Resolution	0.1Ω
	Maximum AC Voltage Measurement	600mV ac
	Maximum DC Voltage Measurement	1000V dc
	Maximum Resistance Measurement	600Ω
	Model Number	-A3000FC KIT
	Maximum Jaw Opening	34mm
	DC Current Accuracy	0.5 %
	DC Current Resolution	10μA
	Resistance Measurement Accuracy	0.5 %
	AC Voltage Resolution	0.1mV ac
	AC Current Resolution	100μA
	Minimum Operating Temperature	-10°C
	AC Voltage Accuracy	2 %
	DC Voltage Resolution	0.1 mV dc
	AC Current Accuracy	1.5 %
	Clamp Meter Type	AC Current Clamp Meter
	DC Voltage Accuracy	0.9 %
	Maximum Operating Temperature	50°C
	Height	203mm
	Weight	340g
	Length	207mm
	Width	93mm
	Standards/Approvals	CE, FCC: T68-FBLE IC: 6627A-FBLE, CSA
	Safety Category Level	CAT III
	Battery Life	250h
	Display Type	LCD
	Power Source	Battery
	Safety Category Voltage	600V
	Battery Type	2 x AA
	Maximum AC Current Measurement	400A ac
	Maximum Temperature Measurement	60°C

	Select all
	Brand Fluke
	Product Type Clamp Meter
	Maximum DC Current Measurement 60mA
	Resistance Resolution 0.1Ω
	Maximum AC Voltage Measurement 600mV ac
	Maximum DC Voltage Measurement 1000V dc
	Maximum Resistance Measurement 600Ω
	Model Number -A3000FC KIT
	Maximum Jaw Opening 34mm
	DC Current Accuracy 0.5 %
	DC Current Resolution 10μA
	Resistance Measurement Accuracy 0.5 %
	AC Voltage Resolution 0.1mV ac
	AC Current Resolution 100μA
	Minimum Operating Temperature -10°C
	AC Voltage Accuracy 2 %
	DC Voltage Resolution 0.1 mV dc
	AC Current Accuracy 1.5 %
	Clamp Meter Type AC Current Clamp Meter
	DC Voltage Accuracy 0.9 %
	Maximum Operating Temperature 50°C
	Height 203mm
	Weight 340g
	Length 207mm
	Width 93mm
	Standards/Approvals CE, FCC: T68-FBLE IC: 6627A-FBLE, CSA
	Safety Category Level CAT III
	Battery Life 250h
	Display Type LCD
	Power Source Battery
	Safety Category Voltage 600V
	Battery Type 2 x AA
	Maximum AC Current Measurement 400A ac
	Maximum Temperature Measurement 60°C

Datasheet - FLK-A3000FC KIT

COO (Country of Origin):: CN

Fluke Clamp Meter, 34mm Maximum Jaw Opening, 600V Safety Category Voltage - FLK-A3000FC KIT

This clamp meter is a handheld instrument designed to measure AC and DC electrical parameters in field and workshop settings. It operates from battery supply and displays readings on an LCD, offering a compact solution for technicians who need portable current, voltage and resistance diagnostics within industrial safety limits.

Features and Benefits:

• AC current accuracy 1.5% provides precise alternating current readings
• DC voltage accuracy 0.9% delivers high-accuracy DC measurements
• Resistance range 600Ω enables circuit continuity and load checks
• AC/DC current resolution 0.01mA detects very small currents
• Safety category CAT III 600V protects measurements in building installations
• Battery life 250h supports extended on-site use

Applications

• Suitable for measuring small AC currents up to 60mA
• Ideal for low-voltage DC troubleshooting to 600mV
• Used with control panels requiring CAT III 600V compliance
• Can be used for resistance checks in maintenance tasks
• Suitable for portable diagnostics where compact jaw access is needed

What battery type does it use and how long will they last?

It runs on two AA cells and provides approximately 250h of operation under typical use.

How large a conductor can be accepted in the jaws?

The clamp opens to 34mm allowing it to encircle small bundles and single conductors.

What are the environmental operating limits?

It functions between -10°C and 50°C and is rated for handheld field use within that range.

What display and weight considerations affect portability?

The unit uses an LCD for readouts and weighs 340 g, supporting easy carriage and one-handed operation.
