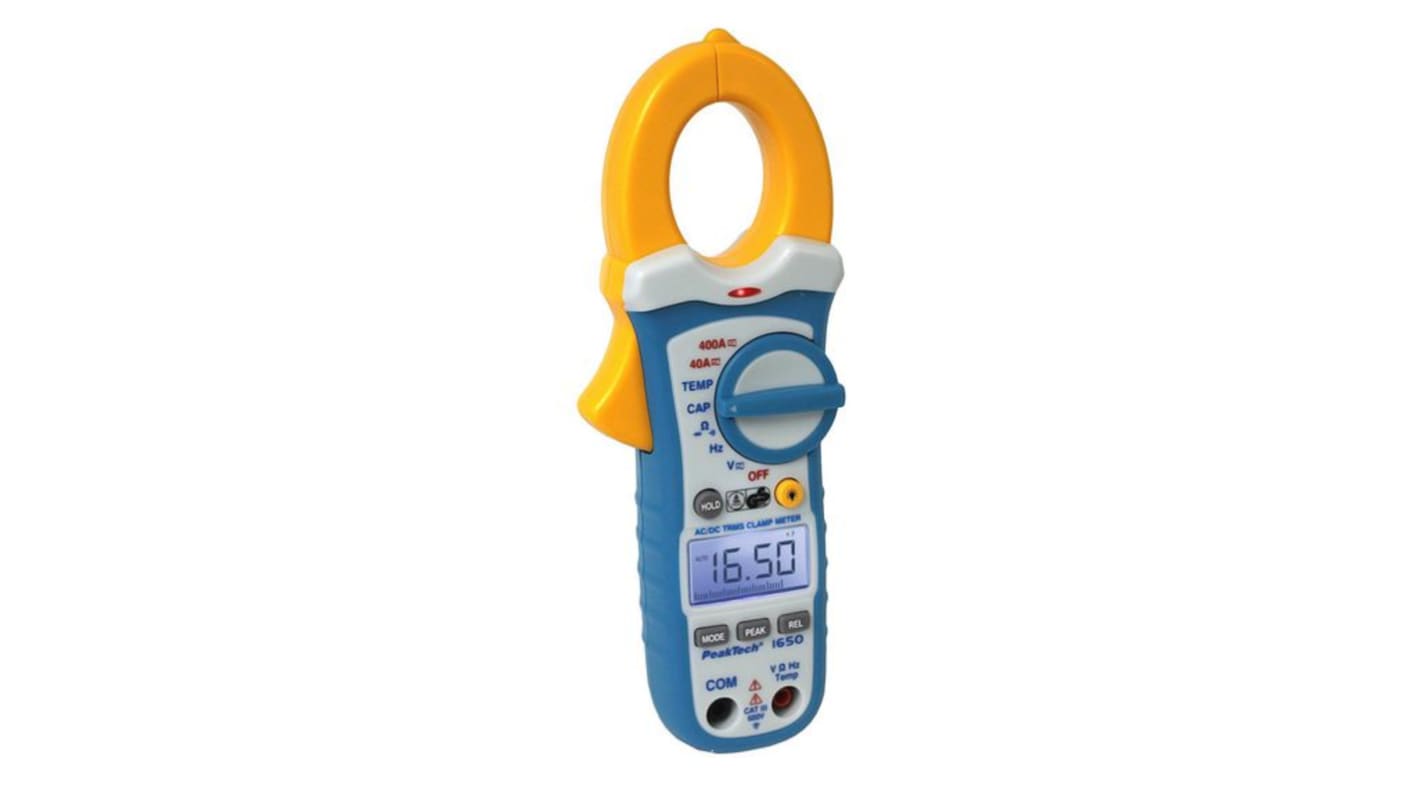

PeakTech P1650 Clamp Meter, 400 A 400 A 600 V dc 400 mV ac CAT III
- RS Stock No.:
- 285-8569
- Distrelec Article No.:
- 110-95-130
- Mfr. Part No.:
- P1650
- Brand:
- PeakTech
Subtotal (1 unit)*
£68.58
(exc. VAT)
£82.30
(inc. VAT)
FREE delivery for orders over £60.00
- 2 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £68.58 |
*price indicative
- RS Stock No.:
- 285-8569
- Distrelec Article No.:
- 110-95-130
- Mfr. Part No.:
- P1650
- Brand:
- PeakTech
Select all | Attribute | Value |
|---|---|---|
| Brand | PeakTech | |
| Product Type | Clamp Meter | |
| Maximum DC Current Measurement | 400A | |
| Maximum AC Voltage Measurement | 400mV ac | |
| Maximum DC Voltage Measurement | 600V dc | |
| Maximum Resistance Measurement | 40mΩ | |
| Model Number | P1650 | |
| Temperature Resolution | 1°C | |
| Minimum Operating Temperature | -20°C | |
| DC Voltage Accuracy | 1.8 % | |
| AC Voltage Accuracy | 0.8 % | |
| AC Voltage Resolution | 100V ac | |
| DC Current Accuracy | 1.8 % | |
| DC Current Resolution | 100mA | |
| AC Current Resolution | 100mA | |
| AC Current Accuracy | 1.8 % | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| Temperature Measurement Accuracy | 3 % | |
| Maximum Operating Temperature | 760°C | |
| Height | 200mm | |
| Length | 68mm | |
| Weight | 190g | |
| Standards/Approvals | No | |
| Width | 40mm | |
| True RMS | Yes | |
| Functions Measured | DC Voltage, Resistance, Continuity, Duty Cycle, DC Current, AC, Frequency, Diode Test, Power | |
| Safety Category Level | CAT III | |
| Display Type | LCD | |
| Power Source | Battery | |
| Maximum Conductor Size | 30mm | |
| Maximum AC Current Measurement | 400A | |
| Safety Category Voltage | 600V ac | |
| Select all | ||
|---|---|---|
Brand PeakTech | ||
Product Type Clamp Meter | ||
Maximum DC Current Measurement 400A | ||
Maximum AC Voltage Measurement 400mV ac | ||
Maximum DC Voltage Measurement 600V dc | ||
Maximum Resistance Measurement 40mΩ | ||
Model Number P1650 | ||
Temperature Resolution 1°C | ||
Minimum Operating Temperature -20°C | ||
DC Voltage Accuracy 1.8 % | ||
AC Voltage Accuracy 0.8 % | ||
AC Voltage Resolution 100V ac | ||
DC Current Accuracy 1.8 % | ||
DC Current Resolution 100mA | ||
AC Current Resolution 100mA | ||
AC Current Accuracy 1.8 % | ||
Clamp Meter Type AC/DC Clamp Meter | ||
Temperature Measurement Accuracy 3 % | ||
Maximum Operating Temperature 760°C | ||
Height 200mm | ||
Length 68mm | ||
Weight 190g | ||
Standards/Approvals No | ||
Width 40mm | ||
True RMS Yes | ||
Functions Measured DC Voltage, Resistance, Continuity, Duty Cycle, DC Current, AC, Frequency, Diode Test, Power | ||
Safety Category Level CAT III | ||
Display Type LCD | ||
Power Source Battery | ||
Maximum Conductor Size 30mm | ||
Maximum AC Current Measurement 400A | ||
Safety Category Voltage 600V ac | ||
- COO (Country of Origin):
- CN
