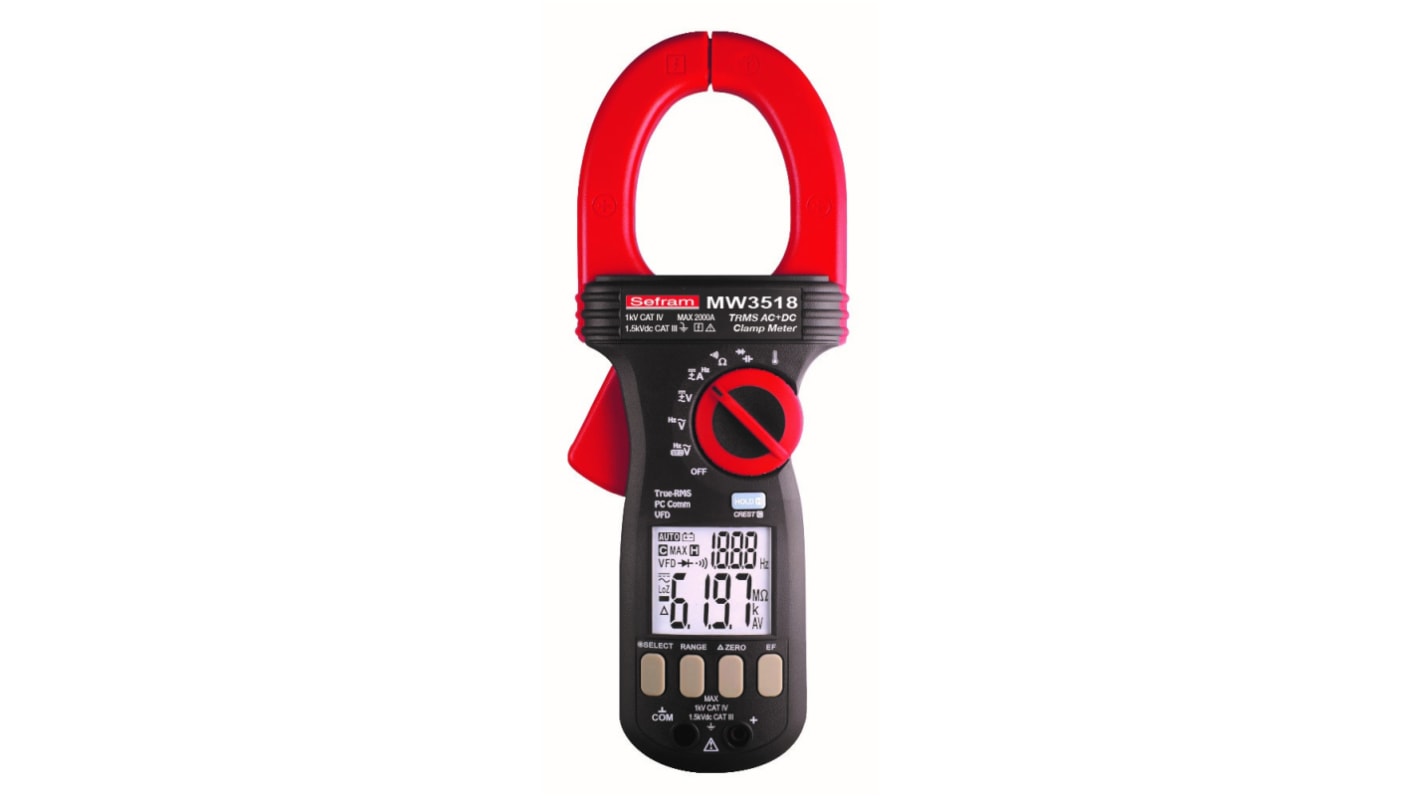

Sefram MW3518 Clamp Meter, 2000 A dc 200 A ac 1000 V dc 1000 V ac Enclosed Non-Contact Voltage Detector, UKAS

RS Stock No.:: 286-4593
Mfr. Part No.:: MW3518
Brand:: Sefram

Sefram MW3518 Clamp Meter, 2000 A dc 200 A ac 1000 V dc 1000 V ac Enclosed Non-Contact Voltage Detector, UKAS

Subtotal (1 unit)*

£346.48

(exc. VAT)

£415.78

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

9 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£346.48

*price indicative

RS Stock No.:: 286-4593
Mfr. Part No.:: MW3518
Brand:: Sefram

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sefram
	Product Type	Clamp Meter
	Maximum DC Current Measurement	2000A dc
	Maximum AC Voltage Measurement	1000V ac
	Maximum DC Voltage Measurement	1000V dc
	Maximum Resistance Measurement	60kΩ
	Model Number	MW3518
	DC Voltage Accuracy	1.2 %
	Clamp Meter Type	AC/DC Clamp Meter
	Temperature Measurement Accuracy	0.3 %
	DC Current Accuracy	2 %
	AC Current Accuracy	2 %
	AC Current Resolution	200A
	Temperature Resolution	1000°C
	Minimum Operating Temperature	0°C
	AC Voltage Accuracy	1.2 %
	DC Current Resolution	200A
	Maximum Jaw Opening	55mm
	Resistance Measurement Accuracy	0.5 %
	Maximum Operating Temperature	40°C
	Width	97mm
	Standards/Approvals	CE
	Length	264mm
	Weight	608g
	Height	43mm
	True RMS	Yes
	Functions Measured	Frequency, Resistance, Voltage, Current
	Battery Type	AA
	Safety Category Level	Enclosed
	Calibrated	UKAS
	Safety Category Voltage	1500V dc
	Power Source	Battery
	Display Type	LCD
	Maximum Temperature Measurement	1000°C
	Maximum AC Current Measurement	200A ac
	Non-Contact Voltage Detector	Yes

	Select all
	Brand Sefram
	Product Type Clamp Meter
	Maximum DC Current Measurement 2000A dc
	Maximum AC Voltage Measurement 1000V ac
	Maximum DC Voltage Measurement 1000V dc
	Maximum Resistance Measurement 60kΩ
	Model Number MW3518
	DC Voltage Accuracy 1.2 %
	Clamp Meter Type AC/DC Clamp Meter
	Temperature Measurement Accuracy 0.3 %
	DC Current Accuracy 2 %
	AC Current Accuracy 2 %
	AC Current Resolution 200A
	Temperature Resolution 1000°C
	Minimum Operating Temperature 0°C
	AC Voltage Accuracy 1.2 %
	DC Current Resolution 200A
	Maximum Jaw Opening 55mm
	Resistance Measurement Accuracy 0.5 %
	Maximum Operating Temperature 40°C
	Width 97mm
	Standards/Approvals CE
	Length 264mm
	Weight 608g
	Height 43mm
	True RMS Yes
	Functions Measured Frequency, Resistance, Voltage, Current
	Battery Type AA
	Safety Category Level Enclosed
	Calibrated UKAS
	Safety Category Voltage 1500V dc
	Power Source Battery
	Display Type LCD
	Maximum Temperature Measurement 1000°C
	Maximum AC Current Measurement 200A ac
	Non-Contact Voltage Detector Yes

COO (Country of Origin):: TW

The Sefram multimeter clamp is a versatile tool enabling TRMS AC+DC measurements in both current and voltage, with a maximum current measurement capability of 2000A, catering to industrial requirements. It can measure DC voltages up to 1500V and AC voltages up to 1000V, making it suitable for photovoltaic applications. With its classification as 1000V AC/DC - CAT IV and 1500V DC CAT III, there's no need for a specific adapter for DC voltage measurements up to 1500V. Additionally, it offers Advanced functions such as frequency, resistance (up to 40MΩ), capacitance (up to 2000μF), and temperature measurements, ensuring it meets various control and troubleshooting needs.

Current measurement up to 2000A TRMD AC + DC (400Hz max)

Voltage measurement up to 1000V AC + DC (400Hz max) and 1500V DC

Voltage measurement on Variable Frequency Drive (VFD) up to 1000V

Frequency measurement up to 2000Hz

Resistance measurement up to 40MΩ

Capacitance measurement up to 2000μF

Temperature measurement (thermocouple type K provided)

Continuity measurement with buzzer

Diode testing

jaws opening of 55mm maximum

Non contact voltage detection (Electric field detection)

Double measurement display voltage with frequency or current

Auto-ranging mode

Backlighted LCD display

5 MS crest-max capture mode

Zero offset mode

Automatic power-off mode

Hold function

LCD display 6000 points

Safety 1000V AC/DC - CAT IV and 1500V DC CATIII
