BK Precision BK316 Clamp Meter, 100A dc, Max Current 100A ac CAT II 600V With RS Calibration

View all Clamp Meters

Subtotal (1 unit)*

£233.70

(exc. VAT)

£280.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
  • Plus 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£233.70

*price indicative

RS Stock No.:
192-5011
Mfr. Part No.:
BK316
Brand:
BK Precision
Find similar products by selecting one or more attributes.
Select all

Brand

BK Precision

Absolute Maximum AC Current Measurement

100A ac

Absolute Maximum DC Current Measurement

100A dc

Absolute Maximum AC Voltage Measurement

600V ac

Absolute Maximum DC Voltage Measurement

600V dc

Absolute Maximum Resistance Measurement

10kΩ

Model Number

BK316

Calibrated

RSCAL

AC Current Measurement Resolution

1mA

DC Current Measurement Resolution

1mA

Best DC Current Accuracy

4.5% ± 10 Digits

Clamp Meter Type

Mini AC/DC Clamp Meter

Best AC Current Accuracy

3.5% ± 10 Digits

Best AC Voltage Accuracy

1.5% ± 5 Digits

Best DC Voltage Accuracy

1% ± 2 Digits

Functions Measured

AC Current, AC Voltage, DC Current, DC Voltage, Resistance

Maximum Operating Temperature

+40°C

Display Type

LCD

Best Resistance Measurement Accuracy

1% ± 3 Digits

Safety Category

CAT II 600 V, CAT III 300V

Dimensions

202 x 70 x 34mm

Length

202mm

AC Voltage Measurement Resolution

100mV

Width

70mm

Height

34mm

Minimum Operating Temperature

0°C

Power Source

Battery

DC Voltage Measurement Resolution

100mV

Battery Type

1.5V AAA

Resistance Measurement Resolution

1Ω

Safety Category Level

CAT II, CAT III

Weight

180g

Battery Life

45 h

Safety Category Voltage

300 V, 600V

COO (Country of Origin):
TW

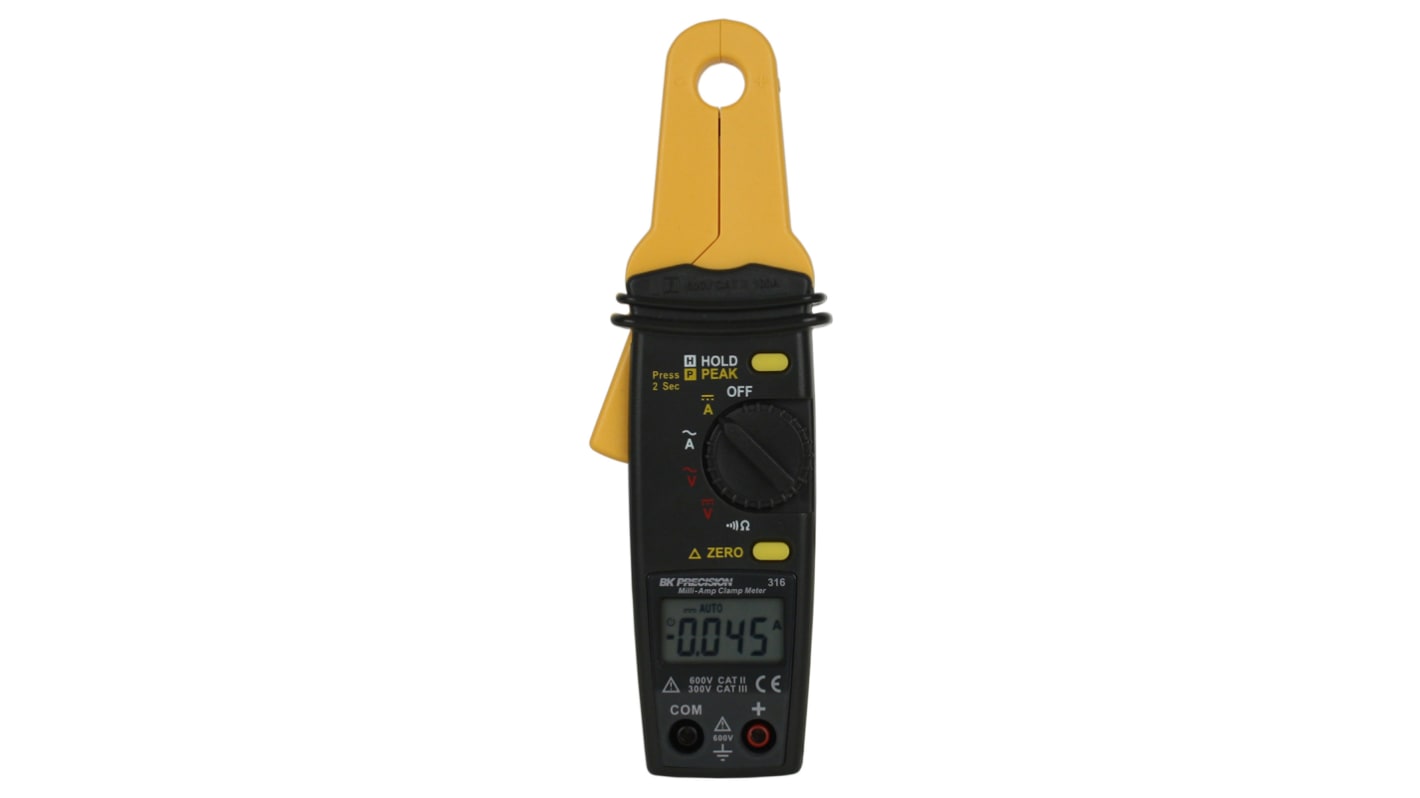

The 316 is the perfect Clamp Meter for many electronic applications. Because this meter was designed to measure smaller amounts of current it is ideal for quick non-intrusive current measurements.

Auto power off
4 Digit LCD display
Low battery indicator
0.49" Clamp opening
Overload protection
AC/DC Amp ranges 10A, 80A & 100A
1mA (10A range) & 10mA resolution
Measures current between 5% to 100% full scale
Measures AC/DC Volts to 600V
Measures resistance to 10K ohms
One year warranty
