24 V dc, 60 V dc, 110 V dc, 220 V dc, 230V ac Auxiliary Release Auxiliary Contact for use with 1492-D DC Circuit
- RS Stock No.:
- 125-1543
- Mfr. Part No.:
- 189-AL20
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£21.32
(exc. VAT)
£25.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £21.32 |
*price indicative
- RS Stock No.:
- 125-1543
- Mfr. Part No.:
- 189-AL20
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Range | Bulletin | |
Series | 189-AL | |
For Use With | 1492-D DC Circuit Breaker, 188 Regional Circuit Breakers | |
Type | Auxiliary Release | |
Rated Control Voltage | 24 V dc, 60 V dc, 110 V dc, 220 V dc, 230 V ac, 400V ac | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Range Bulletin | ||
Series 189-AL | ||
For Use With 1492-D DC Circuit Breaker, 188 Regional Circuit Breakers | ||
Type Auxiliary Release | ||
Rated Control Voltage 24 V dc, 60 V dc, 110 V dc, 220 V dc, 230 V ac, 400V ac | ||
- COO (Country of Origin):
- BG
1492 SP Series - Accessories
Professional range of Allen Bradley general purpose MCBs accessories from the 1492 series. Accessories include auxiliary contacts, single phase busbars, busbar end caps, protective shrouds, shunt trips and terminal power feeds. All accessories are highly reliable and excellent quality.

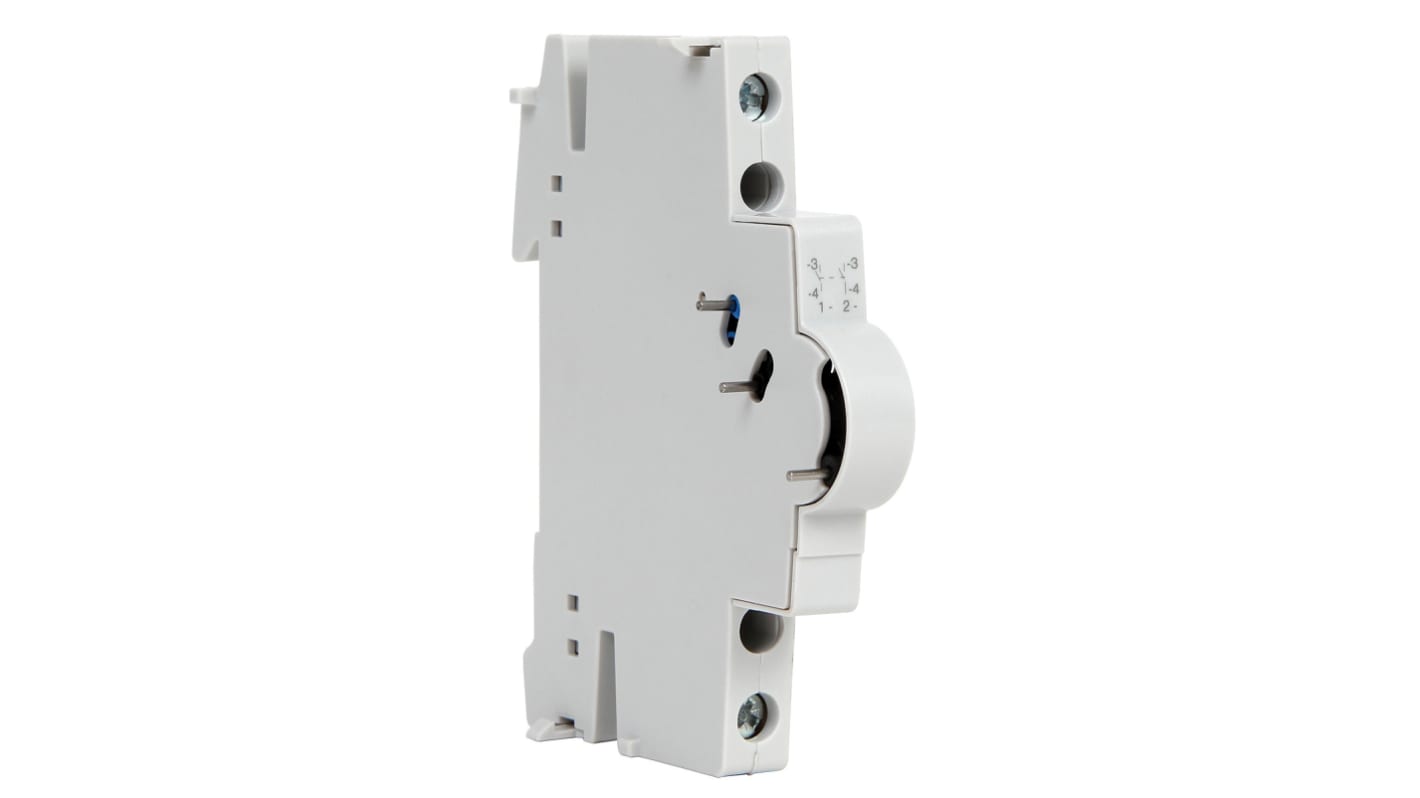

Allen Bradley Auxiliary Release Circuit Trip For Use With 1492-D DC Circuit Breaker, 2NO - 189-AL20
Use this auxiliary release circuit trip from Rockwell Automation's Allen Bradley range to detect and isolate faults in circuit breakers. The unit is designed for use with mini circuit breakers in the 1492 series, so it's easy to put together a compatible setup. The housing is made of a thermoplastic material that offers impact resistance and effective insulation for protection against electric shocks. As it has a wide operating voltage range of 24 to 220V DC (direct current), the trip is a versatile choice. You'll commonly find it used in low-voltage applications like domestic distribution boards.
• Low current rating of 4A for energy efficiency and low heat dissipation
• DIN rail mounting is quick and simple without the need for specialised tools
• Compact dimensions of 85 (length) x 8.8 (width) x 64.2mm (height) for installation in tight spaces
• DIN rail mounting is quick and simple without the need for specialised tools
• Compact dimensions of 85 (length) x 8.8 (width) x 64.2mm (height) for installation in tight spaces
Applications
• CE (Conformitè Europëenne)
• RoHS (Restriction of Hazardous Substances)
• RoHS (Restriction of Hazardous Substances)
When do I need to replace this auxiliary contact?
For safety, you should replace this component when you notice that it's been blackened or corroded by electrical heat.
