RS PRO, 47Ω 800W Wire Wound Chassis Mount Resistor ±5%

View all Chassis Mount Resistors
Save 28% when you buy 40 units

Subtotal (1 unit)*

£98.95

(exc. VAT)

£118.74

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£98.95
5 - 9£92.02
10 - 19£85.10
20 - 39£78.17
40 +£70.26

*price indicative

RS Stock No.:
185-2356
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Resistance

47Ω

Power Rating

800W

Series

R800

Package/Case

Aluminium Housed

Tolerance

±5%

Technology

Wire Wound

Termination Style

Wire Lead

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+250°C

Minimum Temperature Coefficient

-200ppm/°C

Maximum Temperature Coefficient

+200ppm/°C

Dimensions

400 x 60 x 30mm

Overall Height

30mm

Overall Length

400mm

Overall Width

60mm

COO (Country of Origin):
IN

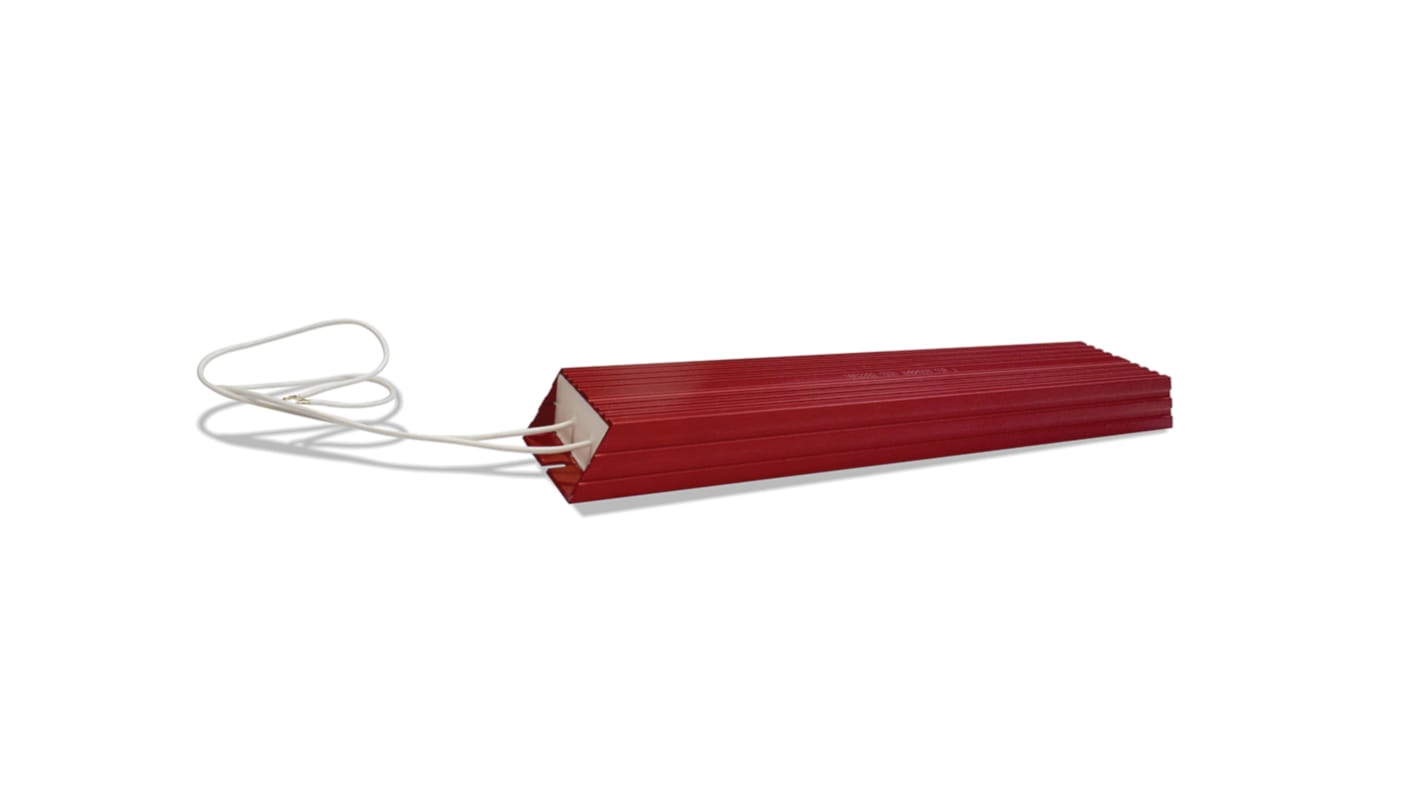

RS PRO Braking Resistor


The RS PRO R800 series aluminium housed metal-clad braking resistor has a resistance of 47ohm and power rating value of 800W. Its dimensions are 400mm x 60mm x 30mm (L x W x H). This metal encased braking resistor is designed for direct heat sink attachment.

Features and Benefits


• High power density
• Heat sink mountable for increased power dissipation
• Operating temperature ranges between -25°C and 250°C
• Temperature coefficient ranges between -200ppm/°C and 200ppm/°C
• Tolerance: ±5%
• Dielectric strength: 1500VAC-rms for 1 minute
• Humidity: 40°C, 90% Rh, 240 hours
• Minimum insulation resistance: 20Mohm

Certifications


• UL approved (cables)
