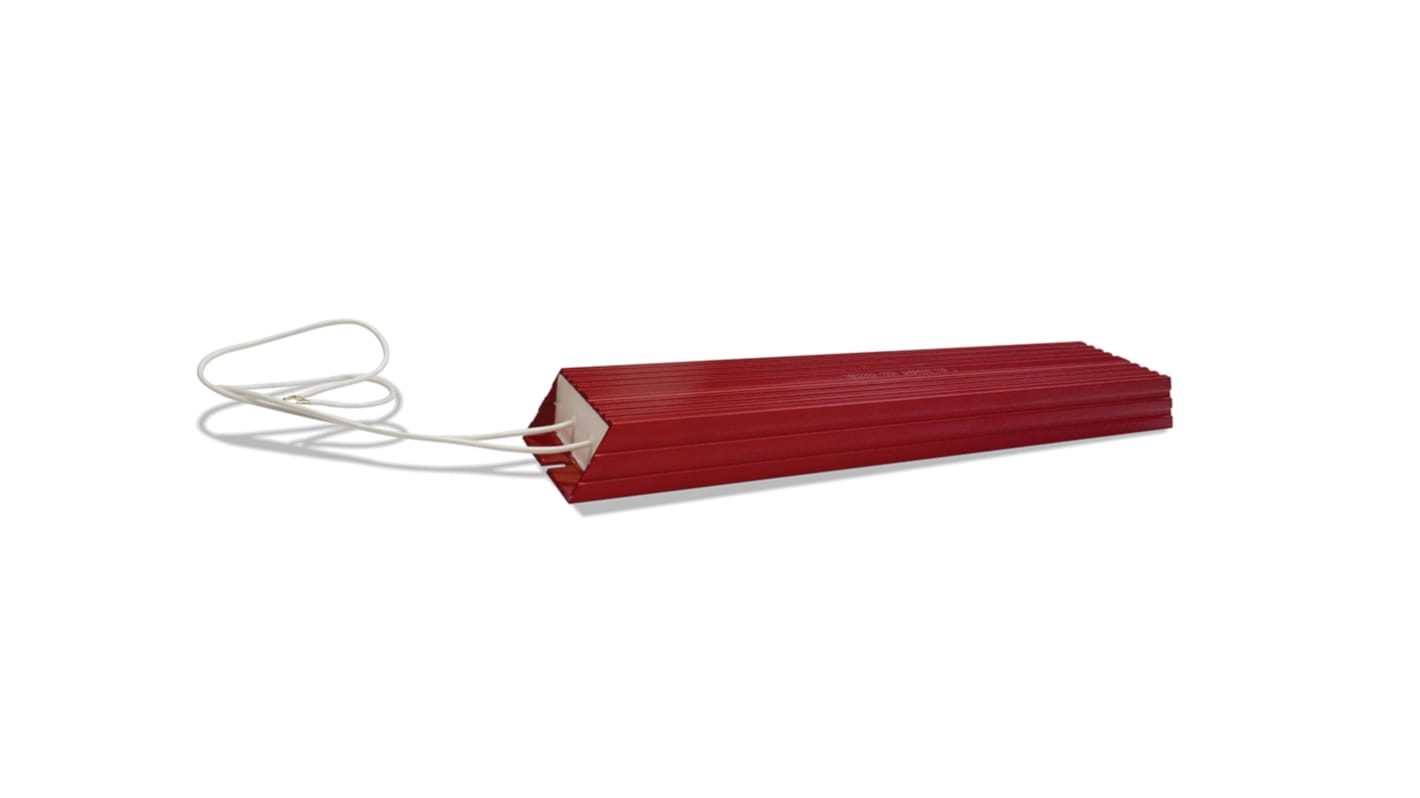

RS PRO, 22Ω 800W Wire Wound Chassis Mount Resistor ±5%
- RS Stock No.:
- 185-2354
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£98.95
(exc. VAT)
£118.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £98.95 |
5 - 9 | £96.38 |
10 - 19 | £93.91 |
20 + | £91.54 |
*price indicative
- RS Stock No.:
- 185-2354
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Resistance | 22Ω | |
Power Rating | 800W | |
Series | R800 | |
Package/Case | Aluminium Housed | |
Tolerance | ±5% | |
Technology | Wire Wound | |
Termination Style | Wire Lead | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +250°C | |
Minimum Temperature Coefficient | -200ppm/°C | |
Maximum Temperature Coefficient | +200ppm/°C | |
Dimensions | 400 x 60 x 30mm | |
Overall Length | 400mm | |
Overall Height | 30mm | |
Overall Width | 60mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Resistance 22Ω | ||
Power Rating 800W | ||
Series R800 | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Wire Lead | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +250°C | ||
Minimum Temperature Coefficient -200ppm/°C | ||
Maximum Temperature Coefficient +200ppm/°C | ||
Dimensions 400 x 60 x 30mm | ||
Overall Length 400mm | ||
Overall Height 30mm | ||
Overall Width 60mm | ||
