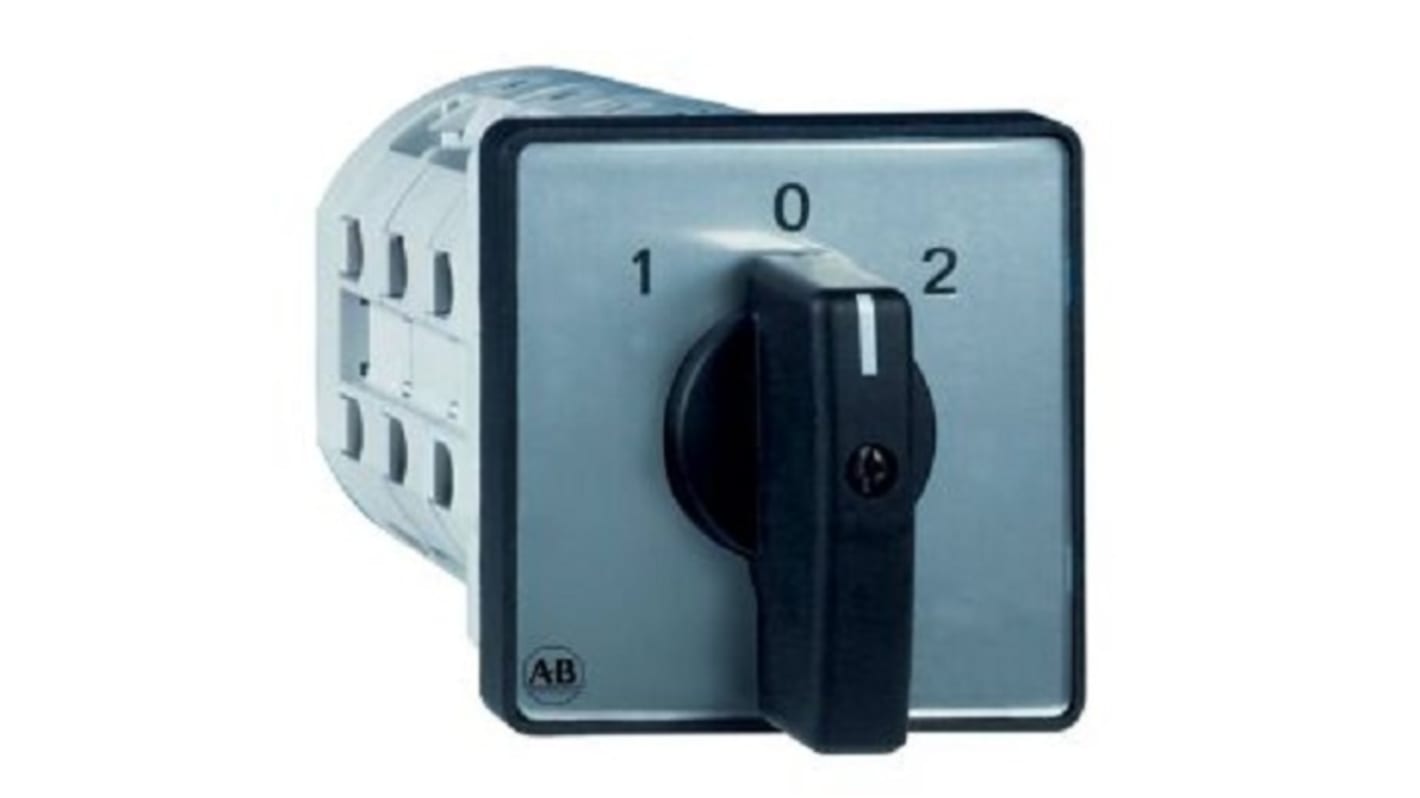

Allen Bradley Guardmaster 4 Position 45 ° 100 A
- RS Stock No.:
- 183-4363
- Distrelec Article No.:
- 302-26-794
- Mfr. Part No.:
- 194L-E12-5261
- Brand:
- Allen Bradley Guardmaster
Subtotal (1 unit)*
£18.11
(exc. VAT)
£21.73
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.11 |
*price indicative
- RS Stock No.:
- 183-4363
- Distrelec Article No.:
- 302-26-794
- Mfr. Part No.:
- 194L-E12-5261
- Brand:
- Allen Bradley Guardmaster
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley Guardmaster | |
| Product Type | Cam Switch | |
| Electrical Phase | 1 | |
| Number of Positions | 4 | |
| Mount Type | DIN Rail, Front, Base | |
| Number of Poles | 6 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP66, IP2 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 100A | |
| Contact Voltage | 690V ac | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CSA C22.2 No. 14, CE, UL 508, IEC 60947-3 | |
| Hazardous Area Certification | NO | |
| Depth | 73.58mm | |
| Width | 175mm | |
| Length | 41.91mm | |
| Mechanical Life | 1000000Operations | |
| Select all | ||
|---|---|---|
Brand Allen Bradley Guardmaster | ||
Product Type Cam Switch | ||
Electrical Phase 1 | ||
Number of Positions 4 | ||
Mount Type DIN Rail, Front, Base | ||
Number of Poles 6 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP66, IP2 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 100A | ||
Contact Voltage 690V ac | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CSA C22.2 No. 14, CE, UL 508, IEC 60947-3 | ||
Hazardous Area Certification NO | ||
Depth 73.58mm | ||
Width 175mm | ||
Length 41.91mm | ||
Mechanical Life 1000000Operations | ||
- COO (Country of Origin):
- PL
IEC Control and Load Switch, Step 0-1-2-3 45°, 12 Amp, 1 Pole, Front / Door
Handle is not supplied and has to be ordered separately 443-0887
