Schneider Electric 3 Position 90 °, Handle Actuator 20 A
- RS Stock No.:
- 654-983
- Mfr. Part No.:
- K2B1002HLH
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£25.73
(exc. VAT)
£30.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.73 |
*price indicative
- RS Stock No.:
- 654-983
- Mfr. Part No.:
- K2B1002HLH
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Rotary Cam Switch | |
| Series | K2 | |
| Electrical Phase | 3, 1 | |
| Number of Positions | 3 | |
| Mount Type | Screw | |
| Angle of Throw | 90 ° | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Actuator Type | Handle | |
| Width | 45mm | |
| Standards/Approvals | EAN, REACH, RoHS, WEEE | |
| Length | 65mm | |
| Hazardous Area Certification | NO | |
| Depth | 77mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Rotary Cam Switch | ||
Series K2 | ||
Electrical Phase 3, 1 | ||
Number of Positions 3 | ||
Mount Type Screw | ||
Angle of Throw 90 ° | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Actuator Type Handle | ||
Width 45mm | ||
Standards/Approvals EAN, REACH, RoHS, WEEE | ||
Length 65mm | ||
Hazardous Area Certification NO | ||
Depth 77mm | ||
- COO (Country of Origin):
- CZ

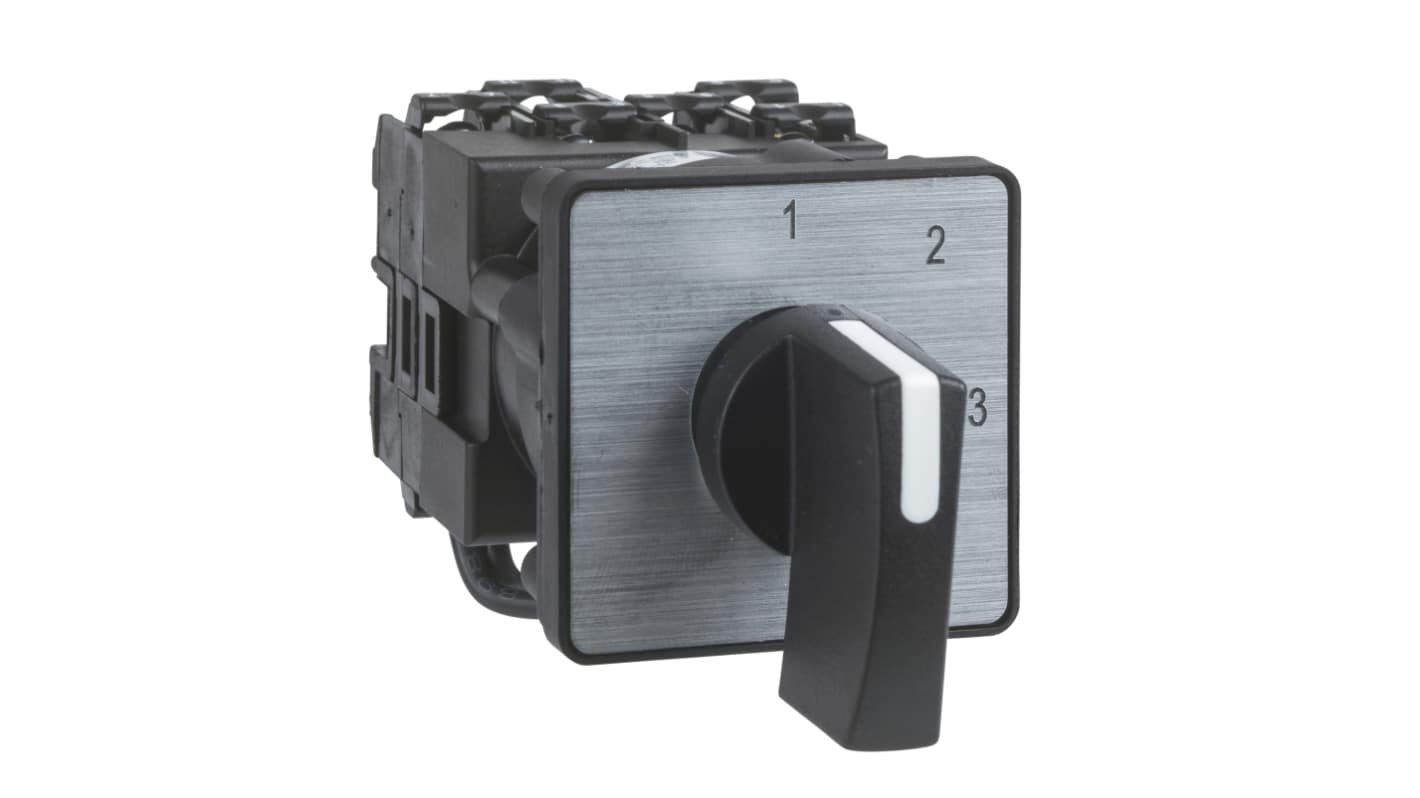

The Schneider Electric Cam switch is designed for robust performance in various industrial applications. This complete cam switch provides a secure mechanism for switching, featuring a multifunctional screw mounting and a front plate with a compact size of 45 x 45 mm. With a thermal current rating of 20 A, it ensures reliable operation while maintaining compliance with international standards for electrical safety. Designed for versatility, it incorporates a black handle for easy operation and is suitable for mounting in different orientations. The durability of this switch is enhanced with a mechanical lifespan of up to 1,000,000 cycles, making it a reliable choice for demanding environments.
Constructed with a 90° switching angle for precise control
IP40 rated for protection against solid objects up to 1 mm in diameter
Electrical durability boasts 600,000 cycles at AC-15 and 200,000 cycles at AC-23, ensuring longevity
Short-circuit protection is provided by a 20 A gG cartridge fuse
Capable of handling a rated insulation voltage of 690 V, meeting various installation needs
Flexible electrical connections with captive screw terminals for both solid and flexible conductor types
Manufactured to comply with IEC 60947-3 and IEC 60947-5-1 standards, ensuring safety and reliability
Designed for a wide ambient air temperature range, from -25°C to 55°C in operation
Compact dimensions with an overall depth of 77 mm, ideal for space-constrained installations
