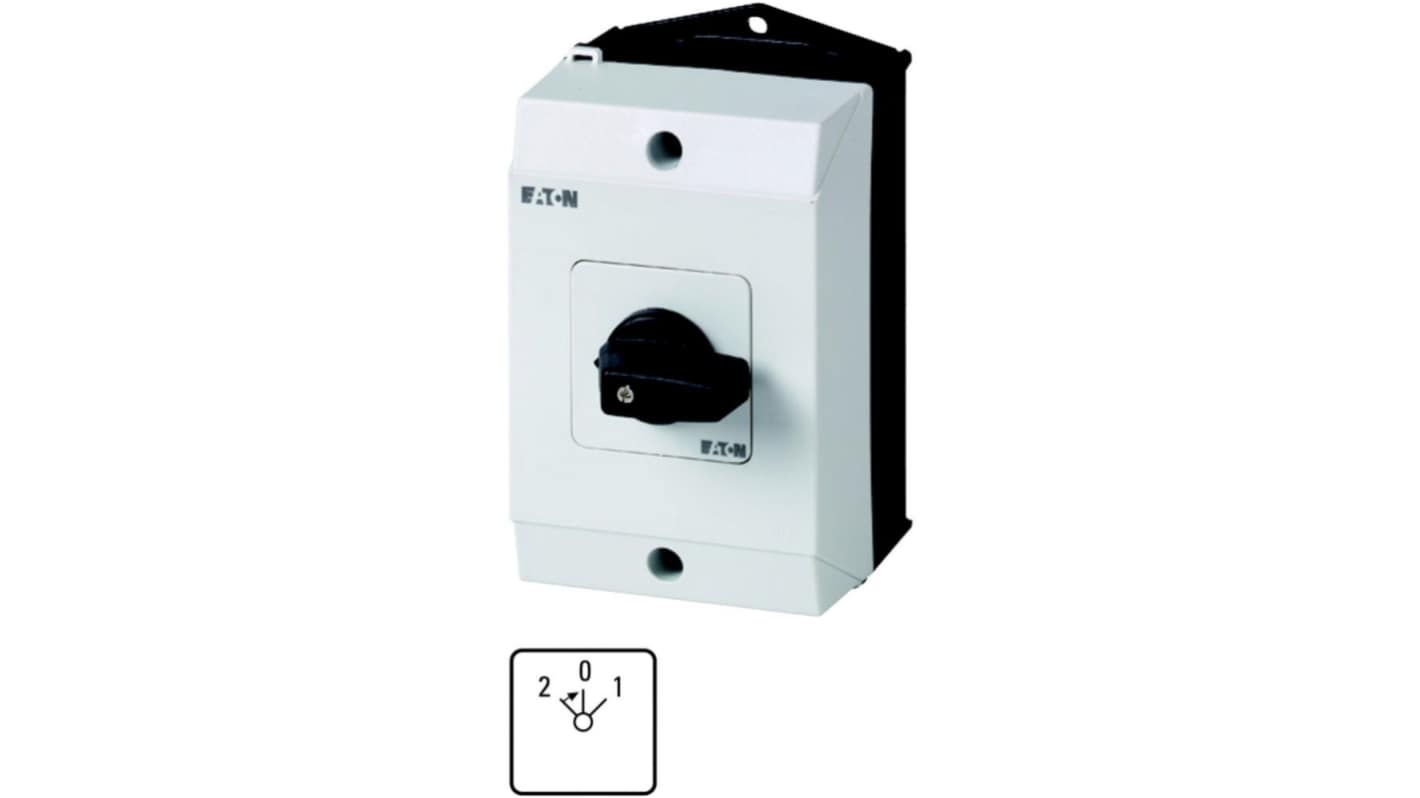

Eaton 3 Position 45 °, Spring Return Actuator 20 A
- RS Stock No.:
- 255-458
- Mfr. Part No.:
- 218980 T0-3-15393/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£73.58
(exc. VAT)
£88.30
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £73.58 |
*price indicative
- RS Stock No.:
- 255-458
- Mfr. Part No.:
- 218980 T0-3-15393/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller T0 | |
| Number of Positions | 3 | |
| Mount Type | Surface | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Contact Voltage | 690V | |
| Actuator Type | Spring Return | |
| Width | 8mm | |
| Length | 137mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | VDE, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, VDE 0660 | |
| Depth | 102mm | |
| Mechanical Life | 400000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller T0 | ||
Number of Positions 3 | ||
Mount Type Surface | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Contact Voltage 690V | ||
Actuator Type Spring Return | ||
Width 8mm | ||
Length 137mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals VDE, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, VDE 0660 | ||
Depth 102mm | ||
Mechanical Life 400000Operations | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
The Eaton Moeller series T0 Universal control switch is expertly designed to deliver outstanding performance in a variety of applications. It showcases a robust construction, ensuring durability and reliability even in challenging environments. With its ability to provide momentary or maintained operation, the control switch is versatile enough to adapt to various control needs. Features like a spring return to 0 and an optional off position enhance user experience, making it straightforward to operate.
Robust design for enhanced longevity in rugged conditions
Certifications ensuring adherence to international standards
Compact size ideal for limited space applications
High degree of protection against dust and moisture
Temperature resilience suitable for various operating conditions
Shock resistance tailored for mechanical reliability
Multiple switch positions to manage different operational requirements
