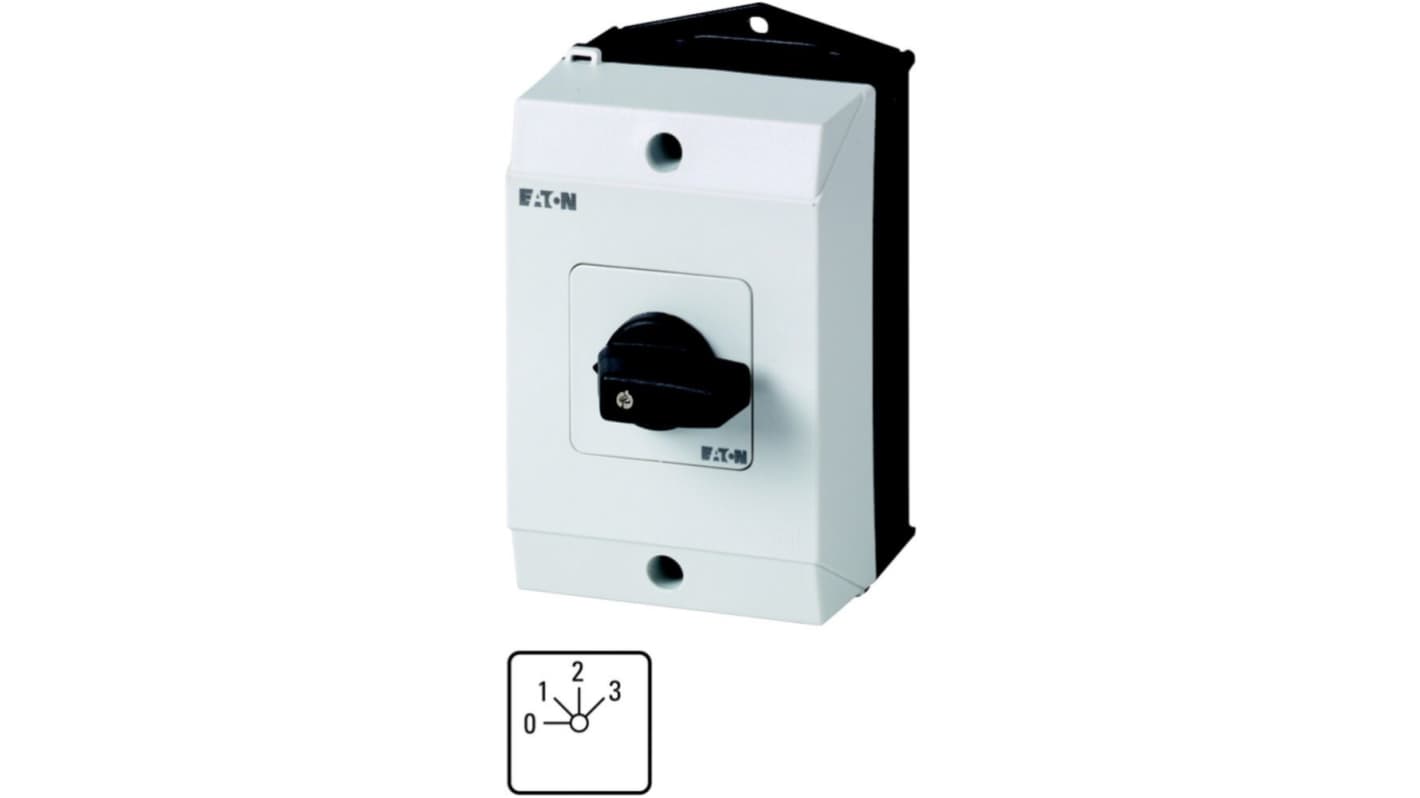

Eaton 4 Position 45 °, Toggle Actuator 20 A
- RS Stock No.:
- 255-325
- Mfr. Part No.:
- 222611 T0-2-171/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£49.98
(exc. VAT)
£59.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.98 |
*price indicative
- RS Stock No.:
- 255-325
- Mfr. Part No.:
- 222611 T0-2-171/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller | |
| Product Type | Cam Switch | |
| Number of Positions | 4 | |
| Mount Type | Surface | |
| Number of Poles | 2 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Maximum Operating Temperature | 40°C | |
| Contact Voltage | 690V ac | |
| Actuator Type | Toggle | |
| Width | 8mm | |
| Hazardous Area Certification | NO | |
| Length | 137mm | |
| Depth | 102mm | |
| Standards/Approvals | VDE 0660, VDE, IEC/EN 60947-3, IEC/EN 60947, IEC/EN 60204 | |
| Mechanical Life | 400000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller | ||
Product Type Cam Switch | ||
Number of Positions 4 | ||
Mount Type Surface | ||
Number of Poles 2 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Maximum Operating Temperature 40°C | ||
Contact Voltage 690V ac | ||
Actuator Type Toggle | ||
Width 8mm | ||
Hazardous Area Certification NO | ||
Length 137mm | ||
Depth 102mm | ||
Standards/Approvals VDE 0660, VDE, IEC/EN 60947-3, IEC/EN 60947, IEC/EN 60204 | ||
Mechanical Life 400000Operations | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
The Eaton Moeller series T0 Step Switch is a robust and versatile control switch designed for efficient and reliable operation in various applications. This surface-mounted device boasts a maintained actuator function with a unique 0 (Off) position, making it ideal for seamless integration into your existing systems. With a compact design and a temperature range of -25°C to 40°C, it ensures durability even in challenging environments. The step switch is suitable for ground mounting and provides an impressive degree of protection with an IP65 rating, ensuring safety against dust and moisture. Its exceptional electromagnetic compatibility and corrosion resistance further enhance performance, allowing it to meet rigorous industry standards while offering operators ease of use and peace of mind.
Offers a maintained position with clear operational feedback
Dust and moisture resistant to protect against harsh conditions
Engineered for high reliability with minimal maintenance needs
Lightweight design ensures easy installation and handling
Versatile application with single-pole functionality for various configurations
Compliant with multiple international standards for enhanced safety
Designed for a high number of mechanical operations, ensuring longevity
User-friendly operation with an intuitive front shield size
