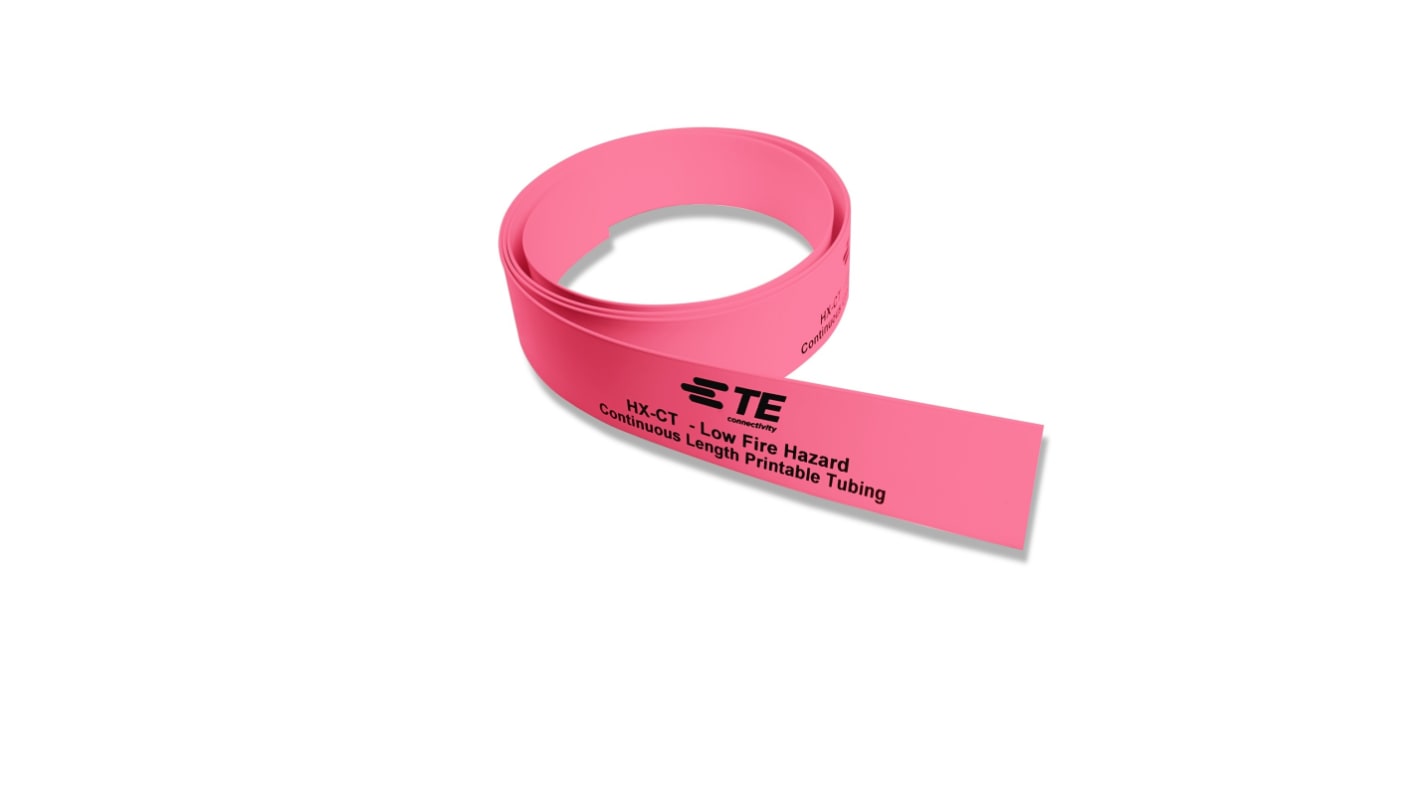

TE Connectivity Cross Linked Polyolefin Pink Cable Sleeve, 50m Length, HX-CT Series
- RS Stock No.:
- 271-2209
- Mfr. Part No.:
- ES0269-000
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 271-2209
- Mfr. Part No.:
- ES0269-000
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Colour | Pink | |
Material | Cross Linked Polyolefin | |
Sleeve Length | 50m | |
Braided | No | |
Expandable | No | |
Maximum Cable Diameter | 4.8mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +105°C | |
Fire Behaviour | Halogen Free | |
Standards Met | EN45545-2 HL2 - R22 & R23 | |
Shrink Ratio | 2:1 | |
Series | HX-CT | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Colour Pink | ||
Material Cross Linked Polyolefin | ||
Sleeve Length 50m | ||
Braided No | ||
Expandable No | ||
Maximum Cable Diameter 4.8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Fire Behaviour Halogen Free | ||
Standards Met EN45545-2 HL2 - R22 & R23 | ||
Shrink Ratio 2:1 | ||
Series HX-CT | ||
- COO (Country of Origin):
- CZ
HX-CT-50M-4.8-OUT-2
The TE Connectivity HX-CT identification marker sleeves is manufactured using a specially developed radiation cross-linked material. Formulated to give low fire hazard properties, which allow this product to be used in locations where fire may pose a risk to human life and property. HX-CT heat shrink tube, manufactured with e-beam technology that gives users the ability to shrink the supplied tube with no damage to material or printed text.
Zero halogen with low toxic fumes and low smoke
Self extinguishing and non-flame propagating
Excellent resistance to burning
Self extinguishing and non-flame propagating
Excellent resistance to burning
