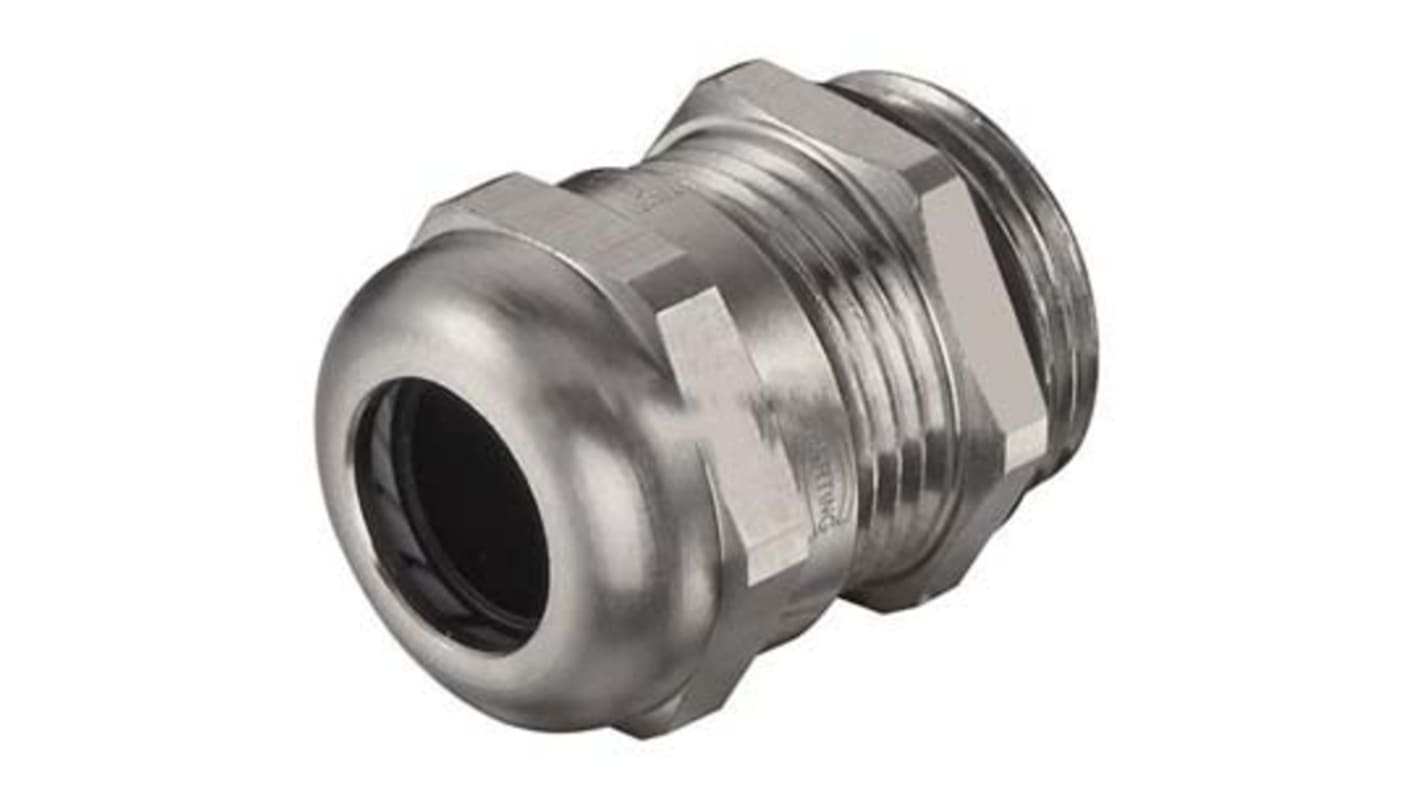

    HARTING Han CGM-M Series Metallic Metal Cable Gland, M25 Thread, 9mm Min, 16mm Max, IP68

    HARTING
    RS Stock No.:
    843-6306
    Mfr. Part No.:
    19 00 000 5090
    Brand:
    HARTING
    View all Cable Glands
    53 In stock - FREE next working day delivery available
    20 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £16.60

    (exc. VAT)

    £19.92

    (inc. VAT)

    UnitsPer unit
    1 - 14£16.60
    15 - 49£15.79
    50 +£15.27
    RS Stock No.:
    843-6306
    Mfr. Part No.:
    19 00 000 5090
    Brand:
    HARTING

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Harting Cable Glands


    From Harting, the CGM-M range of nickel plated brass cable glands for use with the Harting HAN series of industrial connectors. The waterproof cable gland’s NBR seal and Polyamide clamping ring provide an IP68 ingress rating ensuring complete sealing from dust and water. Rugged in construction the metal glands offer excellent cable retention and optimal strain relief when terminated with Harting HAN high and low construction hoods.

    With a choice of Metric and PG threads and a full range of cable clamping sizes in mm, the CGM-M glands provide an effective solution for multiple electrical and industrial cable entry applications.

    Features and Benefits


    • IP68/69 Ingress protection
    • Excellent water resistance
    • Fully sealed against dust
    • High quality nickel plated brass
    • NBR Seal and Polyamide clamping ring
    • Full range of metric and PG threads available
    • A wide range of cable diameters catered for
    • For use with Non-armoured cable

    Applications


    Robust in construction, CGM-M weatherproof cable glands are ideally suited to environments that demand high levels of mechanical and chemical stability. Some of the most common areas are:

    • Robotics and moving machines
    • Electrical panels and switch cabinets
    • Machine tool stations
    • Industrial automation
    • Conveyer belts
    • Power and utility plants

    Environment


    The HAN CGM-M cable glands are fully sealed and have an IP68/69 ingress protection rating. This means the metal glands are dust tight and are protected against the continuous effects of immersion in water. The CGM-M cable glands are ideal for harsher environments and outdoor applications.

    Note

    Cable diameters stated are in the form min/max.

    Specifications

    AttributeValue
    Thread SizeM25
    Maximum Cable Diameter16mm
    Minimum Cable Diameter9mm
    MaterialMetal
    ColourMetallic
    SeriesHan CGM-M
    IP RatingIP68
    Minimum Operating Temperature-40°C
    Maximum Operating Temperature+100°C
    Operating Temperature Range-40 → +100 °C
