Prysmian LSF-CW Series Steel Cable Gland Kit, M32 Thread, 23.5mm min., 33.5mm max., IP66

View all Cable Glands
Bulk discount available

Subtotal (1 kit)*

£30.13

(exc. VAT)

£36.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 16 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Kit(s)
Per Kit
1 - 4£30.13
5 - 9£28.63
10 +£27.11

*price indicative

RS Stock No.:
463-4433
Mfr. Part No.:
LSF32CW
Brand:
Prysmian
Find similar products by selecting one or more attributes.
Select all

Brand

Prysmian

Thread Size

M32

Maximum Cable Diameter

33.5mm

Minimum Cable Diameter

23.5mm

Material

Steel

Series

LSF-CW

IP Rating

IP66

Locknut Included

Yes

Fire Behaviour

Low Smoke Zero Halogen (LSZH)

Maximum Operating Temperature

+90°C

Minimum Operating Temperature

-20°C

Number of Pieces

9

Standards Met

CE

Number of Cores

1

Operating Temperature Range

-20 → +90 °C

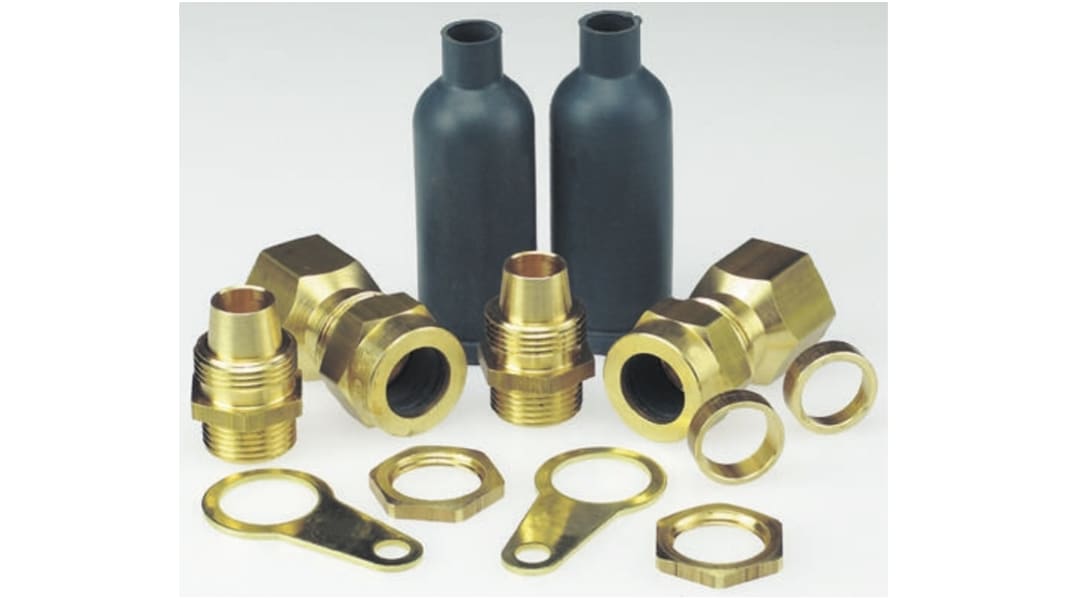

Kit Includes

Armour Ring, Earth Tag, Gland Barrel, Gland Body, Gland Nut, Lock Nuts, Seal, Shroud, Washer

RoHS Status: Exempt

COO (Country of Origin):
GB

Armoured CW Indoor/Outdoor (SWA) LSF Gland Kit


The LSF CW series of cable glands and accessories have low smoke, zero halogen properties and are suitable for both indoor and outdoor use. The glands can be used in a range of weather conditions with an outer seal that grips the cable sheath. The shroud complies with London Underground Ltd Engineering Standard E1042:A2 for fire safety performance. These glands provide clamping of the armour wires for electrical continuity and mechanical retention of the cable. The LSF kits include LSF shroud, CW gland, brass locknut and brass earth tag.


Features and benefits
• Zero Halogen Silicone seals and shrouds
• IP66 Rating
• Outer seal grips sheath of cable
• Separate armour locking ring
