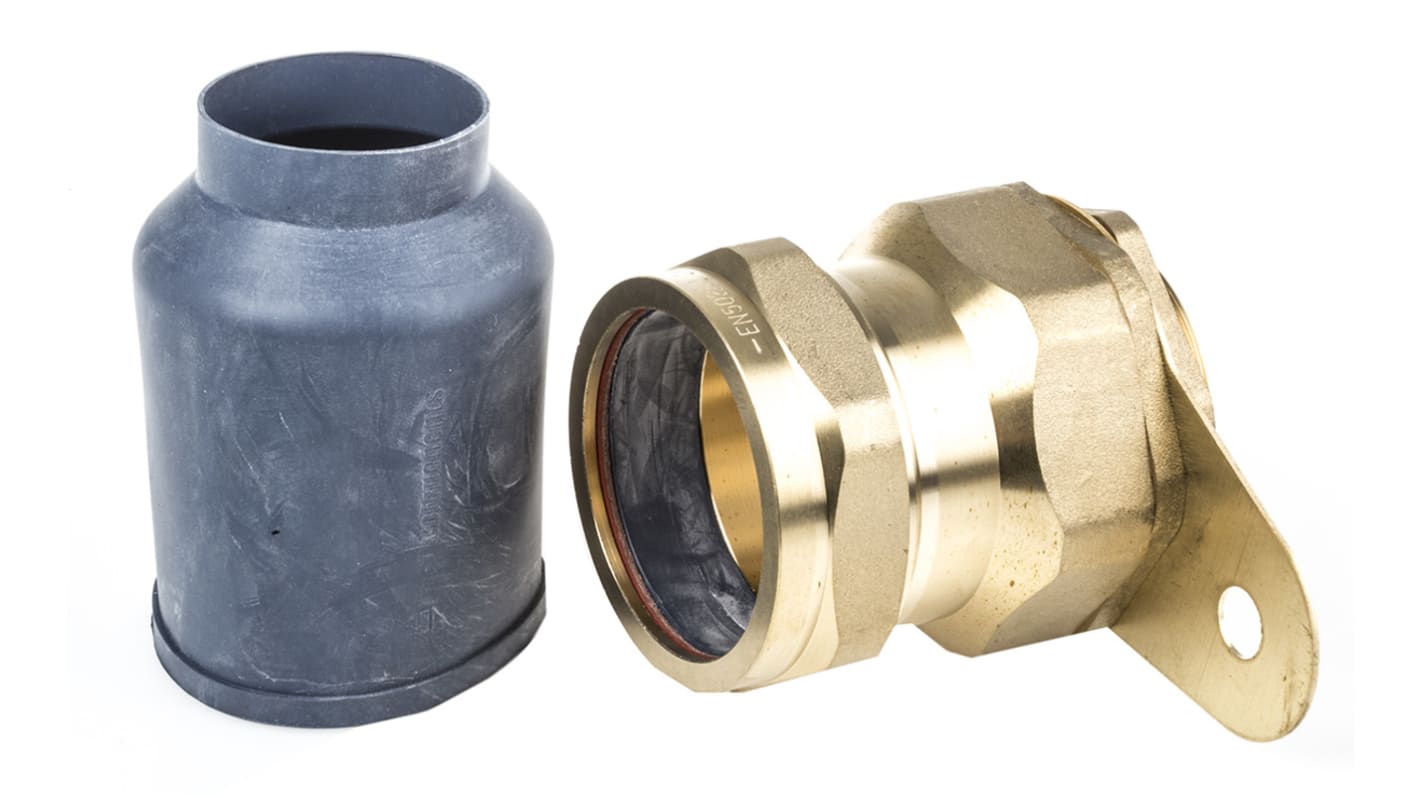

Prysmian LSF-CW Series Steel Cable Gland Kit, M63 Thread, 51.3mm min., 65.3mm max., IP66
- RS Stock No.:
- 463-4376
- Mfr. Part No.:
- LSF63CW
- Brand:
- Prysmian
Bulk discount available
Subtotal (1 kit)*
£99.55
(exc. VAT)
£119.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Kit(s) | Per Kit |
---|---|
1 - 4 | £99.55 |
5 - 9 | £94.56 |
10 + | £89.59 |
*price indicative
- RS Stock No.:
- 463-4376
- Mfr. Part No.:
- LSF63CW
- Brand:
- Prysmian
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Prysmian | |
Thread Size | M63 | |
Maximum Cable Diameter | 65.3mm | |
Minimum Cable Diameter | 51.3mm | |
Material | Steel | |
Series | LSF-CW | |
IP Rating | IP66 | |
Locknut Included | Yes | |
Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +90°C | |
Number of Pieces | 9 | |
Standards Met | CE | |
Number of Cores | 1 | |
Operating Temperature Range | -20 → +90 °C | |
Kit Includes | Armour Ring, Earth Tag, Gland Barrel, Gland Body, Gland Nut, Lock Nuts, Seal, Shroud, Washer | |
Select all | ||
---|---|---|
Brand Prysmian | ||
Thread Size M63 | ||
Maximum Cable Diameter 65.3mm | ||
Minimum Cable Diameter 51.3mm | ||
Material Steel | ||
Series LSF-CW | ||
IP Rating IP66 | ||
Locknut Included Yes | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +90°C | ||
Number of Pieces 9 | ||
Standards Met CE | ||
Number of Cores 1 | ||
Operating Temperature Range -20 → +90 °C | ||
Kit Includes Armour Ring, Earth Tag, Gland Barrel, Gland Body, Gland Nut, Lock Nuts, Seal, Shroud, Washer | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Armoured CW Indoor/Outdoor (SWA) LSF Gland Kit
The LSF CW series of cable glands and accessories have low smoke, zero halogen properties and are suitable for both indoor and outdoor use. The glands can be used in a range of weather conditions with an outer seal that grips the cable sheath. The shroud complies with London Underground Ltd Engineering Standard E1042:A2 for fire safety performance. These glands provide clamping of the armour wires for electrical continuity and mechanical retention of the cable. The LSF kits include LSF shroud, CW gland, brass locknut and brass earth tag.
Features and benefits
• Zero Halogen Silicone seals and shrouds
• IP66 Rating
• Outer seal grips sheath of cable
• Separate armour locking ring
