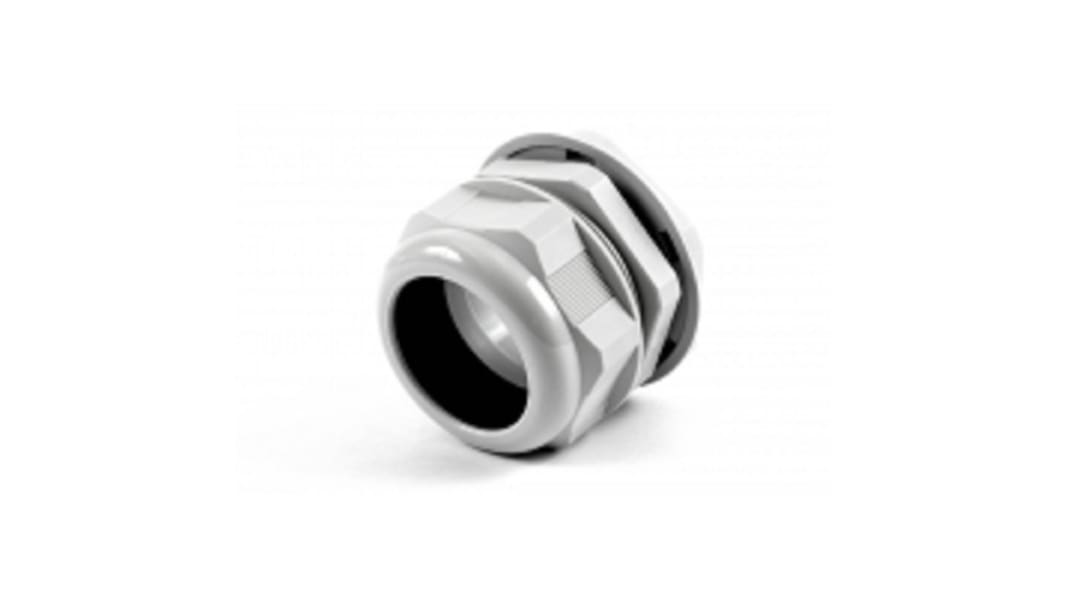

Hammond 1427NCG Series Grey Nylon Cable Gland, PG48 Thread, 37mm min., 44mm max., IP68
- RS Stock No.:
- 256-5649
- Mfr. Part No.:
- 1427NCGPG48G
- Brand:
- Hammond
Subtotal (1 unit)*
£12.77
(exc. VAT)
£15.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 28 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £12.77 |
*price indicative
- RS Stock No.:
- 256-5649
- Mfr. Part No.:
- 1427NCGPG48G
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hammond | |
Thread Size | PG48 | |
Maximum Cable Diameter | 44mm | |
Minimum Cable Diameter | 37mm | |
Material | Nylon | |
Colour | Grey | |
Series | 1427NCG | |
IP Rating | IP68 | |
Locknut Included | Yes | |
Select all | ||
---|---|---|
Brand Hammond | ||
Thread Size PG48 | ||
Maximum Cable Diameter 44mm | ||
Minimum Cable Diameter 37mm | ||
Material Nylon | ||
Colour Grey | ||
Series 1427NCG | ||
IP Rating IP68 | ||
Locknut Included Yes | ||
- COO (Country of Origin):
- CN
The Hammonds 1427NCG series of liquid-tight cordgrip which is made from nylon available in black & grey colors. It is used where cable is entering or leaving an enclosure. It accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal. The strain relief elements were used for tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
Nylon locknut and EPDM O-ring included
Operating temperature at static state is -40°C to 100°C
Outer length is 49 mm
Designed to meet NEMA
UL94-V2 flammability rating
Operating temperature at static state is -40°C to 100°C
Outer length is 49 mm
Designed to meet NEMA
UL94-V2 flammability rating
