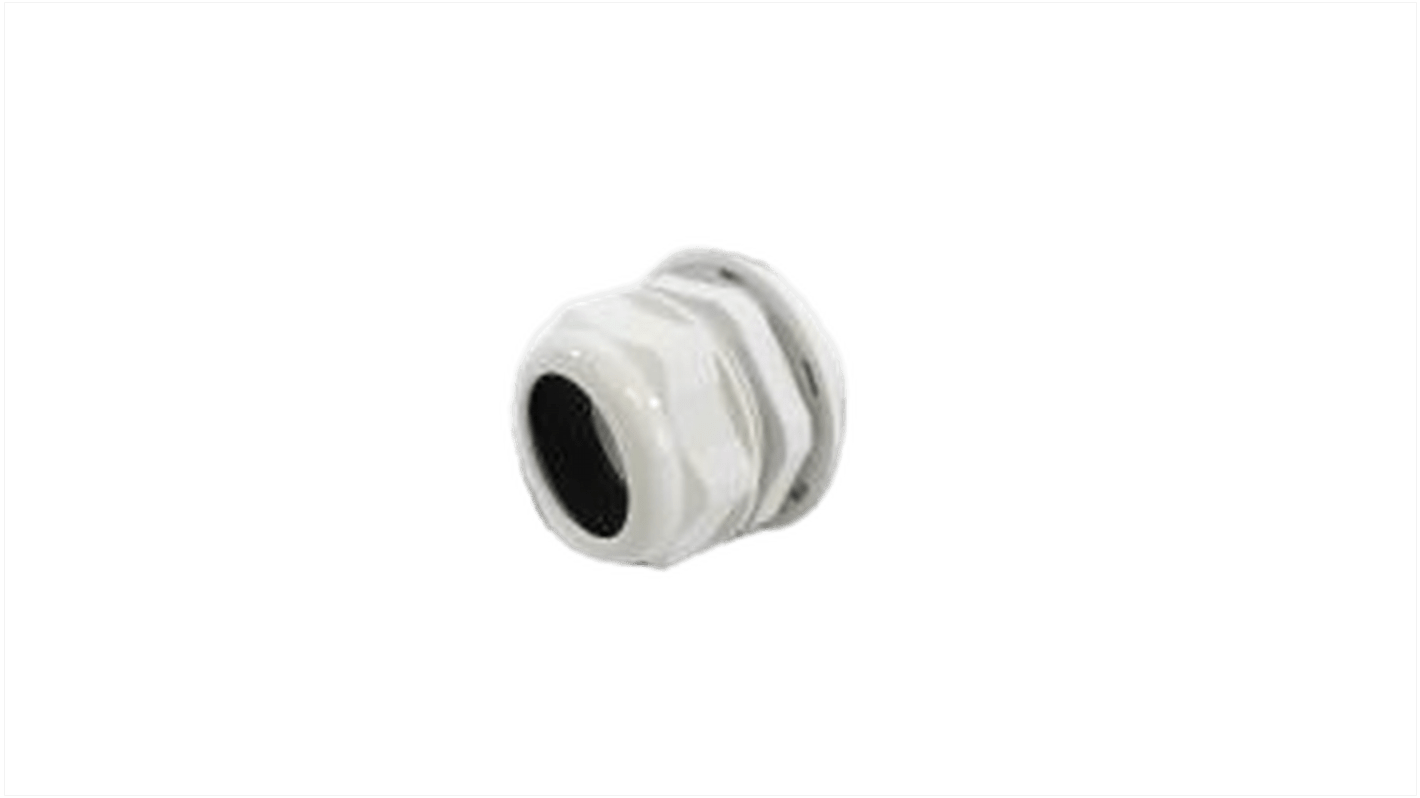

Hammond 1427NCG Series Grey Nylon Cable Gland, M63 Thread, 37mm Min, 44mm Max, IP68
- RS Stock No.:
- 256-5625
- Mfr. Part No.:
- 1427NCGM63G
- Brand:
- Hammond
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£12.40
(exc. VAT)
£14.88
(inc. VAT)
| Units | Per unit |
| 1 + | £12.40 |
- RS Stock No.:
- 256-5625
- Mfr. Part No.:
- 1427NCGM63G
- Brand:
- Hammond
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Hammonds 1427NCG series of liquid-tight cordgrip which is made from nylon available in black & grey colors. It is used where cable is entering or leaving an enclosure. It accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal. The strain relief elements were used for tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
Nylon locknut and EPDM O-ring included
Operating temperature at static state is -40°C to 100°C
Designed to meet NEMA
UL94-V2 flammability rating
Outer length is 49 mm
Operating temperature at static state is -40°C to 100°C
Designed to meet NEMA
UL94-V2 flammability rating
Outer length is 49 mm
Specifications
Attribute | Value |
|---|---|
| Thread Size | M63 |
| Maximum Cable Diameter | 44mm |
| Minimum Cable Diameter | 37mm |
| Material | Nylon |
| Colour | Grey |
| Series | 1427NCG |
| IP Rating | IP68 |
| Locknut Included | Yes |
