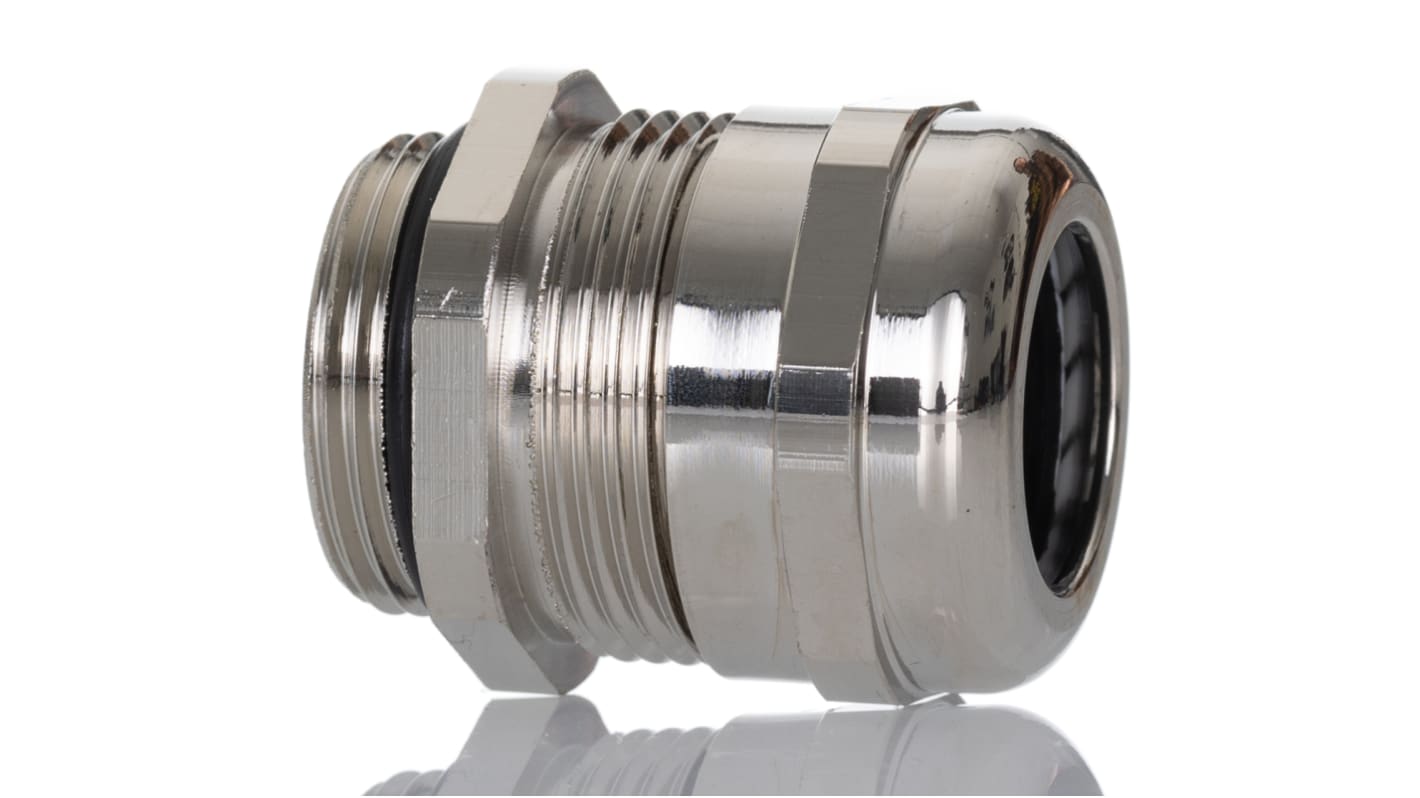

Molex 93600 Series Brass Cable Gland, M25 Thread, 11mm min., 18mm max., IP68
- RS Stock No.:
- 250-1805
- Mfr. Part No.:
- 936000026
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£7.41
(exc. VAT)
£8.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 06 February 2026
- Plus 200 unit(s) shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £7.41 |
10 - 99 | £7.17 |
100 - 249 | £6.87 |
250 - 499 | £6.57 |
500 + | £6.22 |
*price indicative
- RS Stock No.:
- 250-1805
- Mfr. Part No.:
- 936000026
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Thread Size | M25 | |
Maximum Cable Diameter | 18mm | |
Minimum Cable Diameter | 11mm | |
Material | Brass | |
Series | 93600 | |
IP Rating | IP68 | |
Locknut Included | No | |
Fire Behaviour | Halogen Free | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Number of Pieces | 1 | |
Standards Met | RoHS Compliant | |
Operating Temperature Range | -40 → +125 °C | |
Select all | ||
---|---|---|
Brand Molex | ||
Thread Size M25 | ||
Maximum Cable Diameter 18mm | ||
Minimum Cable Diameter 11mm | ||
Material Brass | ||
Series 93600 | ||
IP Rating IP68 | ||
Locknut Included No | ||
Fire Behaviour Halogen Free | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Number of Pieces 1 | ||
Standards Met RoHS Compliant | ||
Operating Temperature Range -40 → +125 °C | ||
- COO (Country of Origin):
- CN
Molex Series 93600 Cable Gland, IP68, Brass - 936000026
This reliable Molex cable gland, with an IP68 rating and M25x1.5 thread size is designed to securely seal cables with diameters ranging from 11.00mm to 18.00mm. The brass material ensures durability and the waterproof design offers protection in harsh environments.
Features & Benefits
• IP68 rating provides excellent protection against dust and water ingress
• Suitable for cable diameters between 11mm to 18mm
• Made of high-quality brass material for durability
• Thread size of M25x1.5 ensures a secure connection
• Waterproof and dustproof to withstand challenging conditions
• Flammability rating of UL 94V-0 for safety
• Nickel plating enhances corrosion resistance
• Suitable for cable diameters between 11mm to 18mm
• Made of high-quality brass material for durability
• Thread size of M25x1.5 ensures a secure connection
• Waterproof and dustproof to withstand challenging conditions
• Flammability rating of UL 94V-0 for safety
• Nickel plating enhances corrosion resistance
Applications
• Ideal for industrial connectors and enclosures
• Suitable for heavy-duty applications requiring IP68 protection
• Can be used in harsh environments where waterproofing is crucial
• Suitable for heavy-duty applications requiring IP68 protection
• Can be used in harsh environments where waterproofing is crucial
Can it withstand extreme temperatures?
Yes, the Molex Cable Gland can operate in temperatures ranging from -40°C to +125°C.
Will it fit cables within a specific diameter range?
It is designed to accommodate cables ranging from 11.00mm to 18.00mm in diameter.
Is this Cable Gland easy to install?
Yes, the Molex Cable Gland is user-friendly and can be easily installed for various applications.
