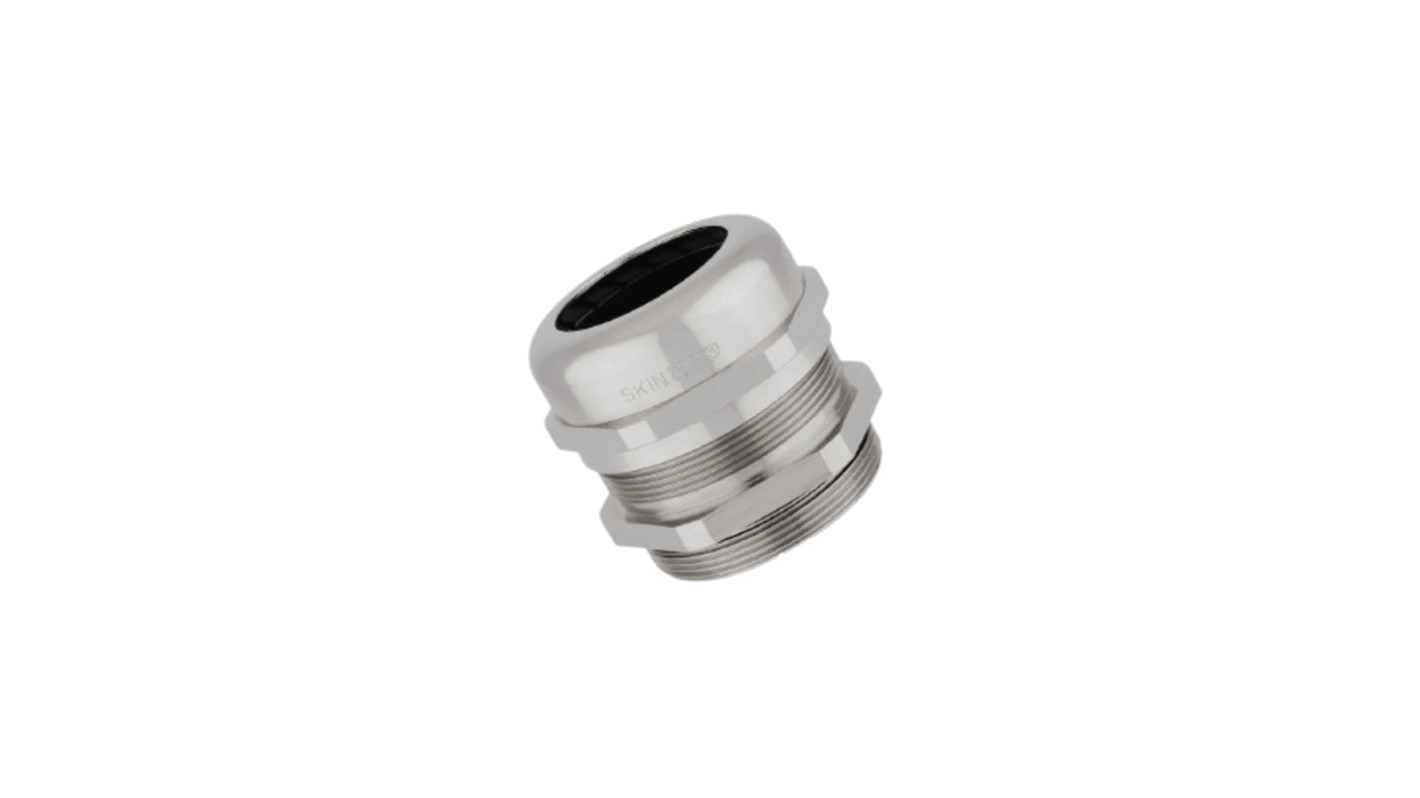

Lapp SKINTOP Series Metallic Nickel Plated Brass Cable Gland, PG29 Thread, 16mm min., 25mm max., IP68
- RS Stock No.:
- 212-7674
- Mfr. Part No.:
- 52015760+52003550
- Brand:
- Lapp
Bulk discount available
Subtotal (1 pack of 5 units)*
£118.87
(exc. VAT)
£142.645
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £23.774 | £118.87 |
25 - 45 | £22.564 | £112.82 |
50 + | £21.376 | £106.88 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£37.574
(exc. VAT)
£45.089
(inc. VAT)
- RS Stock No.:
- 212-7674
- Mfr. Part No.:
- 52015760+52003550
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Thread Size | PG29 | |
Maximum Cable Diameter | 25mm | |
Minimum Cable Diameter | 16mm | |
Material | Nickel Plated Brass | |
Colour | Metallic | |
Series | SKINTOP | |
IP Rating | IP68 | |
Locknut Included | Yes | |
Maximum Operating Temperature | +100°C | |
Minimum Operating Temperature | -40°C | |
Number of Pieces | 25 | |
Standards Met | CE, RoHS Compliant | |
Operating Temperature Range | -40 → +100 °C | |
Kit Includes | Cable Gland | |
Reference | SKINDICHT MS | |
Select all | ||
---|---|---|
Brand Lapp | ||
Thread Size PG29 | ||
Maximum Cable Diameter 25mm | ||
Minimum Cable Diameter 16mm | ||
Material Nickel Plated Brass | ||
Colour Metallic | ||
Series SKINTOP | ||
IP Rating IP68 | ||
Locknut Included Yes | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -40°C | ||
Number of Pieces 25 | ||
Standards Met CE, RoHS Compliant | ||
Operating Temperature Range -40 → +100 °C | ||
Kit Includes Cable Gland | ||
Reference SKINDICHT MS | ||
- COO (Country of Origin):
- DE
LAPP SKINTOP Series Cable Gland, 25mm Maximum Cable Diameter, Nickel Plated Brass - 52015760+52003550
This cable gland is designed for industrial applications, particularly in the automation, electronics, and electrical sectors. Constructed from durable nickel-plated brass, it effectively withstands extreme temperatures ranging from -40°C to +100°C, ensuring reliable performance even under challenging conditions. The IP68 rating guarantees a high level of ingress protection, making it suitable for environments where moisture and dust are a concern.
Features & Benefits
• Robust nickel-plated brass material enhances durability
• IP68 rating ensures water and dust resistance
• Supports cable diameters from 16mm to 25mm
• Inclusion of a locknut simplifies installation and secure fastening
• Wide temperature range for various applications
• CE and RoHS compliant for environmental safety
• IP68 rating ensures water and dust resistance
• Supports cable diameters from 16mm to 25mm
• Inclusion of a locknut simplifies installation and secure fastening
• Wide temperature range for various applications
• CE and RoHS compliant for environmental safety
Applications
• Suitable for machine manufacturing and equipment assembly
• Ideal for use in measuring and controlling devices
• Appropriate for pharmaceutical and medical equipment installations
• Utilised in environments requiring moisture and dust ingress protection
• Ideal for use in measuring and controlling devices
• Appropriate for pharmaceutical and medical equipment installations
• Utilised in environments requiring moisture and dust ingress protection
What is the significance of the IP68 rating in this product?
The IP68 rating indicates the product's ability to resist water and dust ingress, ensuring reliable operation in harsh environments, withstanding submersion at depths of up to 5 metres.
How does the locknut contribute to the installation process?
The included locknut ensures that the gland remains securely tightened during operation, preventing any loosening due to vibrations or movement in the installed environment.
What range of cable diameters can be accommodated with this gland?
This gland accommodates cables with a minimum diameter of 16mm and a maximum of 25mm, making it versatile for various cable types.
