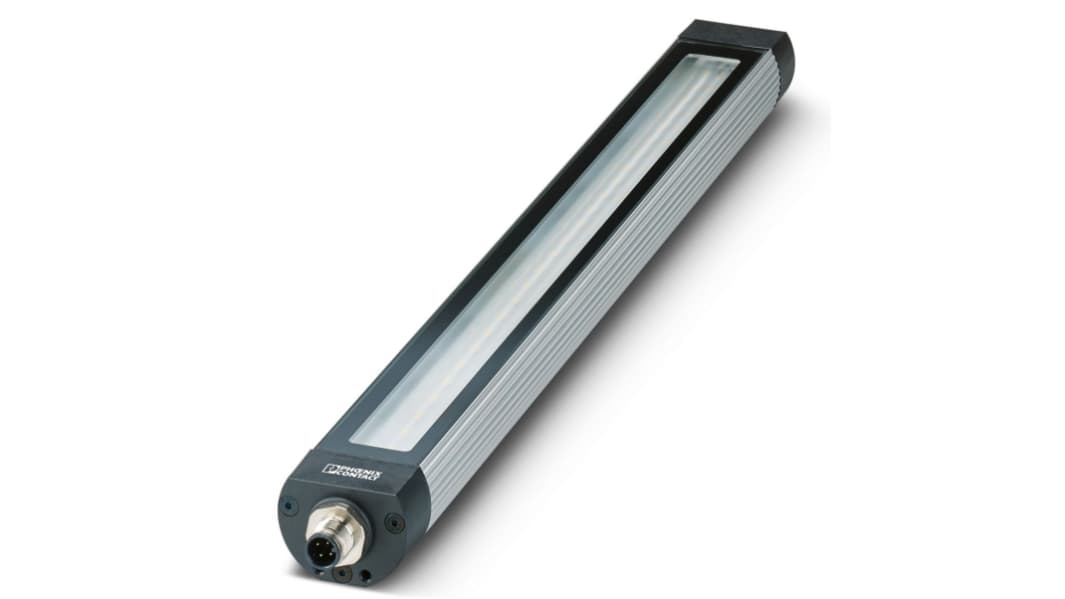

Phoenix Contact PLD M Series LED Cabinet Light, 24V dc, 365 mm Length, 10.5 W, 5000k
- RS Stock No.:
- 239-5128
- Mfr. Part No.:
- 2702939
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£306.40
(exc. VAT)
£367.68
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £306.40 |
*price indicative
- RS Stock No.:
- 239-5128
- Mfr. Part No.:
- 2702939
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Cabinet Light | |
| Lamp Type | LED | |
| Sub Type | Cabinet Light | |
| Luminous Flux | 1120lm | |
| Voltage | 24V dc | |
| Housing Material | Die Cast Aluminium | |
| Length | 365mm | |
| Luminous Efficacy | 120Lm/W | |
| Power | 10.5W | |
| Colour Temperature | 5000k | |
| Minimum Operating Temperature | -20°C | |
| Lifespan | 20000h | |
| Maximum Operating Temperature | 45°C | |
| Colour | Neutral White | |
| Standards/Approvals | IEC, RoHS | |
| Diameter | 40mm | |
| Width | 40mm | |
| Depth | 40mm | |
| Dimmable | Yes | |
| Lamp Supplied | Yes | |
| Anti-corrosive | Yes | |
| Series | PLD M | |
| Diffuser Finish | Transparent | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Cabinet Light | ||
Lamp Type LED | ||
Sub Type Cabinet Light | ||
Luminous Flux 1120lm | ||
Voltage 24V dc | ||
Housing Material Die Cast Aluminium | ||
Length 365mm | ||
Luminous Efficacy 120Lm/W | ||
Power 10.5W | ||
Colour Temperature 5000k | ||
Minimum Operating Temperature -20°C | ||
Lifespan 20000h | ||
Maximum Operating Temperature 45°C | ||
Colour Neutral White | ||
Standards/Approvals IEC, RoHS | ||
Diameter 40mm | ||
Width 40mm | ||
Depth 40mm | ||
Dimmable Yes | ||
Lamp Supplied Yes | ||
Anti-corrosive Yes | ||
Series PLD M | ||
Diffuser Finish Transparent | ||
The Phoenix Contact LED machine light is designed to provide illumination inside or on machinery. You can use the light in harsh environments. It has high degree of protection. LED light has 24VDC supply voltage with emission angle 40 °/80 °. The small diameter of just 40 mm enables mounting even where space is at a premium. Mounting is by means of holders or brackets (neither of which are supplied as standard) in which the light can swivel and the lighting can therefore be optimally aligned.
Resistance to common cooling agents and lubricants
Resistance to vibrations and shock
Space saving, thanks to the small diameter
Plug-in supply line enables free choice of the cable length as well as quick and easy installation
Focused illumination, thank
