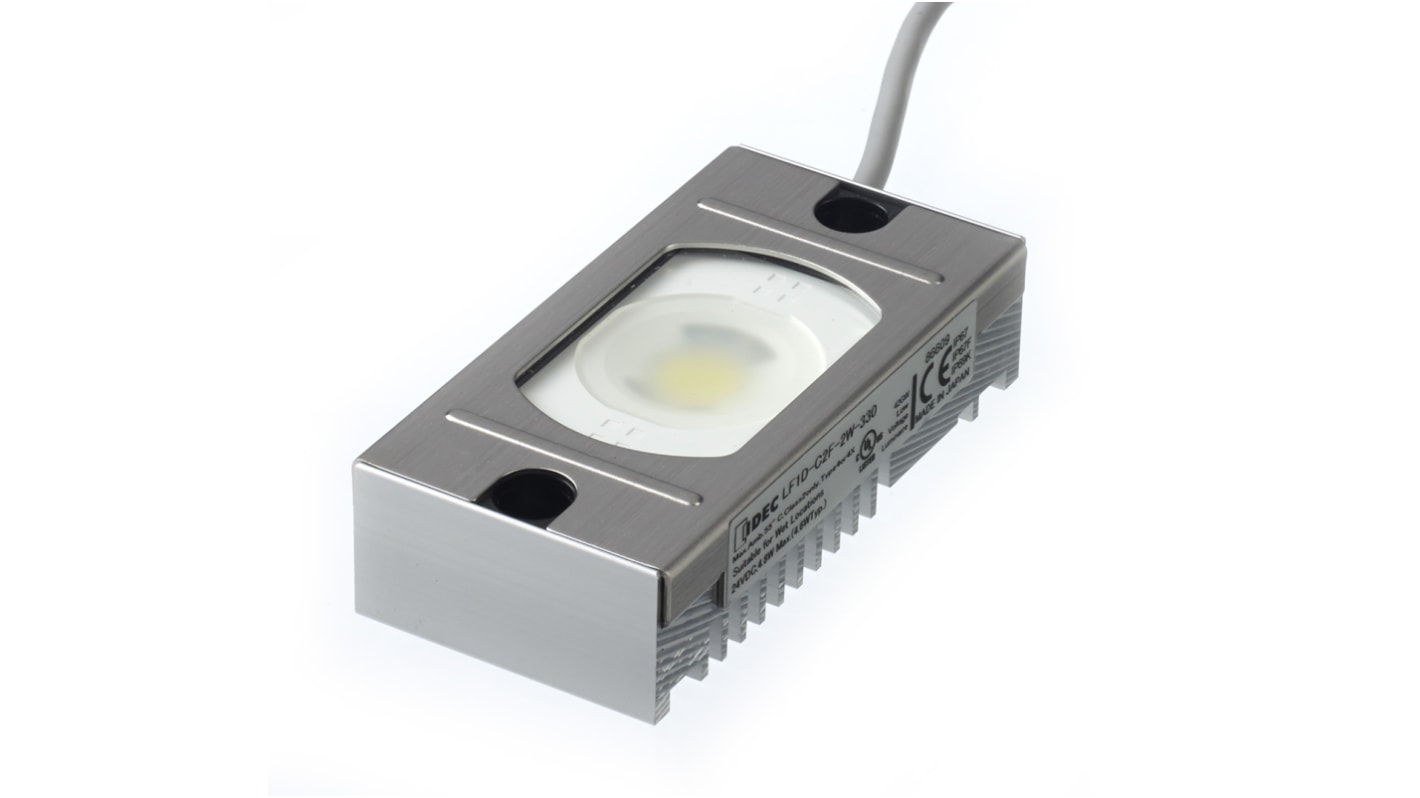

Idec LF1D-C2F-2W-330 Series LED Cabinet Light, 24V dc, 100 mm Length, 4.6 W, 5700K
- RS Stock No.:
- 182-4244
- Distrelec Article No.:
- 301-02-525
- Mfr. Part No.:
- LF1D-C2F-2W-330
- Brand:
- Idec
Subtotal (1 unit)*
£248.90
(exc. VAT)
£298.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 16 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £248.90 |
*price indicative
- RS Stock No.:
- 182-4244
- Distrelec Article No.:
- 301-02-525
- Mfr. Part No.:
- LF1D-C2F-2W-330
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Product Type | Cabinet Light | |
| Lamp Type | LED | |
| Sub Type | Cabinet Light | |
| Luminous Flux | 840lm | |
| Housing Material | Die Cast Aluminium | |
| Voltage | 24V dc | |
| Length | 100mm | |
| IP Rating | IP69K | |
| Power | 4.6W | |
| Colour Temperature | 5700K | |
| Minimum Operating Temperature | -30°C | |
| Lifespan | 50000h | |
| Maximum Operating Temperature | 55°C | |
| Colour | White | |
| Depth | 25mm | |
| Standards/Approvals | RoHS Compliant | |
| Diameter | 25mm | |
| Width | 50mm | |
| Lamp Supplied | Yes | |
| Series | LF1D-C2F-2W-330 | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Product Type Cabinet Light | ||
Lamp Type LED | ||
Sub Type Cabinet Light | ||
Luminous Flux 840lm | ||
Housing Material Die Cast Aluminium | ||
Voltage 24V dc | ||
Length 100mm | ||
IP Rating IP69K | ||
Power 4.6W | ||
Colour Temperature 5700K | ||
Minimum Operating Temperature -30°C | ||
Lifespan 50000h | ||
Maximum Operating Temperature 55°C | ||
Colour White | ||
Depth 25mm | ||
Standards/Approvals RoHS Compliant | ||
Diameter 25mm | ||
Width 50mm | ||
Lamp Supplied Yes | ||
Series LF1D-C2F-2W-330 | ||
- COO (Country of Origin):
- JP
With their rugged construction LF1D series are ideal for machine tools, automated label and package inspection equipment, and food and beverage processing equipment. The design provides equally brilliant light at the center or edges of the units. The LF1D can be used where high pressure and high temperature wash downs are used.
Brightness:
Slim: 66.6 Lumens/Watt
Wide: 67.2 Lumens/Watt
Life: 70% of initial luminance at 50,000 Hrs
