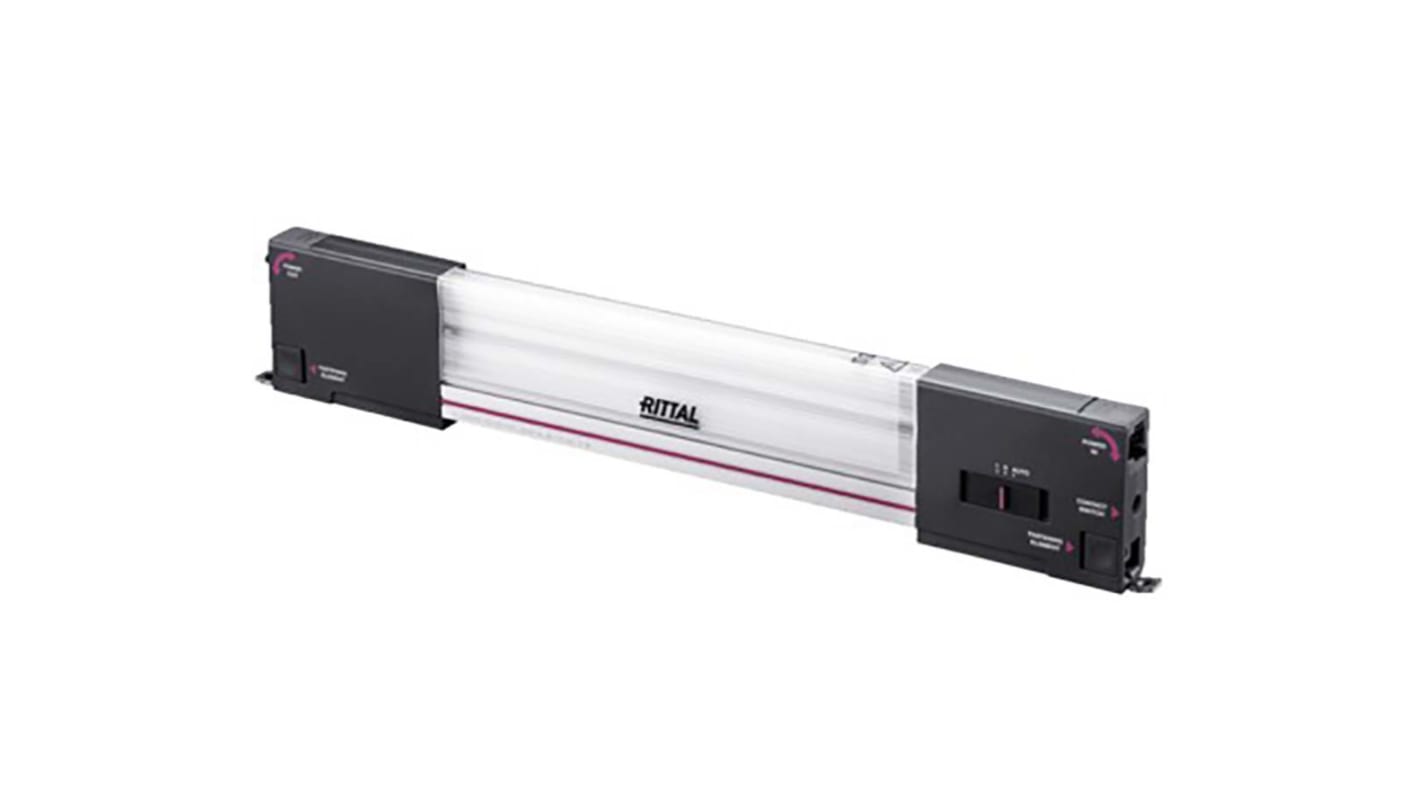

Rittal SZ 2500.220 Series LED Cabinet Light, 24V dc, 437 mm Length, 11 W, 4000k

RS Stock No.:: 187-6726
Mfr. Part No.:: 2500220
Brand:: Rittal

Rittal SZ 2500.220 Series LED Cabinet Light, 24V dc, 437 mm Length, 11 W, 4000k

Subtotal (1 unit)*

£136.14

(exc. VAT)

£163.37

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 14 unit(s) shipping from 27 April 2026
Plus 3 unit(s) shipping from 27 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£136.14

*price indicative

RS Stock No.:: 187-6726
Mfr. Part No.:: 2500220
Brand:: Rittal

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rittal
	Product Type	Cabinet Light
	Lamp Type	LED
	Sub Type	Cabinet Light
	Luminous Flux	900lm
	Housing Material	Aluminium
	Voltage	24V dc
	Length	437mm
	Power	11W
	IP Rating	IP20
	Minimum Operating Temperature	-20°C
	Colour Temperature	4000k
	Maximum Operating Temperature	55°C
	Standards/Approvals	CQC, CSA, UL + C-UL, EAC, ENEC
	Width	23mm
	Colour	Neutral White
	Depth	75mm
	Diameter	75mm
	Series	SZ 2500.220
	Lamp Supplied	Yes

	Select all
	Brand Rittal
	Product Type Cabinet Light
	Lamp Type LED
	Sub Type Cabinet Light
	Luminous Flux 900lm
	Housing Material Aluminium
	Voltage 24V dc
	Length 437mm
	Power 11W
	IP Rating IP20
	Minimum Operating Temperature -20°C
	Colour Temperature 4000k
	Maximum Operating Temperature 55°C
	Standards/Approvals CQC, CSA, UL + C-UL, EAC, ENEC
	Width 23mm
	Colour Neutral White
	Depth 75mm
	Diameter 75mm
	Series SZ 2500.220
	Lamp Supplied Yes

COO (Country of Origin):: RO

Rittal Cabinet Light, 900 Lumen Light Output, 24V DC Operating Voltage - SZ Series - 2500220

Brighten up the interior of your industrial enclosure with this cabinet light from Rittal. Its white LED lamp gives off a bright light, so you'll be able to easily see into all corners of your storage box. For extra safety, the unit's cover and ends are halogen-free so that they won't give off any toxic fumes in the event of a fire. A light weight of 0.54kg makes for easy handling as you go about installing this device in your enclosure or rack.

Features & Benefits

• PC cover resists impact and wear

• Comes with assembly screws for simple installation

• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size

• Low power consumption of 11W for energy efficiency

Applications

• IT networks

• Electronics

• Automotive manufacturing

Can I adjust the angle of this light?

Yes, this product has a 90° rotating connector, so you can tilt it in the direction you need.
