Panasonic CR2354 Button Battery, 3V, 23mm Diameter

CR Series Lithium coin button batteries from Panasonic. These batteries are available in a variety of different sizes and capacity options to suit your application. These non-rechargeable batteries are ideal for smaller electronic devices and have a longer lasting life than alkaline equivalents. These batteries are small, round and slim and are normally used on their own but with their less self-discharge they are able to hold their charge for a longer period of time.

• These CR batteries feature lithium chemistry, which has a high energy density.
• Non-Rechargeable
• Wide operating temperature range
• The self-discharge on this range of coin cells is low, giving them an excellent shelf life
• Resistant to vibration, shock and acceleration
• They have excellent reliability and a high capacity
• The batteries with PCB pins have a vertical or horizontal orientation

Lithium coin batteries are used in electronic devices that require a small, compact source of power. Example applications include:
• Calculators
• Car keys
• Toys
• Cameras / film equipment
• Watches
• Hearing aids

• Always install the batteries correctly as per instruction
• Ensure that the contact points are clean and conductive
• Do not mix different types of battery
• Do not heat or attempt to recharge the battery
• Do not dispose of in a fire

Coin batteries must be kept out of reach of children. Consult a doctor immediately if swallowed.

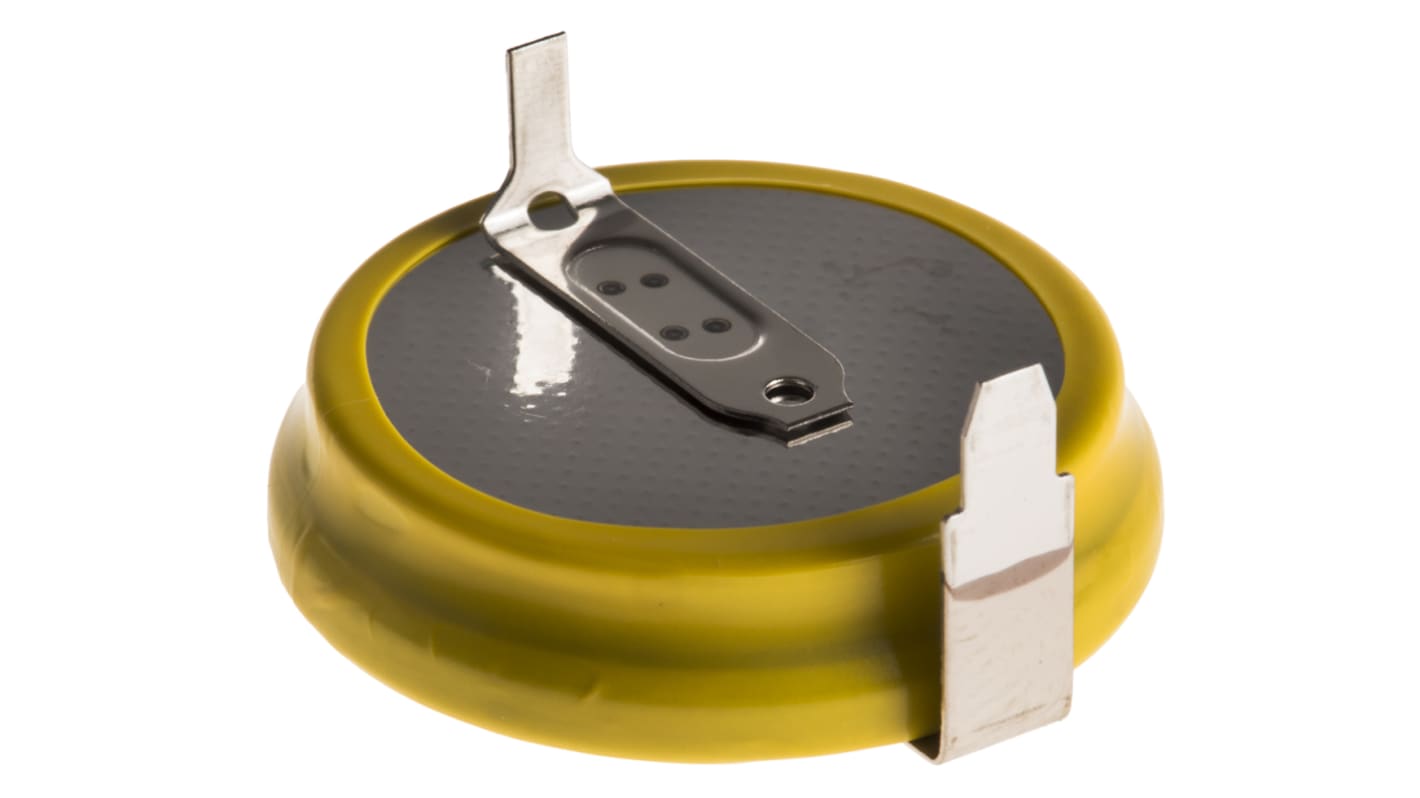

This CR2354 button battery from Panasonic features a nominal voltage of 3 V with a 560 mAh capacity. This lithium manganese dioxide button battery has a 23 mm diameter and a height of 5.4 mm. The PCB pin terminals of the CR2025 button battery allow you to install it into a circuit board. This battery requires horizontal orientation when installed.

Coin & Button Cells, Lithium

All cells in this range have a voltage of 3V.
