    Panasonic CR2032 Button Battery, 3V, 20mm Diameter

    RS Stock No.:
    513-2871
    Mfr. Part No.:
    CR-2032/HFN
    Brand:
    Panasonic
    Panasonic
    View all Button Batteries
    3661 In stock - FREE next working day delivery available
    139 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £1.52

    (exc. VAT)

    £1.82

    (inc. VAT)

    UnitsPer unit
    1 - 9£1.52
    10 - 49£1.48
    50 - 99£1.45
    100 - 499£1.40
    500 +£1.37
    RS Stock No.:
    513-2871
    Mfr. Part No.:
    CR-2032/HFN
    Brand:
    Panasonic

    RoHS Status: Not Applicable

    Legislation and Compliance

    RoHS Status: Not Applicable


    Product Details

    Panasonic CR Lithium Button Batteries


    CR Series Lithium coin button batteries from Panasonic. These batteries are available in a variety of different sizes and capacity options to suit your application. These non-rechargeable batteries are ideal for smaller electronic devices and have a longer lasting life than alkaline equivalents. These batteries are small, round and slim and are normally used on their own but with their less self-discharge they are able to hold their charge for a longer period of time.


    Features and benefits:


    • These CR batteries feature lithium chemistry, which has a high energy density.
    • Non-Rechargeable
    • Wide operating temperature range
    • The self-discharge on this range of coin cells is low, giving them an excellent shelf life
    • Resistant to vibration, shock and acceleration
    • They have excellent reliability and a high capacity
    • The batteries with PCB pins have a vertical or horizontal orientation


    Typical Applications


    Lithium coin batteries are used in electronic devices that require a small, compact source of power. Example applications include:
    • Calculators
    • Car keys
    • Toys
    • Cameras / film equipment
    • Watches
    • Hearing aids


    Guidance


    • Always install the batteries correctly as per instruction
    • Ensure that the contact points are clean and conductive
    • Do not mix different types of battery
    • Do not heat or attempt to recharge the battery
    • Do not dispose of in a fire


    Warning

    Coin batteries must be kept out of reach of children. Consult a doctor immediately if swallowed.

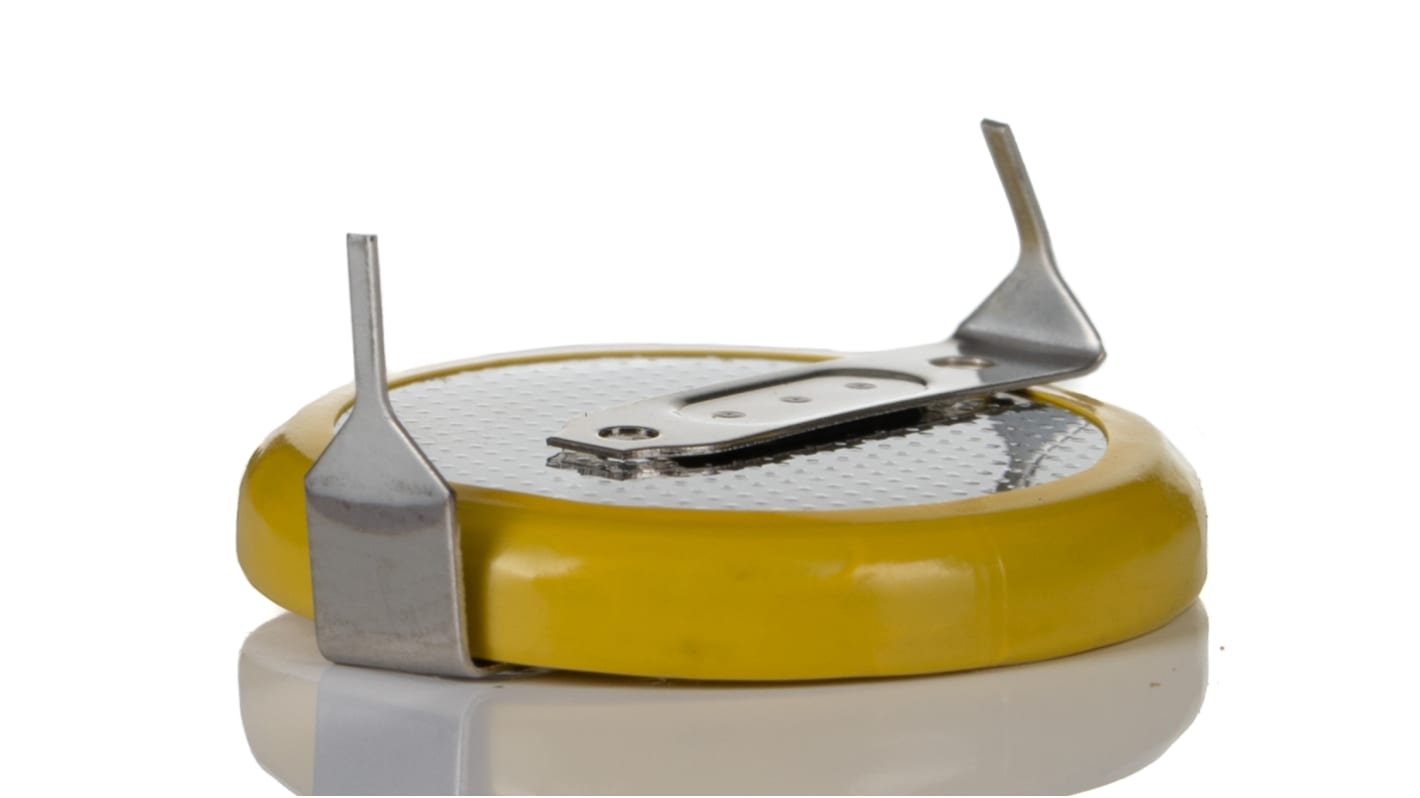

    This CR2032 button battery from Panasonic features a nominal voltage of 3 V with a 225 mAh capacity. This lithium manganese dioxide button battery has a 20 mm diameter and a height of 3.2 mm. The PCB pin terminals of the CR2330 button battery allow you to install it into a circuit board. This battery requires horizontal orientation when installed.



    Coin & Button Cells, Lithium


    All cells in this range have a voltage of 3V.


    Specifications

    AttributeValue
    Model NumberCR2032
    SizeCR2032
    ChemistryLithium Manganese Dioxide
    Nominal Voltage3V
    Capacity225mAh
    Terminal TypePCB Pin
    Diameter20mm
    Dimensions20 x 3.2mm
    SeriesCR
